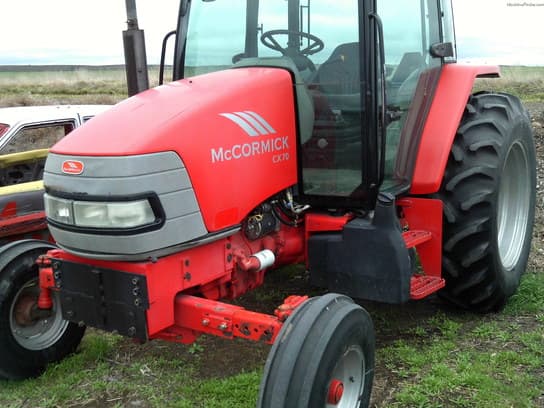

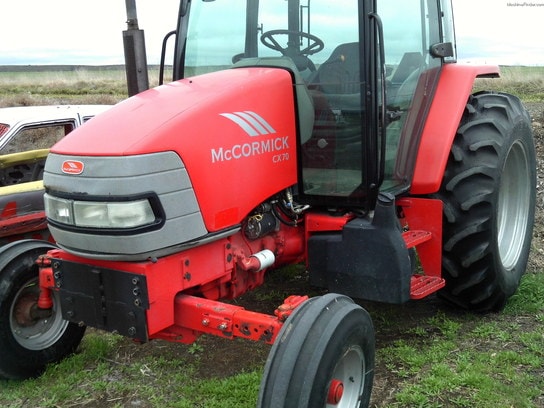

McCormick Intl CX70

Last Updated: September 2024

Overview

The McCormick Intl CX70 is a utility tractor built for everyday farm work. It has a 2WD chassis with power steering, making it easy to handle. The tractor uses a Perkins diesel engine with 4 cylinders and 73 hp. This engine power is above average compared to other tractors. The CX70 has a liquid-cooled system to keep the engine running smoothly.

This tractor has a special transmission with 16 forward gears and 8 reverse gears. It uses a sync shuttle and two-speed power shift, which helps change speeds easily. The CX70 is quite big, measuring 165.7 inches long and 77.3 inches wide. It weighs 7,242 pounds, which is above average for tractors like this. The tractor has an open center hydraulic system and starts with an electric starter. Both front and rear tires are made for farm use. Overall, the McCormick Intl CX70 is a strong, reliable tractor for many farm tasks.
Show more...

Key Specifications

Category: Utility

Power Output: 73 hp (54.4 kW)

Transmission: Sync shuttle / Two-speed power shift

Drive Type: 2WD

Operating Weight: 7242 lb (3285 kg)

Fuel Type: Diesel

McCormick Intl CX70 vs. Similar Tractors

Power Output

The Power Output for the McCormick Intl CX70 is Average. It is greater than 67% of similar Utility tractors in our database.

Horsepower distribution of Utility tractors

(across 4.7K+ tractors in our database)

Operating Weight

The Operating Weight for the McCormick Intl CX70 is Above Average. It is greater than 71% of similar Utility tractors in our database.

Operating weight distribution of Utility tractors

(across 4.4K+ tractors in our database)

Engine Displacement

The Engine Displacement for the McCormick Intl CX70 is Above Average. It is greater than 75% of similar Utility tractors in our database.

Engine displacement distribution of Utility tractors

(across 1K+ tractors in our database)

Engine Rated RPM

The Engine Rated RPM for the McCormick Intl CX70 is Below Average. It is greater than 28% of similar Utility tractors in our database.

Engine rated RPM distribution of Utility tractors

(across 1K+ tractors in our database)

Technical Specifications

Engine

Manufacturer
Perkins
Cooling Type
Liquid-cooled
Fuel Type
Diesel
Cylinders
4
Displacement
256 ci (4.2 L)
Bore
4.06 in (103.0 mm)
Stroke
5.00 in (127.0 mm)
Rated RPM
2200
Power Output
73 hp (54.4 kW)

Transmission

Type
Sync shuttle / Two-speed power shift
Forward Gears
16
Reverse Gears
8

Drivetrain

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Power
