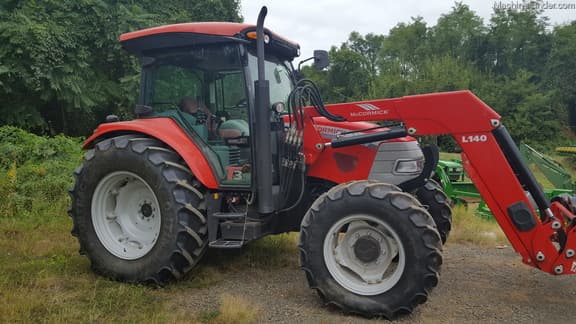

McCormick Intl CX110

Last Updated: June 2024

Overview

The McCormick Intl CX110 is a utility tractor designed for versatility in a variety of farming tasks. This tractor is equipped with a 4x4 MFWD 4WD chassis, which enhances traction and performance in different terrain conditions. Power steering ensures maneuverability, while a 24-speed power shuttle transmission provides a range of speed options for diverse agricultural needs. The Perkins 1104D-44TA engine offers 102 horsepower, which is turbocharged and liquid-cooled, ensuring robust operation for demanding work. The tractor's operating weight is approximately 9,193.3 pounds, with a notable height of 107.8 inches when equipped with a cab. Although it features a three-point hitch system with Category II type, specific information on hitch lift capacity and PTO details are not provided. The McCormick CX110 is expected to have a decent turn of pace with sound fuel efficiency, ideal for medium-scale tasks on the farm.
Show more...

Key Specifications

Category: Utility

Power Output: 102

Transmission: Power shuttle

Drive Type: 4WD

Operating Weight: 9193.3

Fuel Type: Diesel

McCormick Intl CX110 vs. Similar Tractors

Power Output
Above Average
Greater than 82% of similar tractors.
Operating Weight
Average
Greater than 61% of similar tractors.

Technical Specifications

Engine

Manufacturer
Perkins
Model
1104D-44TA
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
4
Displacement (ci)
268
Bore (in)
4.134
Stroke (in)
5
Rated RPM
-
Power Output (hp)
102

Transmission

Type
Power shuttle
Forward Gears
24
Reverse Gears
24
Total Gears
-

Dimensions

Length (in)
170.2
Width (in)
92.3
Height (in)
107.8
Operating Weight (lb)
9193.3

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
Category II
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Cab
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
