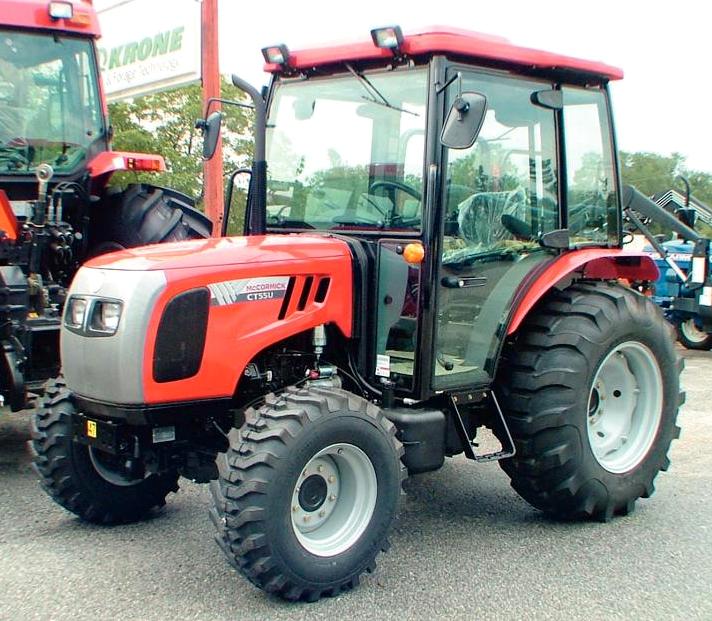

McCormick Intl CT55U

Last Updated: June 2024

Overview

The McCormick Intl CT55U is a compact utility tractor that features a robust and reliable Mitsubishi 4-cylinder diesel engine. With a power output of 47 hp and a displacement of 153 cubic inches, the CT55U is well-suited for a variety of tasks on the farm or worksite. It comes with a hydrostatic power steering system and a four-wheel drive (4WD) chassis, making it flexible and easy to handle in different terrains. The tractor has a significant ground clearance of 14 inches and a wheelbase of 74 inches, providing stability for various operations. The operator station is equipped with ROPS (Roll-Over Protective Structure) for added safety. Industrial tires are fitted to handle tough ground conditions. Transmission details are noted to provide 16 forward and reverse speeds, though the specific type of transmission has not been disclosed. Overall, the CT55U combines versatility and practicality for a range of compact utility tractor applications.
Show more...

Key Specifications

Category: Utility

Power Output: 47

Drive Type: 4WD

Operating Weight: 5005

Fuel Type: Diesel

McCormick Intl CT55U vs. Similar Tractors

Power Output
Average
Greater than 45% of similar tractors.
Operating Weight
Average
Greater than 43% of similar tractors.

Technical Specifications

Engine

Manufacturer
Mitsubishi
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
4
Displacement (ci)
153
Bore (in)
3.5
Stroke (in)
4.1
Rated RPM
2600
Power Output (hp)
47

Transmission

Type
-
Forward Gears
16
Reverse Gears
16
Total Gears
16

Dimensions

Length (in)
125
Width (in)
65.7
Height (in)
94.4
Operating Weight (lb)
5005

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Industrial
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
ROPS
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
