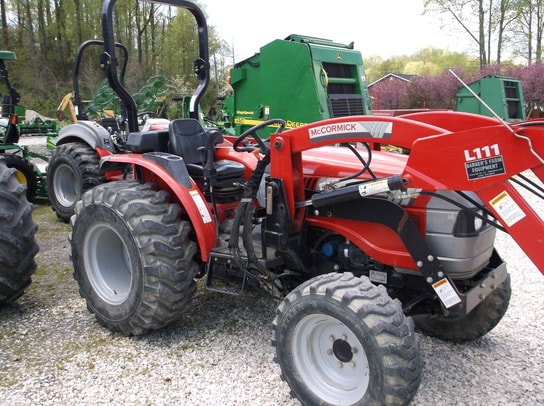

McCormick Intl CT47

Last Updated: June 2024

Overview

The McCormick Intl CT47 is a versatile compact utility tractor designed for a variety of tasks in smaller farming operations. It features a four-wheel drive chassis (4x4 MFWD 4WD) with a choice of transmission systems: a 16-speed synchro shuttle, an infinite (hydrostatic) transmission, and a shuttle with creeper offering 32 forward and 16 reverse speeds. The tractor is powered by a 47 horsepower Mitsubishi four-cylinder diesel engine with a displacement of 153 cubic inches, cooled by a liquid system, and has a rated RPM of 2600. Both the front and rear tires have agricultural tread patterns suitable for farm work. The CT47 is capable of handling many implements with its Category I three-point hitch, and for the operator's protection, it comes with a ROPS (Roll-Over Protection Structure). The tractor also boasts a decent ground clearance of 14 inches and weighs in at 3583 lbs, which ensures stability and performance on varied terrains.
Show more...

Key Specifications

Category: Utility

Power Output: 47

Transmission: Synchro shuttle, Hydrostatic, Shuttle with creeper (Multiple types listed)

Drive Type: 4WD

Operating Weight: 3583

Fuel Type: Diesel

McCormick Intl CT47 vs. Similar Tractors

Power Output
Average
Greater than 45% of similar tractors.
Operating Weight
Average
Greater than 31% of similar tractors.

Technical Specifications

Engine

Manufacturer
Mitsubishi
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Natural aspiration (implied by lack of mention of turbocharging or supercharging)
Cylinders
4
Displacement (ci)
153
Bore (in)
3.5
Stroke (in)
4.1
Rated RPM
2600
Power Output (hp)
47

Transmission

Type
Synchro shuttle, Hydrostatic, Shuttle with creeper (Multiple types listed)
Forward Gears
16 (synchro shuttle and hydrostatic), 32 (shuttle with creeper)
Reverse Gears
16 (synchro shuttle and hydrostatic), 16 (shuttle with creeper)
Total Gears
-

Dimensions

Length (in)
126
Width (in)
67.2
Height (in)
98.3 (Height with ROPS)
Operating Weight (lb)
3583

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
16 (Assumed from tire size 9.5-16)
Front Tire Width (in)
9.5 (Assumed from tire size 9.5-16)
Rear Tire Diameter (in)
24 (Assumed from tire size 12.4-24)
Rear Tire Width (in)
12.4 (Assumed from tire size 12.4-24)
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural (implied by Ag front and Ag rear)
Manufacture - End Year
-
Hitch Type
Category I
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
ROPS (implied by height with ROPS)
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
