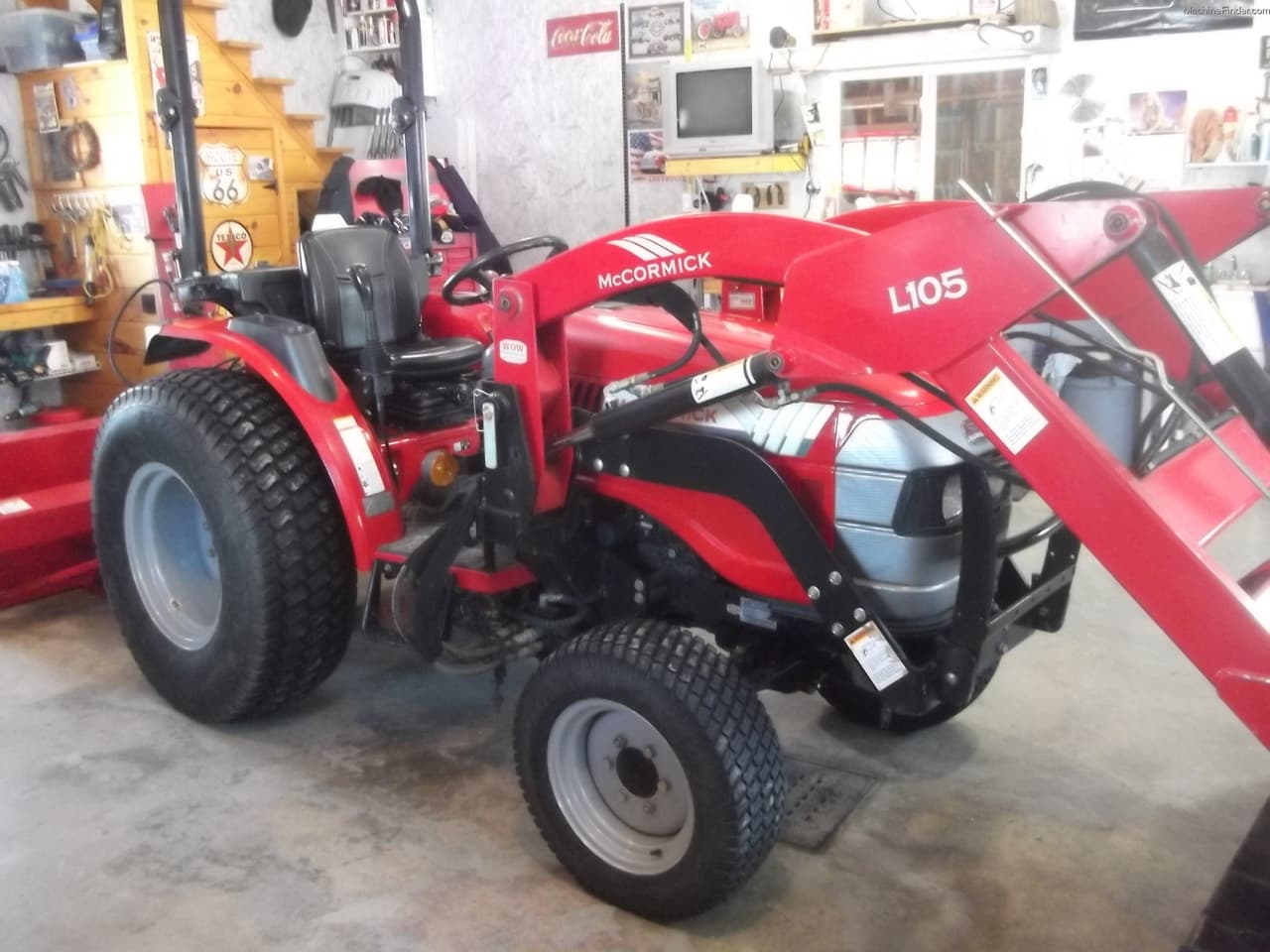

McCormick Intl CT28

Last Updated: June 2024

Overview

The McCormick Intl CT28 is a compact utility tractor that was designed for a variety of tasks around the farm or homestead. It features a 4-cylinder Mitsubishi diesel engine with a displacement of 91.5 cubic inches and a rated output of 28 horsepower, providing capable power for its size. The tractor is engineered with a 4-wheel-drive chassis for improved traction and power steering for ease of maneuverability. It operates at a maximum rated RPM of 2600 and includes glow plugs for pre-heating, indicating readiness for operation in cooler conditions. Transmission options present discrepancies with both synchro shuttle (12 forward and reverse gears) and hydrostatic (infinite 3-range forward and reverse) noted, and the specific details about the total number of gears available are not indicated. Furthermore, the tractor sports agricultural or industrial tires depending on the configuration, and basic dimensions suggest a moderately sized tractor with considerations for operational clearance. Although complete information on certain specifications isn't available, the CT28 seems to be a functional addition to the McCormick tractor lineup, aimed at offering versatility and efficiency.
Show more...

Key Specifications

Category: Utility

Power Output: 28

Transmission: Synchro shuttle / Hydrostatic (Discrepancy exists)

Drive Type: 4WD

Operating Weight: 2645

Fuel Type: Diesel

McCormick Intl CT28 vs. Similar Tractors

Power Output
Below Average
Greater than 23% of similar tractors.
Operating Weight
Below Average
Greater than 21% of similar tractors.

Technical Specifications

Engine

Manufacturer
Mitsubishi
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally Aspirated (Assuming due to no mention of turbo or supercharger)
Cylinders
4
Displacement (ci)
91.5
Bore (in)
3.07
Stroke (in)
3.09
Rated RPM
2600
Power Output (hp)
28

Transmission

Type
Synchro shuttle / Hydrostatic (Discrepancy exists)
Forward Gears
12 (for synchro shuttle) / Infinite (3-range for hydrostatic)
Reverse Gears
12 (for synchro shuttle) / Infinite (3-range for hydrostatic)
Total Gears
-

Dimensions

Length (in)
118
Width (in)
66.5
Height (in)
89.8 (ROPS)
Operating Weight (lb)
2645

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
Unknown (Specification for tire type provided, not diameter)
Front Tire Width (in)
Unknown (Specification for tire type provided, not width)
Rear Tire Diameter (in)
Unknown (Specification for tire type provided, not diameter)
Rear Tire Width (in)
Unknown (Specification for tire type provided, not width)
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural / Industrial (Depending on configuration)
Manufacture - End Year
-
Hitch Type
Category I
Hitch Category
Unknown (Category I tells about the size but not specifically about 'Category 3')
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Unknown (Presence of ROPS suggests it could be Open, but not confirmed)
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Unknown (Steering flow data provided, but not specific system type)
