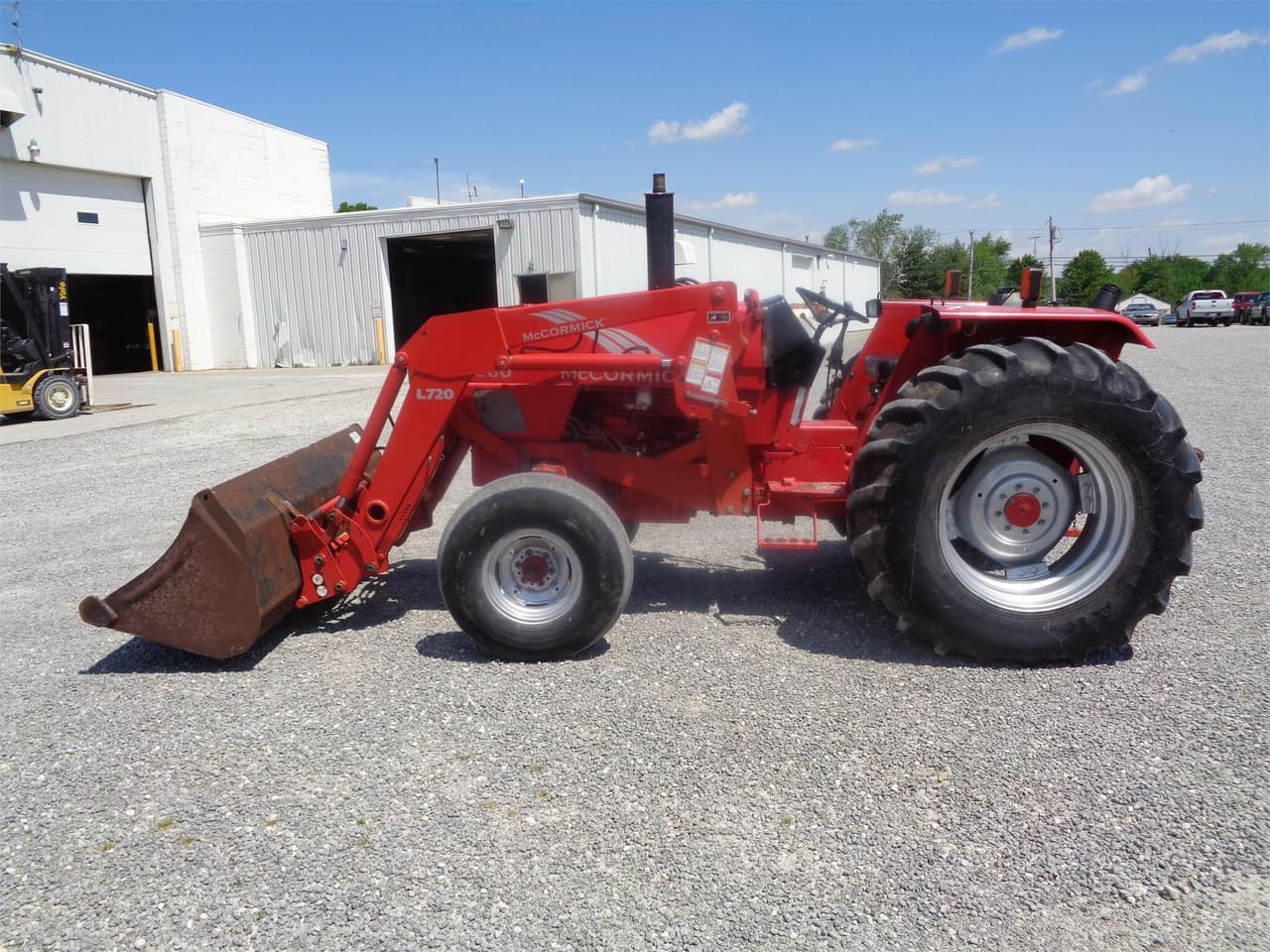

McCormick Intl C80

Last Updated: June 2024

Overview

The McCormick Intl C80 is a utility tractor known for its robust 84 hp Perkins turbocharged diesel engine, with a liquid cooling system to maintain optimal operating temperatures. It boasts a diverse transmission system that includes an 8-speed synchromesh, shuttle shift, and a two-speed power shift, which complement each other to provide a wide range of speed options for various tasks. The tractor's power steering facilitates ease of maneuverability, while its dry disc clutch ensures durable and responsive gear transitions. With a 4x2 2WD chassis configuration, the C80 possesses substantial power while maintaining significant operational simplicity. The engine's 244 cubic inches of displacement and the power output at 2200 RPM signify its capability to handle demanding workloads. Even though some specifications like the total number of gears and PTO options remain unspecified, this tractor remains a stout workhorse in the utility tractor category.
Show more...

Key Specifications

Category: Utility

Power Output: 84

Transmission: Synchromesh, Shuttle, Two-speed power shift

Drive Type: 2WD

Operating Weight: 8135

Fuel Type: Diesel

McCormick Intl C80 vs. Similar Tractors

Power Output
Above Average
Greater than 73% of similar tractors.
Operating Weight
Average
Greater than 57% of similar tractors.

Technical Specifications

Engine

Manufacturer
Perkins
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
4
Displacement (ci)
244
Bore (in)
3.937
Stroke (in)
5
Rated RPM
2200
Power Output (hp)
84

Transmission

Type
Synchromesh, Shuttle, Two-speed power shift
Forward Gears
16
Reverse Gears
8
Total Gears
-

Dimensions

Length (in)
-
Width (in)
-
Height (in)
-
Operating Weight (lb)
8135

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Standard (ag)
Manufacture - End Year
-
Hitch Type
Three-Point Hitch
Hitch Category
II
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric Starter
Brake Type
-
Hydraulic System Type
Open center
