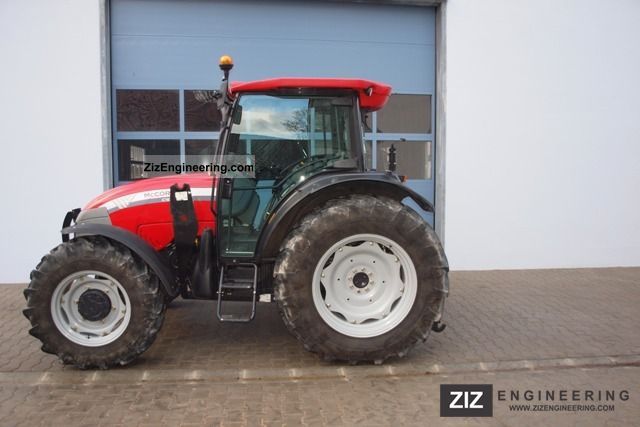

McCormick Intl C105 Max

Last Updated: June 2024

Overview

The McCormick Intl C105 Max is positioned in the utility tractor category. This tractor is outfitted with a 4x2 2WD chassis, which indicates that it is a two-wheel drive vehicle with a total of four wheels. Its engine, a turbocharged, liquid-cooled, four-cylinder Perkins 1104C-44T, provides 98.6 horsepower, suitable for various farm tasks. The engine is designed to meet Tier II emissions standards, achieving a balance between environmental considerations and performance.After the C105 Max is put into gear with its synchro shuttle transmission featuring 24 forward and 12 reverse gears, it's able to move efficiently through tasks with the help of its power steering and a hydraulic system operating on an open-center type. The tractor's exact dimensions and weight suggest it is well-suited for medium-duty work around the farm where a utility tractor fits best. The clear absence of information on the PTO type, speeds, and brake system type means owners should refer to McCormick for more specific operational details.
Show more...

Key Specifications

Category: Utility

Power Output: 98.6

Transmission: Synchro shuttle with overdrive

Drive Type: 2WD

Operating Weight: 6813 (for 2WD)

Fuel Type: Diesel

McCormick Intl C105 Max vs. Similar Tractors

Power Output
Above Average
Greater than 80% of similar tractors.
Operating Weight
Above Average
Greater than 79% of similar tractors.

Technical Specifications

Engine

Manufacturer
Perkins
Model
1104C-44T
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
4
Displacement (ci)
268
Bore (in)
4.134
Stroke (in)
5
Rated RPM
2200
Power Output (hp)
98.6

Transmission

Type
Synchro shuttle with overdrive
Forward Gears
24
Reverse Gears
12
Total Gears
-

Dimensions

Length (in)
163.8
Width (in)
69.3
Height (in)
ROPS: 100.8 (assumed height as ROPS is available)
Operating Weight (lb)
6813 (for 2WD)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
Category II 3-point hitch
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open Center
