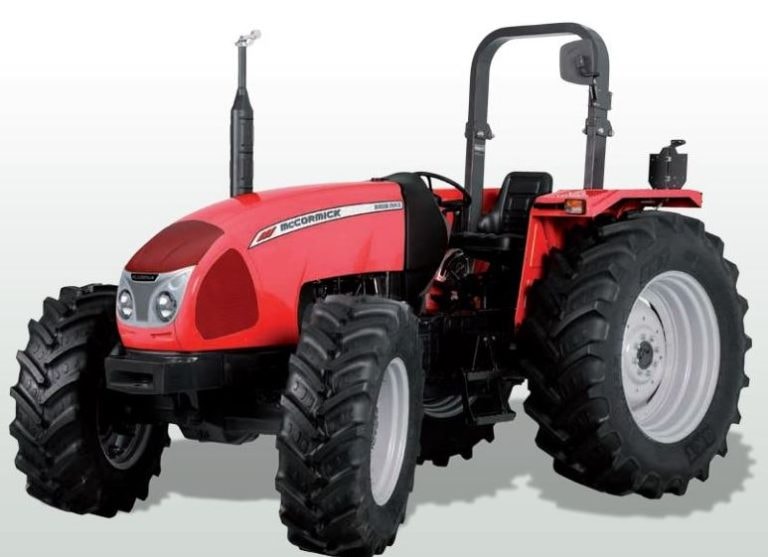

McCormick Intl B105 Max

Last Updated: June 2024

Overview

The McCormick Intl B105 Max is a utility tractor that offers versatility for various agricultural tasks. Equipped with a 4-cylinder Perkins diesel engine, it has a power output of 98.6 hp and a displacement of 268 ci, supported by a liquid-cooling system to maintain optimal engine temperature during long hours of work. The engine operates at a rated RPM of 2200 and comes with a robust direct injection system. Navigating through the fields is facilitated by a 2WD chassis and multiple tire options to suit different soil conditions. The transmission is a mechanical shuttle type with a 12-speed gearbox, expandable to 24 forward and 12 reverse gears with the creeper option. The tractor's dimensions and weight suggest it is capable of handling tasks requiring a substantial lift and carry capacity, further complemented by its Class II hitch system. With a protective ROPS and electric starter, operators have both safety and convenience during operations. Overall, the B105 Max is designed to be a reliable workhorse for those who need a strong and straightforward tractor for routine farm work.
Show more...

Key Specifications

Category: Utility

Power Output: 98.6

Transmission: Mechanical shuttle, with optional creeper

Drive Type: 2WD

Operating Weight: 7590

Fuel Type: Diesel

McCormick Intl B105 Max vs. Similar Tractors

Power Output
Above Average
Greater than 80% of similar tractors.
Operating Weight
Average
Greater than 55% of similar tractors.

Technical Specifications

Engine

Manufacturer
Perkins
Model
1104D-44T
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Direct injection
Cylinders
4
Displacement (ci)
268
Bore (in)
4.134
Stroke (in)
5
Rated RPM
2200
Power Output (hp)
98.6

Transmission

Type
Mechanical shuttle, with optional creeper
Forward Gears
12 (24 with creeper option)
Reverse Gears
4 (12 with creeper option)
Total Gears
-

Dimensions

Length (in)
163.8
Width (in)
81.2 *
Height (in)
-
Operating Weight (lb)
7590

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
Category II
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
ROPS
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
