Massey-Harris Pony 11

Last Updated: June 2024

Overview

The Massey-Harris Pony 11 is a 2WD utility tractor manufactured by Massey-Harris from 1947 to 1954, primarily used for small farming operations. It features a four-cylinder Continental N62 gasoline engine with a displacement of 61.9 ci and a power output of 11.7 hp at 1800 RPM. This tractor has a liquid cooling system and utilizes a manual unsynchronized gear transmission with three forward gears and one reverse gear. The tractor comes equipped with manual steering, an electric starter, and optional rear PTO with a speed of 540 rpm. Designed to operate with basic efficiency, the tractor has a minimum of complexities, sporting a simplistic open operator station and differential mechanical contracting band brakes.
Show more...

Key Specifications

Category: Utility

Power Output: 11.7

Transmission: Unsynchronized gear

Drive Type: 2WD

Operating Weight: 1890

Fuel Type: Gasoline

Image Gallery

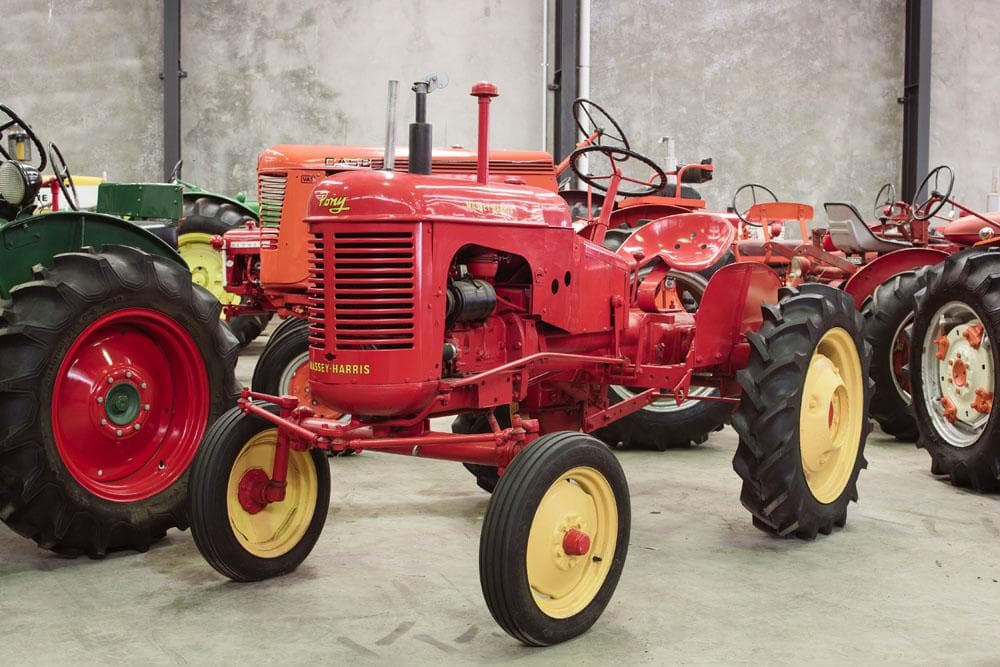

Massey-Harris Pony 11 Tractor Massey-Harris Pony 11 Tractor

Massey-Harris Pony 11 vs. Similar Tractors

Power Output
Poor
Greater than 1% of similar tractors.
Operating Weight
Below Average
Greater than 15% of similar tractors.

Technical Specifications

Engine

Manufacturer
Continental
Model
N62
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Gasoline
Induction Type
Naturally aspirated
Cylinders
4
Displacement (ci)
61.9
Bore (in)
2.36
Stroke (in)
3.5
Rated RPM
1800
Power Output (hp)
11.7

Transmission

Type
Unsynchronized gear
Forward Gears
3
Reverse Gears
1
Total Gears
-

Dimensions

Length (in)
-
Width (in)
-
Height (in)
59.8
Operating Weight (lb)
1890

Power Take-Off (PTO)

PTO Type
Optional
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Manual
Coolant Capacity (qts)
7
Front Tire Diameter (in)
15
Front Tire Width (in)
4
Rear Tire Diameter (in)
24
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
1954
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
Open operator station
Starter Type
Electric
Brake Type
Differential mechanical contracting band
Hydraulic System Type
Open center
