Massey-Harris 81

Last Updated: June 2024

Overview

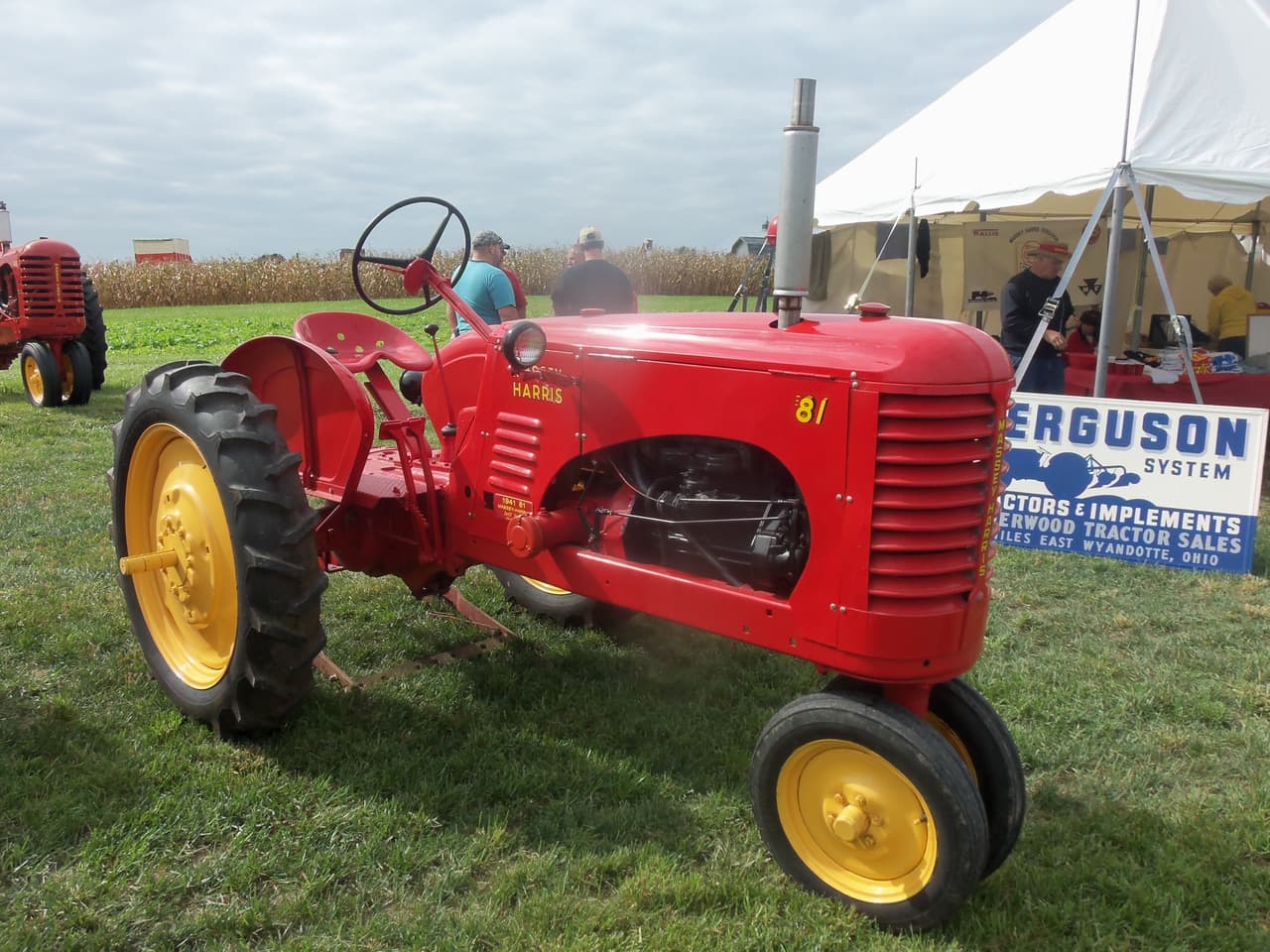

The Massey-Harris 81 is a classic row-crop tractor that was designed to fulfill the needs of small to medium-sized farms. Equipped with a 4x2 2WD chassis, manual steering, and an unsynchronized gear transmission with 4 forward and 1 reverse gears, it presents a straightforward mechanical layout that is easy to service and maintain. It's powered by a Continental F124 gasoline engine with liquid cooling and a vertical L-head valve configuration, which offers solid performance for various farming tasks. With a displacement of 123.7 cubic inches and running at a rated RPM of 1500, the engine details show that it was built to handle a variety of tasks without the complexity of modern engines. Although its manufacturing start and end years are unspecified, the 81 series offers a nostalgic take on farming with its simple design and manual systems.
Show more...

Key Specifications

Category: Row Crop

Transmission: Unsynchronized gear

Drive Type: 2WD

Operating Weight: 2,895

Fuel Type: Gasoline

Massey-Harris 81 vs. Similar Tractors

Operating Weight
Poor
Greater than 0% of similar tractors.

Technical Specifications

Engine

Manufacturer
Continental
Model
F124
Cooling Type
Liquid-cooled
Cylinder Orientation
Vertical
Valve Configuration
L-head
Fuel Type
Gasoline
Induction Type
Naturally Aspirated
Cylinders
4
Displacement (ci)
123.7
Bore (in)
3
Stroke (in)
4.375
Rated RPM
1500
Power Output (hp)
-

Transmission

Type
Unsynchronized gear
Forward Gears
4
Reverse Gears
1
Total Gears
-

Dimensions

Length (in)
119
Width (in)
-
Height (in)
58
Operating Weight (lb)
2,895

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Manual
Coolant Capacity (qts)
11
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric Starter
Brake Type
-
Hydraulic System Type
-
