Massey-Harris 33

Last Updated: June 2024

Overview

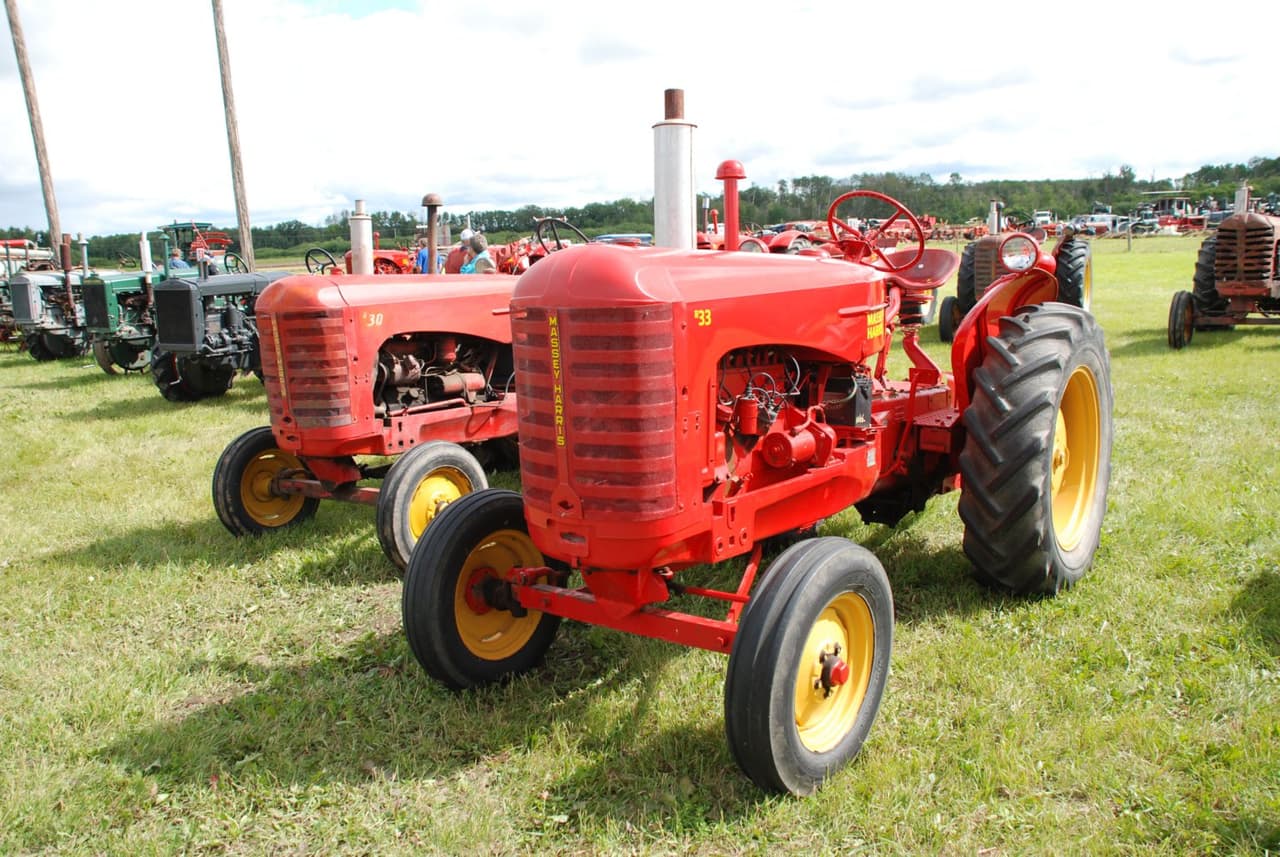

The Massey-Harris 33 Row-Crop tractor, powered by a Continental 3.3L 4-cylinder engine, was a notable machine during its production period. Although the specific engine fuel type is not disclosed, there were both gasoline and diesel variants of similar engines of this era. With a manual transmission featuring 5 forward and 1 reverse gear, and a 4x2 wheel drive configuration, the Massey-Harris 33 was tailored for a variety of tasks, including planting, tilling, and harvesting. Its manual steering system required a firm hand, but was typical for tractors of its time. The engine's capacity was 201 cubic inches, with a bore and stroke of 3.625 by 4.875 inches, and an oil bath air cleaner, indicating a design that favored simplicity and reliability. Rated at 1500 RPM, this tractor had an engine oil capacity of 8 quarts and a coolant capacity of 18 quarts, suggesting an engine built for endurance and sustained workloads.
Show more...

Key Specifications

Category: Row Crop

Transmission: Manual

Drive Type: 2WD

Operating Weight: 5191

Massey-Harris 33 vs. Similar Tractors

Operating Weight
Below Average
Greater than 21% of similar tractors.

Technical Specifications

Engine

Manufacturer
Continental
Model
3.3L 4-cyl
Cooling Type
-
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
-
Induction Type
Naturally aspirated
Cylinders
4
Displacement (ci)
201
Bore (in)
3.625
Stroke (in)
4.875
Rated RPM
1500
Power Output (hp)
-

Transmission

Type
Manual
Forward Gears
5
Reverse Gears
1
Total Gears
-

Dimensions

Length (in)
-
Width (in)
-
Height (in)
-
Operating Weight (lb)
5191

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Manual
Coolant Capacity (qts)
18
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
6V
Brake Type
-
Hydraulic System Type
-
