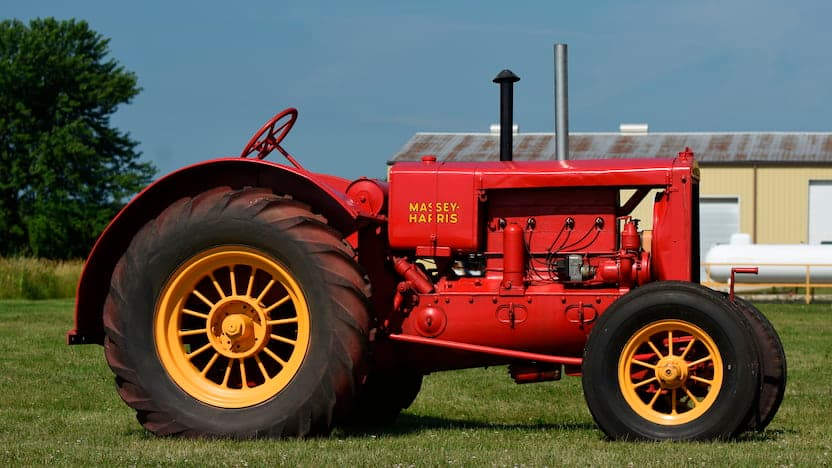

Massey-Harris 25 26-41

Last Updated: September 2024

Overview

The Massey-Harris 25 26-41 is a utility tractor built for farm work. It was first made in 1941 and has a strong 4-cylinder engine. This tractor runs on gasoline and has a very large engine size compared to other tractors. It's cooled by liquid, which helps it work well in hot weather.

This tractor is a 2-wheel drive model with manual steering. It has a simple gear transmission with 3 forward gears and 1 reverse gear. The tractor is quite heavy, weighing 5000 lb, which is about average for its type. It's 135 inches long, 65.5 inches wide, and 57 inches tall. Both the front and rear tires are made of steel, making it tough and long-lasting. The engine runs at 1200 RPM, which is slower than most other tractors but good for steady work.
Show more...

Key Specifications

Category: Utility

Transmission: Gear

Drive Type: 2WD

Operating Weight: 5000 lb (2268 kg)

Fuel Type: Gasoline

Massey-Harris 25 26-41 vs. Similar Tractors

Operating Weight

The Operating Weight for the Massey-Harris 25 26-41 is Average. It is greater than 50% of similar Utility tractors in our database.

Operating weight distribution of Utility tractors

(across 0.7K+ tractors in our database)

Engine Displacement

The Engine Displacement for the Massey-Harris 25 26-41 is Above Average. It is greater than 88% of similar Utility tractors in our database.

Engine displacement distribution of Utility tractors

(across 1K+ tractors in our database)

Engine Rated RPM

The Engine Rated RPM for the Massey-Harris 25 26-41 is Poor. It is greater than 3% of similar Utility tractors in our database.

Engine rated RPM distribution of Utility tractors

(across 1K+ tractors in our database)

Technical Specifications

Engine

Manufacturer
Massey-Harris
Cooling Type
Liquid-cooled
Cylinder Orientation
Vertical
Valve Configuration
Valve-in-head (I-head)
Fuel Type
Gasoline
Induction Type
Naturally aspirated
Cylinders
4
Displacement
346 ci (5.7 L)
Bore
4.38 in (111.1 mm)
Stroke
5.75 in (146.0 mm)
Rated RPM
1200

Transmission

Type
Gear
Forward Gears
3
Reverse Gears
1

Drivetrain

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Manual
