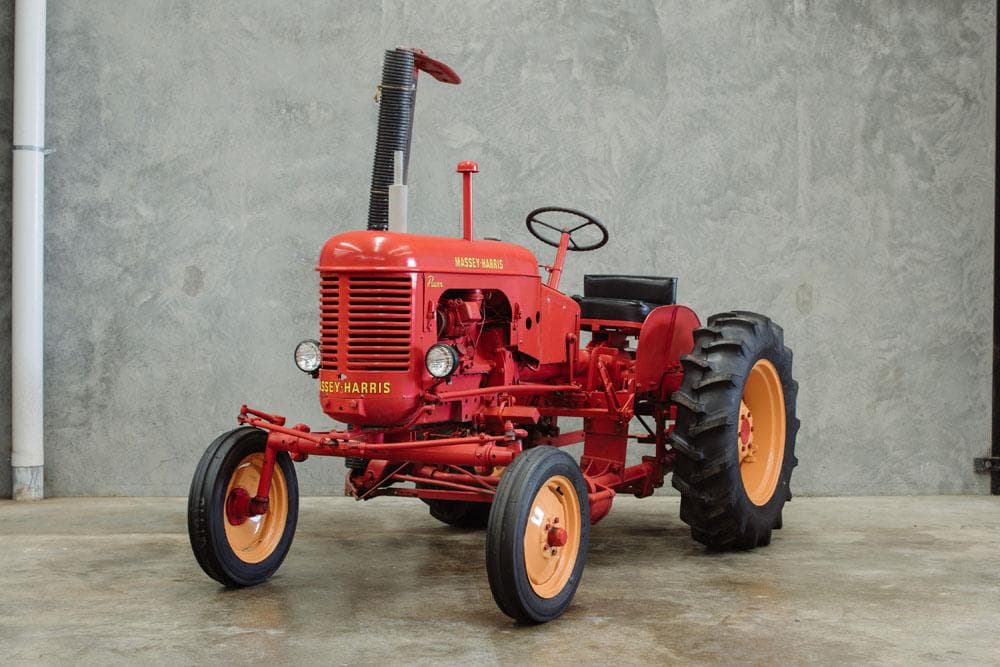

Massey-Harris 16 Pacer

Last Updated: June 2024

Overview

The Massey-Harris 16 Pacer is a tractor that was produced by Massey-Harris. This model comes with a Continental four-cylinder liquid-cooled engine, with a displacement of 91 cubic inches. The engine is paired with a simple gear transmission featuring 3 forward gears and 1 reverse gear. The tractor's powerplant operates with a rated RPM of 1800 and is started electrically. Its front tires measure 4.00x15 inches in width and diameter, respectively. The specifications such as power output and hydraulic system type are not noted, which may limit the detail available in the narrative. The length and width of the 16 Pacer are 103.6 inches and 62.6 inches, respectively, and it has an operating weight of 1980 pounds. Detailed information on the tractor’s capabilities, such as hitch type and lift capacity, are not provided. Without promotional embellishments or unavailable data, the Massey-Harris 16 Pacer represents a simplified but capable piece of machinery from its era, reflecting the basic needs of agricultural technology at the time.
Show more...

Key Specifications

Transmission: Gear

Operating Weight: 1980

Fuel Type: Gasoline

Technical Specifications

Engine

Manufacturer
Continental
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Gasoline
Induction Type
-
Cylinders
4
Displacement (ci)
91
Bore (in)
2.875
Stroke (in)
3.5
Rated RPM
1800
Power Output (hp)
-

Transmission

Type
Gear
Forward Gears
3
Reverse Gears
1
Total Gears
-

Dimensions

Length (in)
103.6
Width (in)
62.6
Height (in)
-
Operating Weight (lb)
1980

Power Take-Off (PTO)

PTO Type
540 Rear PTO
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
9
Front Tire Diameter (in)
15
Front Tire Width (in)
4
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
