Massey-Harris 102 Junior

Last Updated: June 2024

Overview

The Massey-Harris 102 Junior is a classic tractor that was designed with utility in mind, featuring a 4x2 2WD chassis and manual steering system. It is powered by a 4-cylinder Continental distillate engine with a displacement of 162 cubic inches and a bore and stroke of 3.4375 inches by 4.375 inches, capable of 1800 RPM. With a 4-speed gear transmission, it allows for ample control over its operation. Despite the lack of complete details on its power output and hydraulic system, this model is a valuable piece of machinery for those who have the privilege of operating it. The 102 Junior's tires are sized at 5.00-15 in the front and 10.00-36 at the rear. It has formidable carrying capacity for its age and class, with an operating weight of 3400 lbs.

Key Specifications

Transmission: Gear

Drive Type: 2WD

Operating Weight: 3400

Fuel Type: Distillate

Image Gallery

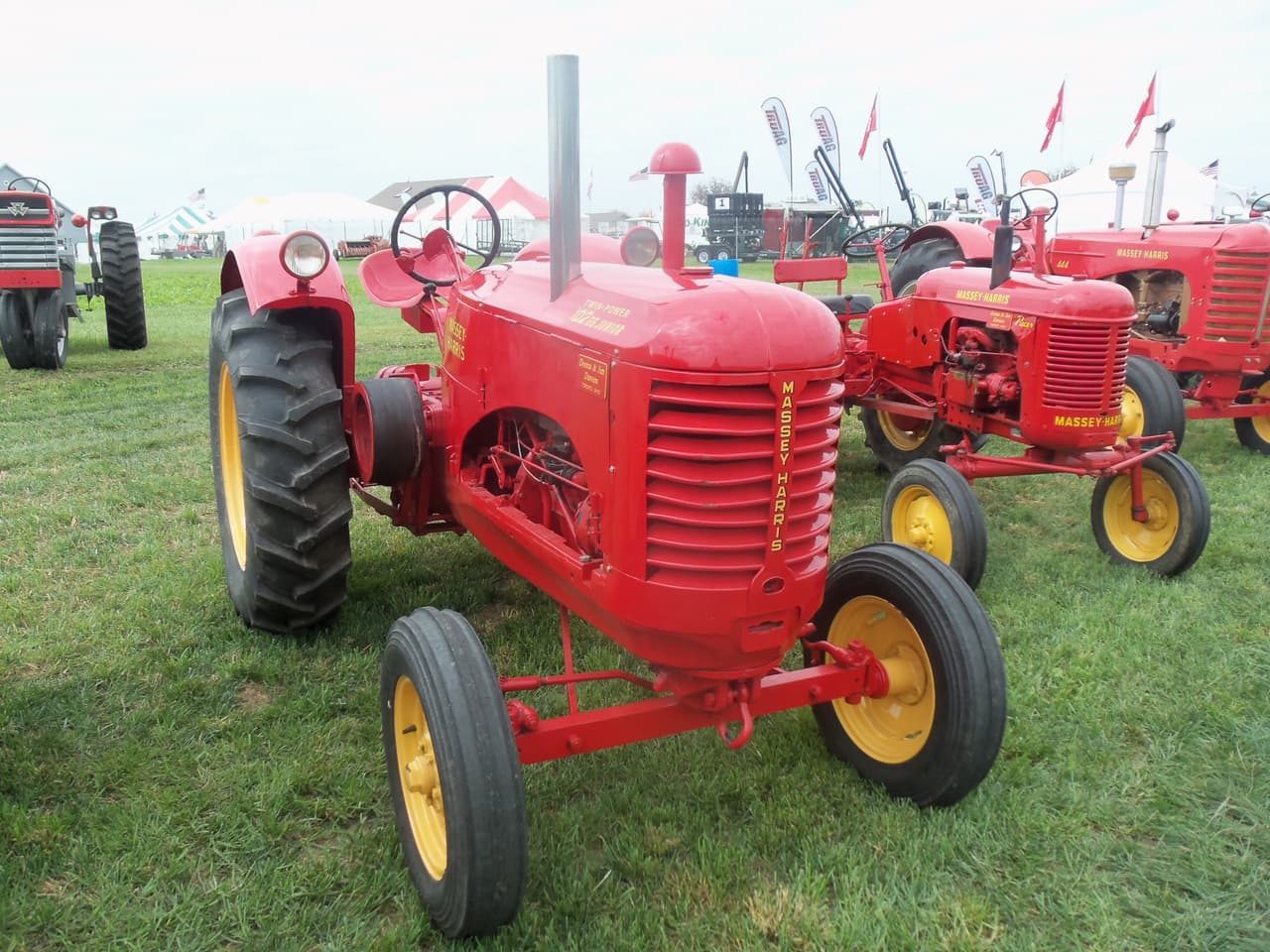

Massey-Harris 102 Junior Tractor

Technical Specifications

Engine

Manufacturer: Continental
Model: -
Cooling Type: -
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Distillate
Induction Type: Naturally Aspirated
Cylinders: 4
Displacement (ci): 162
Bore (in): 3.4375
Stroke (in): 4.375
Rated RPM: 1800
Power Output (hp): -

Transmission

Type: Gear
Forward Gears: 4
Reverse Gears: 1
Total Gears: -

Dimensions

Length (in): -
Width (in): -
Height (in): -
Operating Weight (lb): 3400

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD
Drive Type: 2WD
Steering Type: Manual
Coolant Capacity (qts): -
Front Tire Diameter (in): 15
Front Tire Width (in): 5
Rear Tire Diameter (in): 36
Rear Tire Width (in): 10
Front/Rear Rim Diameter (in): -
Tire Type: Ag (Agricultural)
Manufacture - End Year: -
Hitch Type: -
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: Electric Starter
Brake Type: -
Hydraulic System Type: -
