Massey-Harris 101 Super

Last Updated: June 2024

Overview

The Massey-Harris 101 Super is a classic tractor that was equipped with a Chrysler 6-cylinder gasoline engine. It was available with two engine options, including 3.3L and 3.6L configurations—eventually transitioning to the larger 3.6L engine which displaced 217.8 cubic inches. This model sported a gear transmission with four forward and one reverse gear, ensuring a basic but functional range of operation. It also had a rear PTO rated at 540 rpm, suitable for various implements. Weighing in at 3865 pounds, it was a substantial machine of its time. The tractor's cooling system capacity was 18 quarts, and the engine was rated for 1500 rpm. Details like the tractor's chassis, tire type, and dimensions are not specified in the given data set and remain unknown. Due to the age and historic nature of the Massey-Harris 101 Super, it may represent the technological trends and agricultural capabilities of its production era.

Key Specifications

Transmission: Gear

Operating Weight: 3865

Fuel Type: Gasoline

Image Gallery

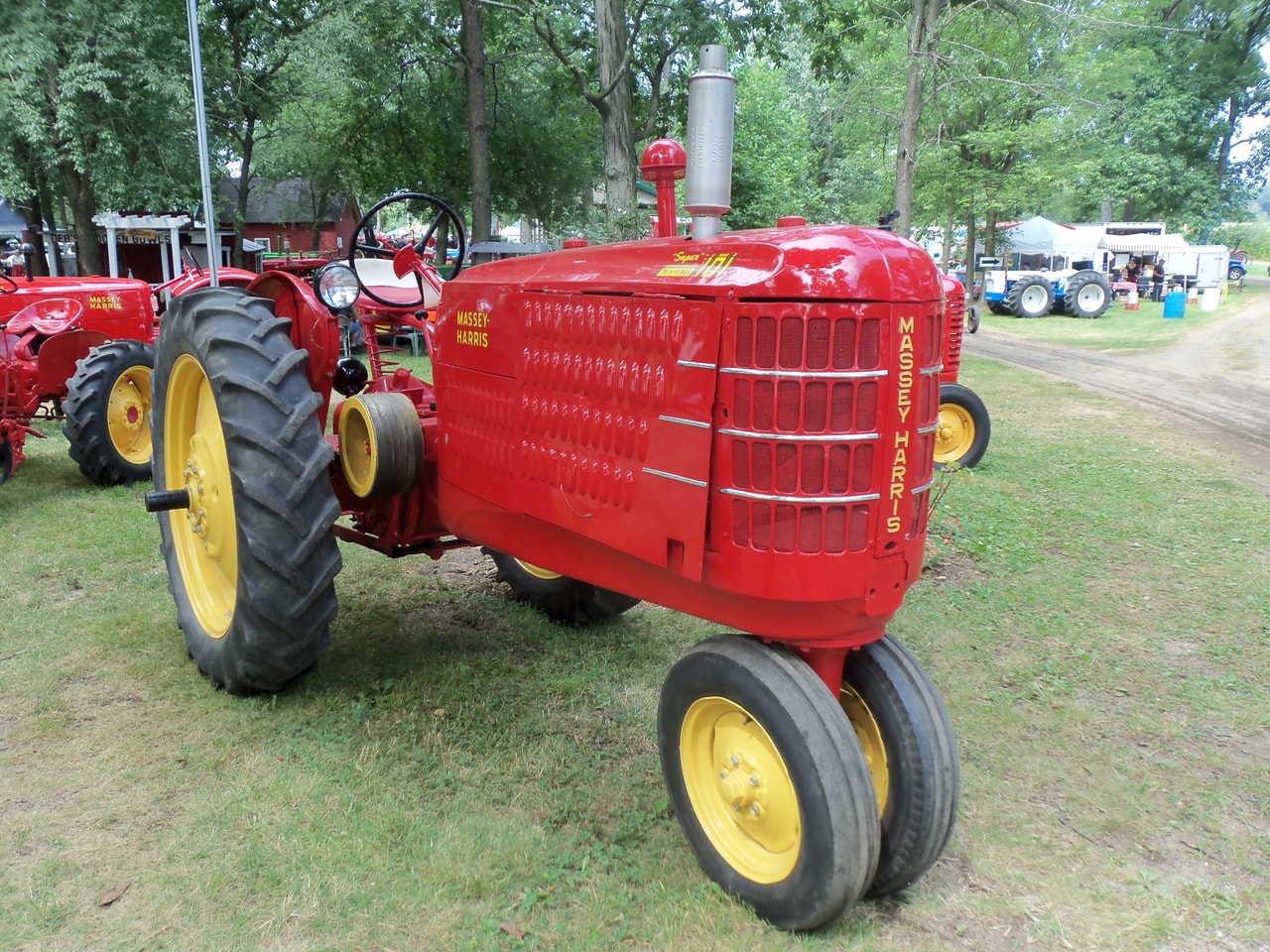

Massey-Harris 101 Super Tractor

Technical Specifications

Engine

Manufacturer: Chrysler
Model: 3.3L or 3.6L 6-cyl gasoline based on context
Cooling Type: -
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Gasoline
Induction Type: Naturally Aspirated (assumed due to lack of specific forced induction details)
Cylinders: 6
Displacement (ci): 217.8 (taking the larger value as it's associated with an upgrade)
Bore (in): 3.25
Stroke (in): 4.375
Rated RPM: 1500
Power Output (hp): -

Transmission

Type: Gear
Forward Gears: 4
Reverse Gears: 1
Total Gears: -

Dimensions

Length (in): -
Width (in): -
Height (in): -
Operating Weight (lb): 3865

Power Take-Off (PTO)

PTO Type: Rear PTO: 540
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: -
Drive Type: -
Steering Type: -
Coolant Capacity (qts): 18
Front Tire Diameter (in): Unknown (22.5 given size for steel and not for standard tires)
Front Tire Width (in): Unknown (4 given width for steel and not for standard tires)
Rear Tire Diameter (in): Unknown (49 given size for steel and not for standard tires)
Rear Tire Width (in): Unknown (8 given width for steel and not for standard tires)
Front/Rear Rim Diameter (in): -
Tire Type: -
Manufacture - End Year: -
Hitch Type: -
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: Electric Starter (assumed based on "Engine - Starter volts")
Brake Type: -
Hydraulic System Type: -
