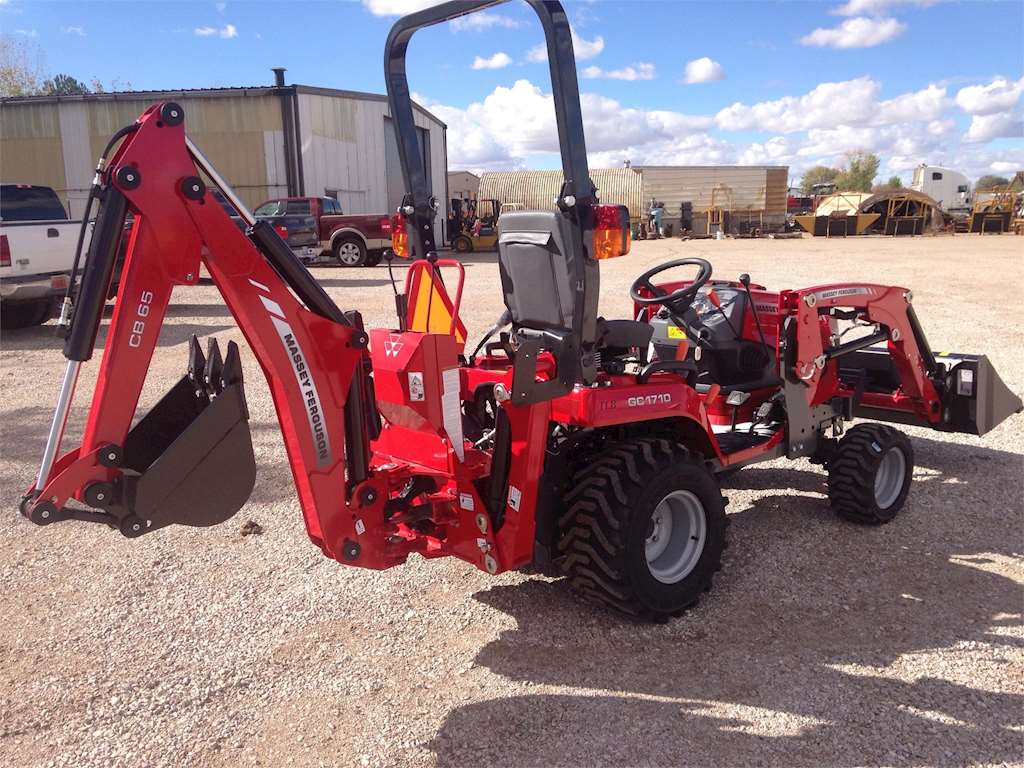

Massey Ferguson GC1710

Last Updated: June 2024

Overview

The Massey Ferguson GC1710 is a versatile 4WD utility tractor manufactured by Iseki for Massey Ferguson, part of the GC1700 series. Its key features include a liquid-cooled, 1.1L three-cylinder diesel engine, hydrostatic transmission with a two-range speed selection, and hydrostatic power steering. It also boasts wet disc brakes and a two-post ROPS for operator safety. The GC1710 is capable of a variety of tasks, with an independent PTO and an open-center hydraulic system that offers a total flow of 6.3 gpm, delivering reliability and performance.
Show more...

Key Specifications

Category: Utility

Power Output: 22.5

Transmission: Hydrostatic

Drive Type: MFWD 4WD

Operating Weight: 2668

Fuel Type: Diesel

Image Gallery

Massey Ferguson GC1710 Tractor Massey Ferguson GC1710 Tractor Massey Ferguson GC1710 Tractor Massey Ferguson GC1710 Tractor Massey Ferguson GC1710 Tractor Massey Ferguson GC1710 Tractor Massey Ferguson GC1710 Tractor Massey Ferguson GC1710 Tractor Massey Ferguson GC1710 Tractor Massey Ferguson GC1710 Tractor

Massey Ferguson GC1710 vs. Similar Tractors

Power Output
Below Average
Greater than 13% of similar tractors.
Hitch Capacity
Below Average
Greater than 22% of similar tractors.
Operating Weight
Below Average
Greater than 22% of similar tractors.

Technical Specifications

Engine

Manufacturer
Iseki
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Natural-aspirated
Cylinders
3
Displacement (ci)
68.5
Bore (in)
-
Stroke (in)
-
Rated RPM
2600
Power Output (hp)
22.5

Transmission

Type
Hydrostatic
Forward Gears
Infinite (2-range)
Reverse Gears
Infinite (2-range)
Total Gears
-

Dimensions

Length (in)
177
Width (in)
53.9
Height (in)
85.8
Operating Weight (lb)
2668

Power Take-Off (PTO)

PTO Type
Independent
PTO Speed 1 (rpm)
2000 (Middle), 540 (Rear)
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4WD
Drive Type
MFWD 4WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 1
Hitch Position
Rear
Hitch Capacity (lb)
1190
Operator Station Type
Two-post ROPS
Starter Type
Electric
Brake Type
Wet disc
Hydraulic System Type
Open center
