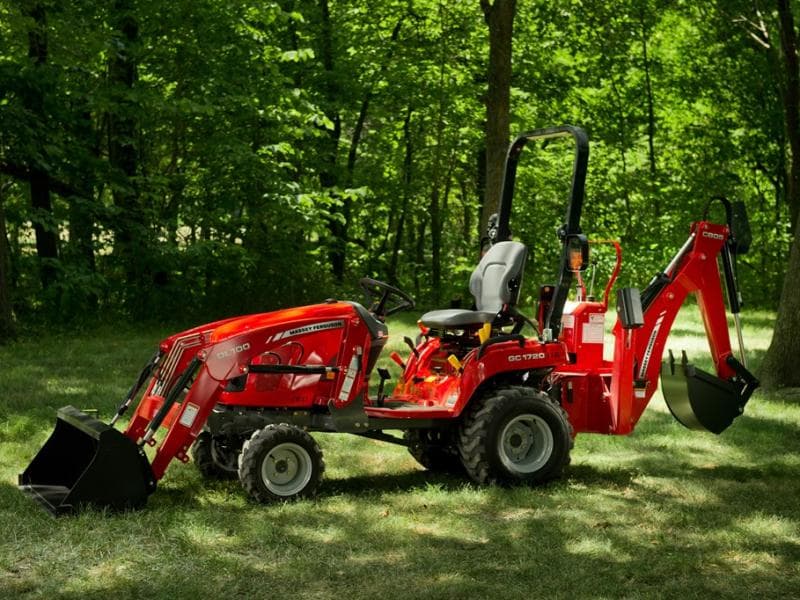

Massey Ferguson GC1705

Last Updated: June 2024

Overview

The Massey Ferguson GC1705 is a versatile and compact sub-utility tractor designed for a variety of tasks. Constructed by Iseki for Massey Ferguson, this model offers a balance of performance and efficiency, featuring a three-cylinder diesel engine which provides 22.5 HP and operates at a rated RPM of 2600. It is equipped with a hydrostatic transmission with infinite ranges in both forward and reverse gears, allowing for easy speed adjustments. The tractor’s open center hydraulic system, hydrostatic power steering, and wet disc brakes ensure responsive control and ease of operation. Its 4WD chassis and category I hitch make it suitable for handling tasks such as mowing, tilling, and light towing. The GC1705’s operator station has a two-post ROPS, ensuring a degree of safety. The tractor's compact dimensions, with a length of 97.6 inches, a width of 47.25 inches, and a height of 72.8 inches, coupled with its operating weight of 1433 pounds, make it suitable for use in tighter spaces. Manufactured from 2013 to 2018, this model remains a valuable asset for small farm operations and land maintenance tasks.
Show more...

Key Specifications

Category: Utility, Sub-Compact

Power Output: 22.5

Transmission: Hydrostatic

Drive Type: MFWD 4WD

Operating Weight: 1433

Fuel Type: Diesel

Massey Ferguson GC1705 vs. Similar Tractors

Power Output
Below Average
Greater than 13% of similar tractors.
Hitch Capacity
Below Average
Greater than 22% of similar tractors.
Operating Weight
Below Average
Greater than 11% of similar tractors.

Technical Specifications

Engine

Manufacturer
Iseki
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Natural aspirated
Cylinders
3
Displacement (ci)
68.5
Bore (in)
3.08
Stroke (in)
3.07
Rated RPM
2600
Power Output (hp)
22.5

Transmission

Type
Hydrostatic
Forward Gears
Infinite (2-range)
Reverse Gears
Infinite (2-range)
Total Gears
-

Dimensions

Length (in)
97.6
Width (in)
47.25
Height (in)
72.8
Operating Weight (lb)
1433

Power Take-Off (PTO)

PTO Type
Independent
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
2000
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
MFWD 4WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
8.5
Rear Tire Diameter (in)
-
Rear Tire Width (in)
12
Front/Rear Rim Diameter (in)
-
Tire Type
Ag, Lawn/turf, Industrial
Manufacture - End Year
2018
Hitch Type
Category I
Hitch Category
-
Hitch Position
Rear
Hitch Capacity (lb)
1190
Operator Station Type
Two-post ROPS
Starter Type
Electric
Brake Type
Wet disc
Hydraulic System Type
Open center
