Overview

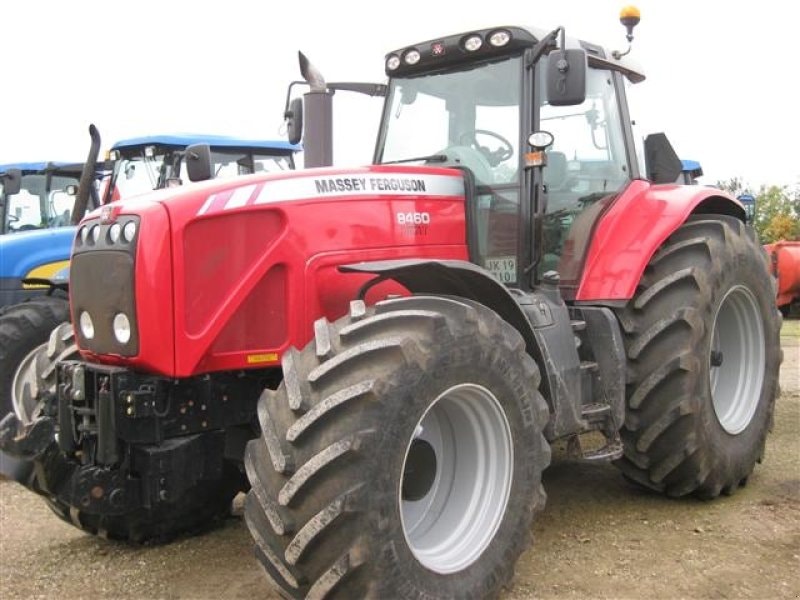

The Massey Ferguson 8460 is a 4WD row-crop tractor from the 8400 series, manufactured by AGCO in Beauvais, France from 2004 to 2007. The MF 8460 features a Sisu Diesel 7.4-liter six-cylinder turbocharged and intercooled diesel engine with a power output of 235 hp at 2200 rpm. The tractor is available with two transmission types: the DynaStep transmission offering 21 forward and 18 reverse gears and the Dyna-VT transmission with an infinite number of gears in both forward and reverse directions. The ingenuity of the MF 8460 allows it to handle a variety of tasks with ease, owing to its hydrostatic power steering, hefty operating weight, and hydraulic wet disc brakes. The comfort of the operator is also prioritized, with a cab featuring optional pneumatic suspension, enhancing the efficiency and productivity in the field. With a lift capacity of 14,300 lbs and options for PTO speed adjustments, this machine can accommodate a broad range of implements and attachments for diverse agricultural operations.
Show more...

Key Specifications

Category: Row Crop

Power Output: 235

Transmission: Power shift / Continuously variable transmission (CVT)

Drive Type: Four-wheel drive (4WD)

Operating Weight: 19910

Fuel Type: Diesel

Image Gallery

Massey Ferguson 8460 Tractor Massey Ferguson 8460 Tractor Massey Ferguson 8460 Tractor Massey Ferguson 8460 Tractor Massey Ferguson 8460 Tractor Massey Ferguson 8460 Tractor Massey Ferguson 8460 Tractor Massey Ferguson 8460 Tractor Massey Ferguson 8460 Tractor Massey Ferguson 8460 Tractor Massey Ferguson 8460 Tractor Massey Ferguson 8460 Tractor

Massey Ferguson 8460 vs. Similar Tractors

Power Output
Above Average
Greater than 80% of similar tractors.
Hitch Capacity
Average
Greater than 70% of similar tractors.
Operating Weight
Above Average
Greater than 71% of similar tractors.

Technical Specifications

Engine

Manufacturer
Sisu Diesel
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged intercooled
Cylinders
6
Displacement (ci)
449
Bore (in)
4.25
Stroke (in)
5.28
Rated RPM
2200
Power Output (hp)
235

Transmission

Type
Power shift / Continuously variable transmission (CVT)
Forward Gears
21 (DynaStep) / Infinite (Dyna-VT)
Reverse Gears
18 (DynaStep) / Infinite (Dyna-VT)
Total Gears
-

Dimensions

Length (in)
206
Width (in)
-
Height (in)
122
Operating Weight (lb)
19910

Power Take-Off (PTO)

PTO Type
Independent
PTO Speed 1 (rpm)
540 / 1000
PTO Speed 2 (rpm)
540E / 1000 (depending on setting)
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
Four-wheel drive (4WD)
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
30 (16.9R30)
Front Tire Width (in)
-
Rear Tire Diameter (in)
46 (18.4R46)
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural (Ag)
Manufacture - End Year
2007
Hitch Type
Category 3
Hitch Category
III
Hitch Position
-
Hitch Capacity (lb)
14300 lbs
Operator Station Type
Cab (with optional pneumatic suspension)
Starter Type
Electric
Brake Type
Independent hydraulic wet disc
Hydraulic System Type
Closed center pressure flow compensated (PFC)

Test Results

Nebraska Tractor Test Laboratory - Test Date: March to May, 2005

Maximum Power and Fuel Consumption

  • Maximum Power: 233.5 HP (174.1 kW) at 2001 rpm
  • Fuel Consumption at Maximum Power: 12.61 Gal/hr (47.74 l/h) with a fuel efficiency of 0.376 lb/hp.hr (0.229 kg/kW.h)
  • Fuel Efficiency at Standard PTO Speed (1000 rpm): 18.22 Hp.hr/gal (3.59 kW.h/l)

Drawbar Performance

  • Maximum Power (Turtle 12): 175.3 HP (130.7 kW) at 2200 rpm with a drawbar pull of 13520 lbs (60.14 kN) and a speed of 4.86 mph (7.83 km/h)
  • Fuel Consumption at Maximum Power: 0.481 lb/hp.hr (0.293 kg/kW.h) with a fuel efficiency of 14.45 Hp.hr/gal (2.85 kW.h/l)

Torque and Engine Performance

  • Maximum Torque: 681 lb.-ft. (924 Nm) at 1401 rpm
  • Maximum Torque Rise: 38.9%

Hydraulic Performance

  • Maximum Force Exerted: 14648 lbs (65.2 kN) at hitch points
  • Pump Delivery Rate: 37.4 GPM (141.5 l/min) at minimum pressure
  • Hydraulic Power: 47.7 HP (35.6 kW) at delivery pressure of 2320 psi (160 bar)

Overall Efficiency

  • Fuel Efficiency at Rated Engine Speed (2201 rpm): 16.92 Hp.hr/gal (3.33 kW.h/l)
  • Fuel Consumption: 12.16 Gal/hr (46.01 l/h)



Nebraska Tractor Test Lab.(2005).Nebraska Summary 546: Massey Ferguson 8460 Diesel Dyna-Step Transmission. Retrieved from https://digitalcommons.unl.edu/tractormuseumlit/2122
