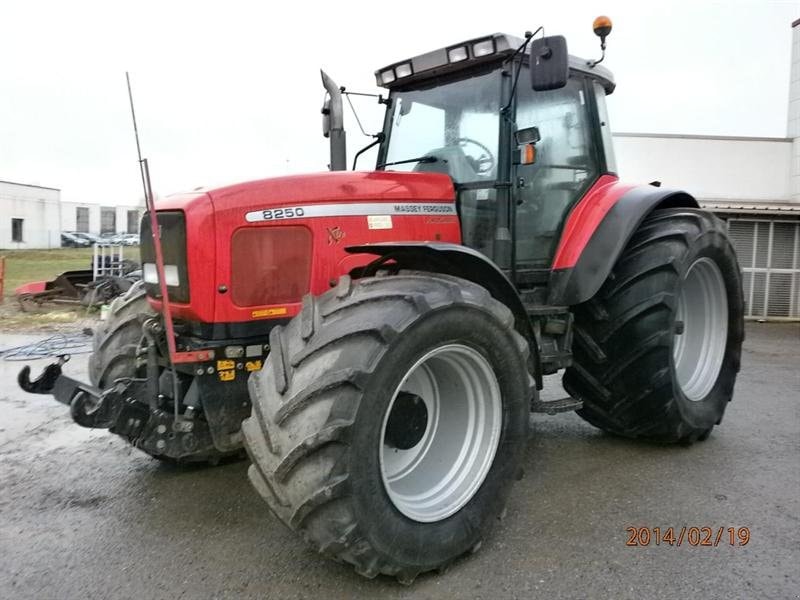

Massey Ferguson 8250

Last Updated: June 2024

Overview

The Massey Ferguson 8250 is a row-crop tractor famous for its robust design and state-of-the-art technology. It is part of the 8200 Series, manufactured between 1999 and 2003. This model boasts a 4x4 MFWD 4WD chassis, offering superior traction and capability for a variety of agricultural tasks. With a hydrostatic power steering system, the tractor affords the operator smooth maneuverability. Powering the 8250 is a 6-cylinder Valmet engine, which is a turbocharged intercooled diesel type with a liquid cooling system that produces 183 hp, adequate for demanding tasks. The tractor utilizes a convenient four-range power shift transmission type with 32 forward and reverse gears. The hitch system is a Category 3, designed with the expectations of a rear positioning for variation in tasks. The operational weight is noted at 18,065 lbs, and the engine runs efficiently with a rated RPM of 2200. While many specifics like the total number of gears and additional features remain undisclosed, the Massey Ferguson 8250 is regarded as a powerful machine capable of handling a wide range of crop farming operations.
Show more...

Key Specifications

Category: Row Crop

Power Output: 183

Transmission: four-range power shift

Drive Type: 4WD

Operating Weight: 18065

Fuel Type: turbocharged intercooled diesel

Image Gallery

Massey Ferguson 8250 Tractor Massey Ferguson 8250 Tractor Massey Ferguson 8250 Tractor Massey Ferguson 8250 Tractor Massey Ferguson 8250 Tractor Massey Ferguson 8250 Tractor Massey Ferguson 8250 Tractor Massey Ferguson 8250 Tractor Massey Ferguson 8250 Tractor Massey Ferguson 8250 Tractor

Massey Ferguson 8250 vs. Similar Tractors

Power Output
Average
Greater than 68% of similar tractors.
Operating Weight
Average
Greater than 67% of similar tractors.

Technical Specifications

Engine

Manufacturer
Valmet
Model
-
Cooling Type
liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
turbocharged intercooled diesel
Induction Type
-
Cylinders
6
Displacement (ci)
449.4
Bore (in)
4.251
Stroke (in)
5.278
Rated RPM
2200
Power Output (hp)
183

Transmission

Type
four-range power shift
Forward Gears
32
Reverse Gears
32
Total Gears
-

Dimensions

Length (in)
-
Width (in)
-
Height (in)
-
Operating Weight (lb)
18065

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
hydrostatic power
Coolant Capacity (qts)
31.2
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
2003
Hitch Type
Category 3
Hitch Category
III
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
pressure flow compensated (PFC)

Test Results

Nebraska Tractor Test Laboratory - Test Date: March - June, 1999

Maximum Power and Fuel Consumption

  • Rated Engine Speed (PTO speed—1059 rpm):
  • Power: 161.1 HP (120.1 kW) at 2212 rpm

  • Fuel Consumption: 9.53 Gal/hr (36.06 l/h) with a fuel efficiency of 0.419 lb/hp.hr (0.255 kg/kW.h)

  • Standard Power Take-off Speed (1000 rpm):

  • Power: 163.2 HP (121.7 kW) at 2091 rpm

  • Fuel Consumption: 9.29 Gal/hr (35.15 l/h) with a fuel efficiency of 0.404 lb/hp.hr (0.246 kg/kW.h)

  • Maximum Power (2 Hours):

  • Power: 165.8 HP (123.6 kW) at 1925 rpm
  • Fuel Consumption: 8.96 Gal/hr (33.91 l/h) with a fuel efficiency of 0.385 lb/hp.hr (0.234 kg/kW.h)

Drawbar Performance

  • Maximum Power in 12th Gear:
  • Power: 144.8 HP (108 kW)
  • Drawbar Pull: 12850 lbs (57.2 kN)
  • Speed: 4.23 mph (6.81 km/h)
  • Fuel Consumption: 0.448 lb/hp.hr (0.273 kg/kW.h) with a fuel efficiency of 15.84 Hp.hr/gal (3.12 kW.h/l)

Torque and Engine Performance

  • Maximum Torque: 518.6 lb.-ft. (703.1 Nm) at 1227 rpm
  • Torque Rise: 37.4%
  • Torque Rise at 1800 Engine RPM: 23%

Hydraulic Performance

  • Maximum Force Exerted: 16101 lbs (71.6 kN) through the whole range
  • Pump Delivery Rate at Minimum Pressure: 29.9 GPM (113.2 l/min)
  • Hydraulic Power: 40.0 HP (29.9 kW) at 2640 psi (182 bar)



NTTL.(1999).Nebraska Summary 363: Massey Ferguson 8250 Diesel 32 Speed. Lincoln, NE:Nebraska Tractor Test Laboratory. Retrieved from https://digitalcommons.unl.edu/tractormuseumlit/2182
