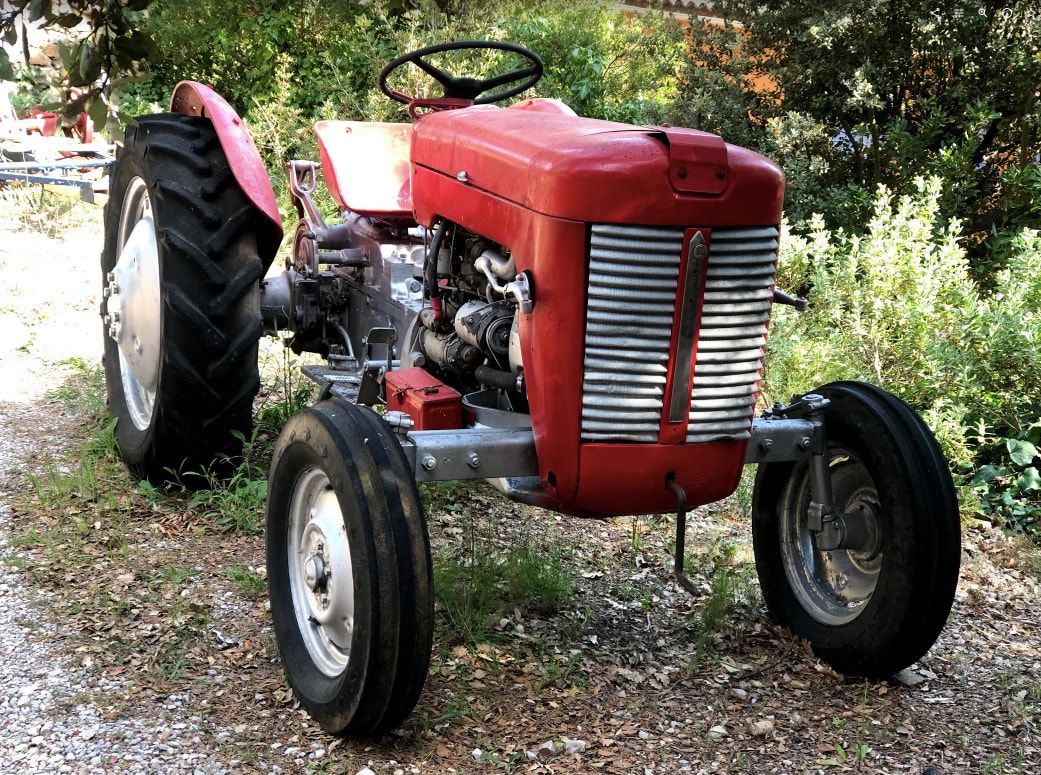

Massey Ferguson 825

Last Updated: June 2024

Overview

The Massey Ferguson 825 is a utility tractor known for its straightforward functionality and reliability. The tractor is powered by a 25 hp Perkins diesel engine with a liquid-cooled 4-cylinder configuration, making it capable of handling a variety of tasks around the farm. The chassis is a basic 4x2, 2WD setup, which is sufficient for general-purpose work. With a transmission offering 8 forward and 2 reverse gears, operators can select the appropriate speed for different applications. The tractor's dimensions and tire types signal its suitability for agricultural work, and while the precise years of manufacture are not listed, it is typical of many models produced in the mid-20th century. Due to its weight, the Massey Ferguson 825 can be considered robust for its class, and its rear type "I" hitch also suggests compatibility with a range of implements.
Show more...

Key Specifications

Category: Utility

Power Output: 25

Transmission: Manual

Drive Type: 2WD

Operating Weight: 3115

Fuel Type: Diesel

Massey Ferguson 825 vs. Similar Tractors

Power Output
Below Average
Greater than 18% of similar tractors.
Operating Weight
Below Average
Greater than 26% of similar tractors.

Technical Specifications

Engine

Manufacturer
Perkins
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
4
Displacement (ci)
107
Bore (in)
3.125
Stroke (in)
3.5
Rated RPM
-
Power Output (hp)
25

Transmission

Type
Manual
Forward Gears
8
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
-
Width (in)
-
Height (in)
-
Operating Weight (lb)
3115

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2
Drive Type
2WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
5.5
Rear Tire Diameter (in)
-
Rear Tire Width (in)
12.4
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
I
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
