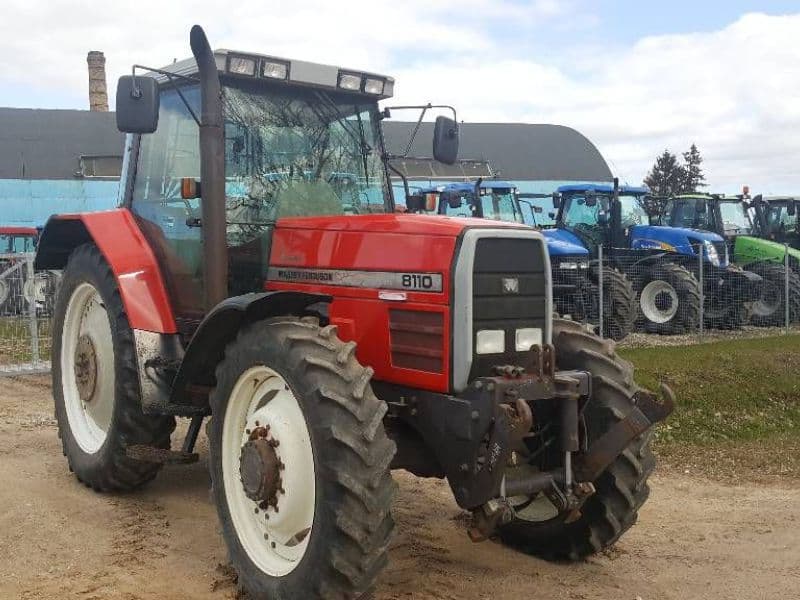

Massey Ferguson 8110

Last Updated: June 2024

Overview

The Massey Ferguson 8110 is a robust row-crop tractor produced by Massey Ferguson from 1995 to 1999. It features a 4x4 MFWD 4WD (four-wheel drive) chassis, which, along with its substantial operating weight of 12,750 lbs, contributes to its stability and traction under various agricultural working conditions. The tractor is powered by a turbocharged diesel Perkins engine with a displacement of 365 cubic inches, able to deliver a power output of 135 horsepower. This powerful performance, coupled with an ample 32-speed Dynashift transmission and hydrostatic power steering, enhances the tractor's versatility and ease of operation. With a wheelbase of 108.7 inches and a length of 200 inches, the tractor is designed to manage a wide range of row-crop tasks. The cab height of 114.6 inches offers clear visibility for the operator. The tractor rides on standard agricultural tires, with front tire specifications of 16.9R28 and rear tires of 20.8R38, granting the tractor a balanced and powerful presence in the field.
Show more...

Key Specifications

Category: Row Crop

Power Output: 135

Transmission: Dynashift

Drive Type: 4WD

Operating Weight: 12750

Fuel Type: Turbocharged diesel

Massey Ferguson 8110 vs. Similar Tractors

Power Output
Average
Greater than 45% of similar tractors.
Operating Weight
Average
Greater than 50% of similar tractors.

Technical Specifications

Engine

Manufacturer
Perkins
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Turbocharged diesel
Induction Type
-
Cylinders
6
Displacement (ci)
365
Bore (in)
3.937
Stroke (in)
5
Rated RPM
2200
Power Output (hp)
135

Transmission

Type
Dynashift
Forward Gears
32
Reverse Gears
32
Total Gears
-

Dimensions

Length (in)
200
Width (in)
-
Height (in)
114.6 (cab)
Operating Weight (lb)
12750

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
1999
Hitch Type
-
Hitch Category
II
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
Cab
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
