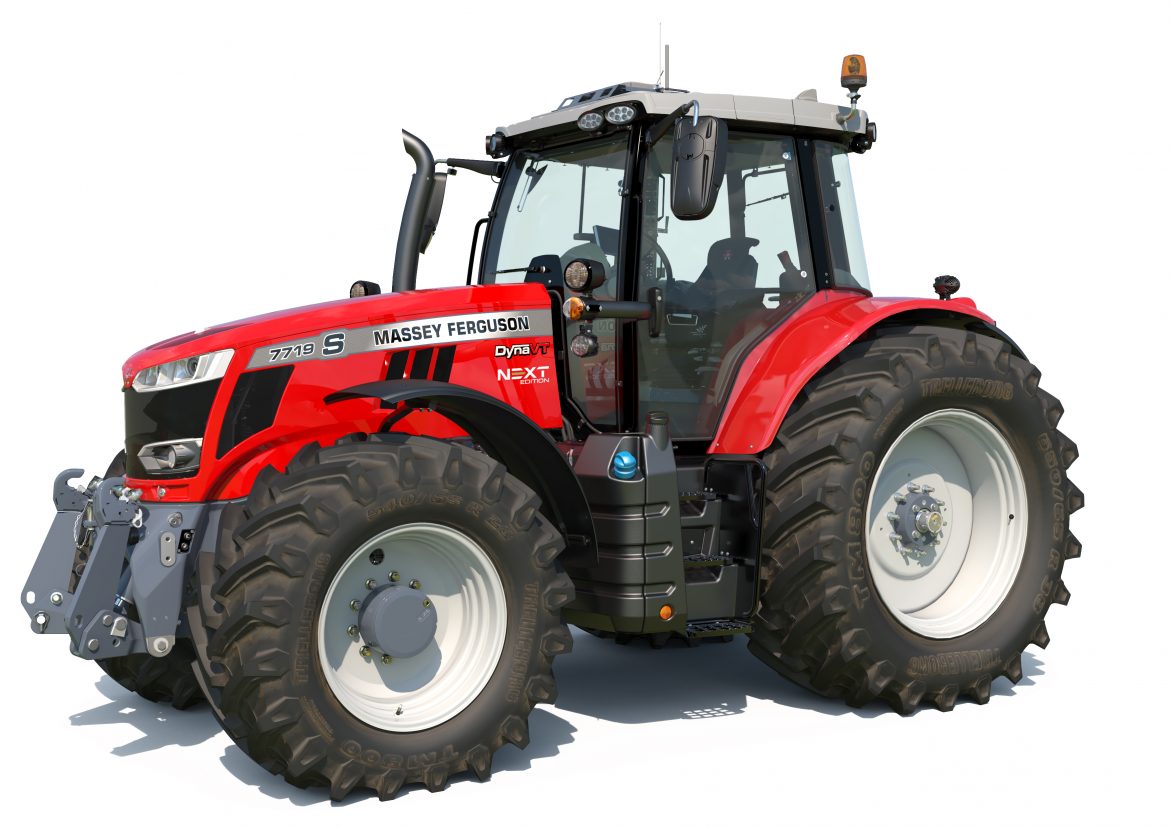

Massey Ferguson 7719

Last Updated: July 2024

Overview

The Massey Ferguson 7719 is a powerful and efficient row-crop tractor equipped with the AGCO Power 473684 engine utilizing selective catalytic reduction (SCR) technology for emission control. Independent testing confirmed a maximum power output of 170.3 hp and a peak torque of 595 lb-ft at 1500 rpm with a torque rise of 47.7%. The tractor features a continuously variable transmission (Dyna-VT) for smooth operation. Key updates include the rear tire size of 620/70R42, front tire size of 480/70R30, and fuel efficiency of 18.48 Hp.hr/gal at standard PTO speed. The hydraulic system delivers 30.7 GPM at 1975 psi. Detailed drawbar performance data across various gears, as well as hydraulic system specifications, have been added based on the test results.
Show more...

Key Specifications

Category: Row Crop

Power Output: 170.3 (max power)

Transmission: CVT (Dyna-VT)

Drive Type: 4WD

Operating Weight: 18180

Fuel Type: Fuel No. 2 Diesel

Image Gallery

Massey Ferguson 7719 Tractor Massey Ferguson 7719 Tractor Massey Ferguson 7719 Tractor Massey Ferguson 7719 Tractor Massey Ferguson 7719 Tractor Massey Ferguson 7719 Tractor

Massey Ferguson 7719 vs. Similar Tractors

Power Output
Average
Greater than 68% of similar tractors.
Hitch Capacity
Average
Greater than 69% of similar tractors.
Operating Weight
Average
Greater than 61% of similar tractors.

Technical Specifications

Engine

Manufacturer
AGCO Power
Model
473684
Cooling Type
Liquid
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Fuel No. 2 Diesel
Induction Type
Turbocharged, air-to-air intercooler, SCR
Cylinders
6
Displacement (ci)
402
Bore (in)
4.252
Stroke (in)
4.724
Rated RPM
2100
Power Output (hp)
170.3 (max power)

Transmission

Type
CVT (Dyna-VT)
Forward Gears
Continuously Variable
Reverse Gears
Continuously Variable
Total Gears
-

Dimensions

Length (in)
-
Width (in)
-
Height (in)
-
Operating Weight (lb)
18180

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Front: 480/70R30; Rear: 620/70R42
Manufacture - End Year
-
Hitch Type
III
Hitch Category
-
Hitch Position
Rear
Hitch Capacity (lb)
13890 lbs (based on test results)
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Closed center load sensing

Test Results

Nebraska Tractor Test Laboratory - Test Date: February to March, 2016

Maximum Power and Fuel Consumption

  • Maximum Power: 170.3 HP (127.0 kW) at 2100 rpm
  • Fuel Consumption at Maximum Power: 9.41 Gal/hr (35.63 l/h) with a fuel efficiency of 0.370 lb/hp.hr (0.225 kg/kW.h)
  • DEF Consumption: 0.68 Gal/hr (2.58 l/h)

Drawbar Performance

  • Power at Rated Engine Speed (11th Gear): 131.7 HP (98.2 kW) with a drawbar pull of 9600 lbs (42.7 kN) and a speed of 5.15 mph (8.28 km/h)
  • Fuel Consumption at Rated Speed: 0.464 lb/hp.hr (0.283 kg/kW.h) with a fuel efficiency of 14.11 Hp.hr/gal (2.78 kW.h/l)

Torque and Engine Performance

  • Maximum Torque: 584 lb.-ft (792 Nm) at 1500 rpm
  • Torque Rise: 42% with a power increase at 1700 rpm of 11.5%

Hydraulic Performance

  • Maximum Force Exerted: 13890 lbs (61.8 kN) at hitch points
  • Pump Delivery Rate: 30.7 GPM (116.2 l/min) at minimum pressure and rated engine speed
  • Hydraulic Power: 41.0 HP (30.6 kW) at delivery pressure of 1975 psi (136 bar)

Overall Efficiency

  • Fuel Efficiency at Standard PTO Speed (1000 rpm): 17.51 Hp.hr/gal (2.46 kW.h/l)
  • Fuel Consumption: 9.39 Gal/hr (35.54 l/h) at 2100 rpm



NTTL.(2016).Nebraska Summary: S1015 Massey Ferguson 7719 Diesel. Lincoln, NE:Nebraska Tractor Test Laboratory. Retrieved from https://digitalcommons.unl.edu/tr/actormuseumlit/3297
