Massey Ferguson 7718

Last Updated: July 2024

Overview

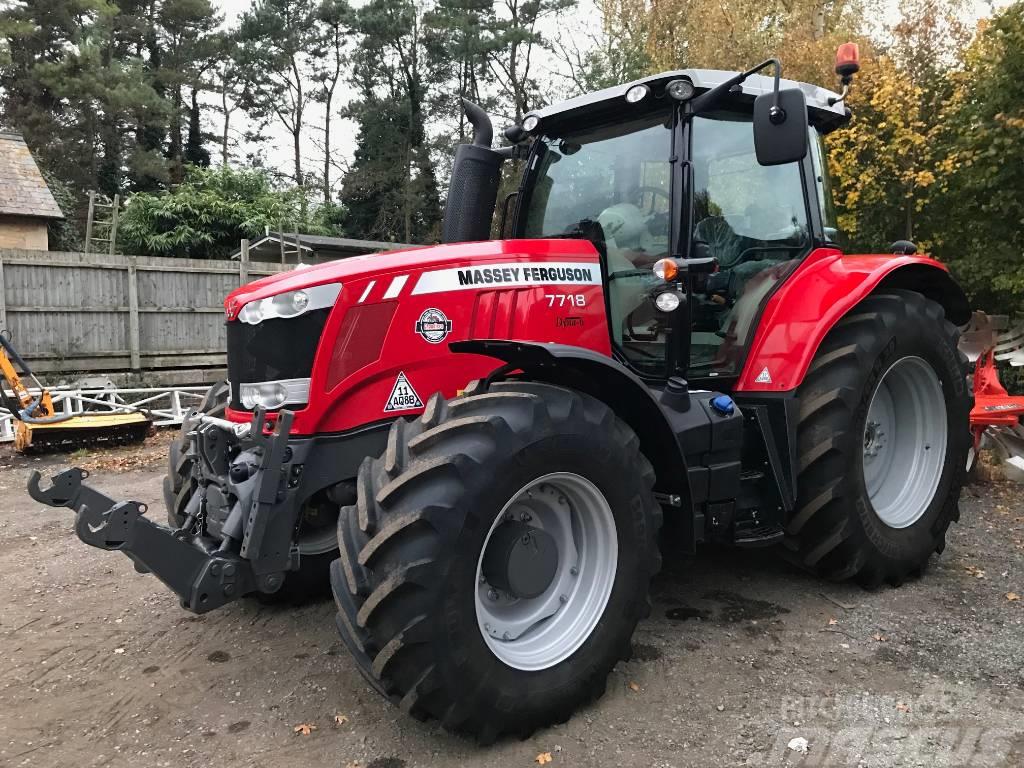

The Massey Ferguson 7718 is a robust row-crop tractor from the reputable 7700 Series, manufactured by Massey Ferguson (AGCO S.A. ZA, Avenue Blaise Pascal, 60026 Beauvais, Cedex, France). This model features a 4x4 MFWD 4WD chassis, power steering, and a turbocharged six-cylinder AGCO Power diesel engine with a displacement of 402 cubic inches, liquid cooling with an air-to-air intercooler and SCR system. The engine produces a maximum power output of 151.1 horsepower at the PTO and 2100 rated RPM. The transmission options include a 24-speed Dyna-6 power shift and a continuously-variable transmission (CVT) Dyna-VT. The tractor is equipped with heavy-duty agricultural tires (Front: Two 540/65R26, Rear: Two 650/65R38), and the rear tires have an adjustable tread width from 52.8" to 87.8". The wheelbase measures 113.2 inches. The hydraulic system features a closed center load sensing design with a maximum pump delivery rate of 51.9 GPM at maximum pressure. The 3-point hitch has a lift capacity of 11,270 lbs at the hitch points. Additional details include a 12-volt starting system, a one full-flow cartridge oil system, a two-paper-element air filter, and an 8-gallon DEF tank.
Show more...

Key Specifications

Category: Row Crop

Power Output: 151.1

Transmission: Power shift / Continuously-variable transmission (CVT)

Drive Type: MFWD 4WD

Fuel Type: Diesel

Lift Capacity: 11270 lbs at hitch points

Image Gallery

Massey Ferguson 7718 Tractor Massey Ferguson 7718 Tractor Massey Ferguson 7718 Tractor Massey Ferguson 7718 Tractor Massey Ferguson 7718 Tractor Massey Ferguson 7718 Tractor Massey Ferguson 7718 Tractor Massey Ferguson 7718 Tractor

Massey Ferguson 7718 vs. Similar Tractors

Power Output
Excellent
Greater than 95% of similar tractors.
Hitch Capacity
Average
Greater than 66% of similar tractors.

Technical Specifications

Engine

Manufacturer
AGCO Power
Model
-
Cooling Type
Liquid-cooled with air-to-air intercooler and SCR (Selective Catalytic Reduction)
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged air-to-air aftercooled
Cylinders
6
Displacement (ci)
402
Bore (in)
4.252
Stroke (in)
4.724
Rated RPM
2100
Power Output (hp)
151.1

Transmission

Type
Power shift / Continuously-variable transmission (CVT)
Forward Gears
24
Reverse Gears
24
Total Gears
-

Dimensions

Length (in)
-
Width (in)
-
Height (in)
-
Operating Weight (lb)
-

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
MFWD 4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
Rear Type: III/II
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
11270 lbs at hitch points
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Closed center load sensing (CCLS)

Test Results

Nebraska Tractor Test Laboratory - Test Date: May to August 2016

Maximum Power and Fuel Consumption

  • Maximum Power: 151.1 HP (111.9 kW) at 2100 rpm (PTO speed - 1034 rpm)
  • Fuel Consumption at Maximum Power: 9.02 Gal/hr (34.15 l/h) with a fuel efficiency of 0.39 lb/hp.hr (0.237 kg/kW.h)
  • DEF Consumption: 0.64 Gal/hr (2.46 l/h)

Drawbar Performance

  • Power at Rated Engine Speed (12th Gear): 126.6 HP (91.1 kW) with a drawbar pull of 9990 lbs (44.43 kN) and a speed of 5.08 mph (8.17 km/h)
  • Fuel Consumption at Rated Speed: 0.493 lb/hp.hr (0.304 kg/kW.h) with a fuel efficiency of 13.0 Hp.hr/gal (2.56 kW.h/l)

Torque and Engine Performance

  • Maximum Torque: 507 lb.-ft. (687 Nm) at 1400 rpm
  • Torque Rise: 47%

Hydraulic Performance

  • Maximum Force Exerted Through Whole Range: 8630 lbs (38.1 kN)
  • Pump Delivery Rate at Maximum Hydraulic Power: 25.3 GPM (95.6 l/min)
  • Hydraulic Power: 33 HP (24.6 kW) at delivery pressure of 2875 psi (198 bar)

Overall Efficiency

  • Fuel Efficiency at Standard PTO Speed (1000 rpm): 17.48 Hp.hr/gal (3.44 kW.h/l)
  • Fuel Consumption: 8.63 Gal/hr (32.44 l/h) at 2100 rpm

    Nebraska Tractor Test Lab.(2016).Nebraska Summary: S1063 Massey Ferguson 7718. Retrieved from https://digitalcommons.unl.edu/tractormuseumlit/3343
