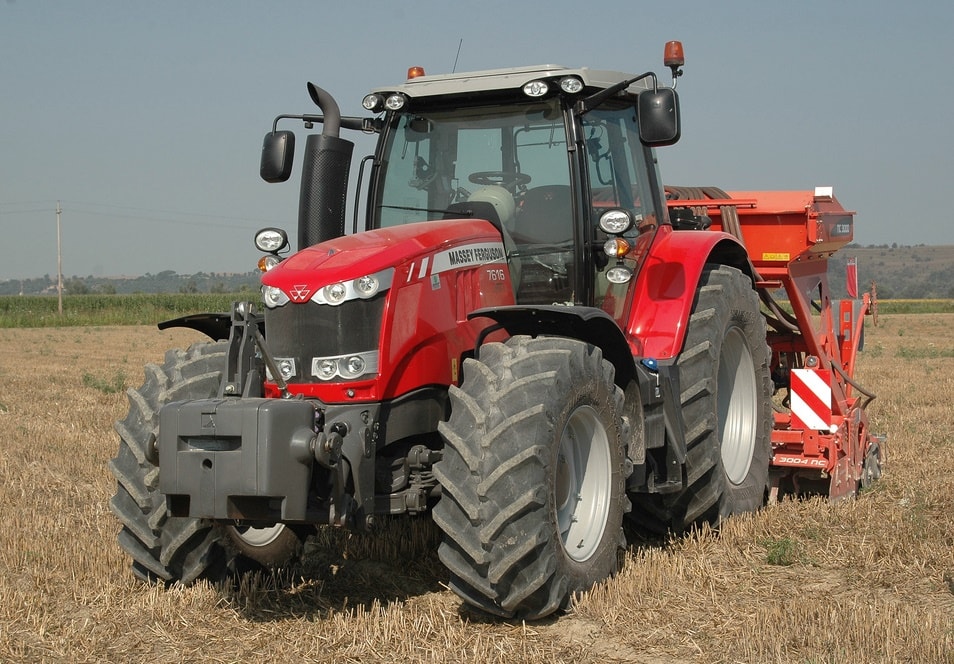

Massey Ferguson 7616

Last Updated: July 2024

Overview

The Massey Ferguson 7616 is a row-crop tractor with a 4x4 MFWD 4WD chassis, hydrostatic power steering, and a Continuously Variable Transmission (CVT) with infinite speed adjustments. It is powered by a 6-cylinder, 24-valve, liquid-cooled, turbocharged air-to-air aftercooled AGCO Power Diesel engine using No. 2 Diesel fuel and DEF. The engine has a displacement of 402 cubic inches, bore of 4.252 inches, stroke of 4.724 inches, and produces a maximum power output of 144.4 hp at 2002 rpm with a maximum torque of 456.0 lb-ft at 1205 rpm. Independent testing measured a maximum drawbar pull of 9215 lbs at 4.83 mph, fuel consumption rates, hydraulic performance, sound levels, and detailed specifications for lubricants, tire sizes, and dimensions. The unladen operating weight with operator is 17,000 lbs.
Show more...

Key Specifications

Category: Row Crop

Power Output: 144.4

Transmission: Continuously Variable Transmission (CVT)

Drive Type: 4WD

Operating Weight: 17000

Fuel Type: No. 2 Diesel

Image Gallery

Massey Ferguson 7616 Tractor Massey Ferguson 7616 Tractor Massey Ferguson 7616 Tractor Massey Ferguson 7616 Tractor Massey Ferguson 7616 Tractor Massey Ferguson 7616 Tractor Massey Ferguson 7616 Tractor Massey Ferguson 7616 Tractor Massey Ferguson 7616 Tractor Massey Ferguson 7616 Tractor

Massey Ferguson 7616 vs. Similar Tractors

Power Output
Average
Greater than 54% of similar tractors.
Operating Weight
Average
Greater than 60% of similar tractors.

Technical Specifications

Engine

Manufacturer
AGCO Power Diesel
Model
-
Cooling Type
liquid-cooled
Cylinder Orientation
-
Valve Configuration
24-valve
Fuel Type
No. 2 Diesel
Induction Type
turbocharged air-to-air aftercooled
Cylinders
6
Displacement (ci)
402
Bore (in)
4.252
Stroke (in)
4.724
Rated RPM
2100
Power Output (hp)
144.4

Transmission

Type
Continuously Variable Transmission (CVT)
Forward Gears
Infinite speed adjustments
Reverse Gears
Infinite speed adjustments
Total Gears
-

Dimensions

Length (in)
192.8
Width (in)
-
Height (in)
117.4
Operating Weight (lb)
17000

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
1000
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
2014
Hitch Type
Three-Point Hitch
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
Cab
Starter Type
Electric Starter
Brake Type
-
Hydraulic System Type
Closed Center Load Sensing

Test Results

Nebraska Tractor Test Laboratory - Test Dates: March to April 2013

Maximum Power and Fuel Consumption

  • Maximum Power: 144.4 HP (107.7 kW) at 2002 rpm
  • Fuel Consumption at Maximum Power: 8.38 Gal/hr (31.71 l/h) with a fuel efficiency of 0.404 lb/hp.hr (0.246 kg/kW.h)
  • DEF Consumption at Maximum Power: 0.40 Gal/hr (1.51 l/h)

Drawbar Performance

  • Power at Maximum Drawbar Pull (Turtle 8): 118.8 HP (88.6 kW) with a drawbar pull of 9215 lbs (41.0 kN) and a speed of 4.83 mph (7.78 km/h)
  • Fuel Consumption at Drawbar Pull: 0.481 lb/hp.hr (0.293 kg/kW.h) with a fuel efficiency of 14.40 Hp.hr/gal (2.84 kW.h/l)

Torque and Engine Performance

  • Maximum Torque: 456.0 lb.-ft. (618.2 Nm) at 1205 rpm
  • Torque Rise: 41.3% with a power increase at 2002 engine rpm of 12%

Hydraulic Performance

  • Maximum Force Exerted through the Whole Range: 11755 lbs (52.3 kN)
  • Pump Delivery Rate: 29.4 GPM (111.3 l/min) at minimum pressure and rated engine speed with a hydraulic power of 36.9 HP (27.5 kW) at a delivery pressure of 2290 psi (158 bar)

Overall Efficiency

  • Fuel Efficiency at Standard PTO Speed (1000 rpm): 16.91 Hp.hr/gal (3.33 kW.h/l)
  • Fuel Consumption: 8.20 Gal/hr (31.04 l/h) at 2035 rpm



NTTL.(2013).Nebraska Summary: S911 Massey Ferguson 7616. Lincoln, NE: Nebraska Tractor Test Laboratory. Retrieved from https://digitalcommons.unl.edu/tractormuseumlit/3009
