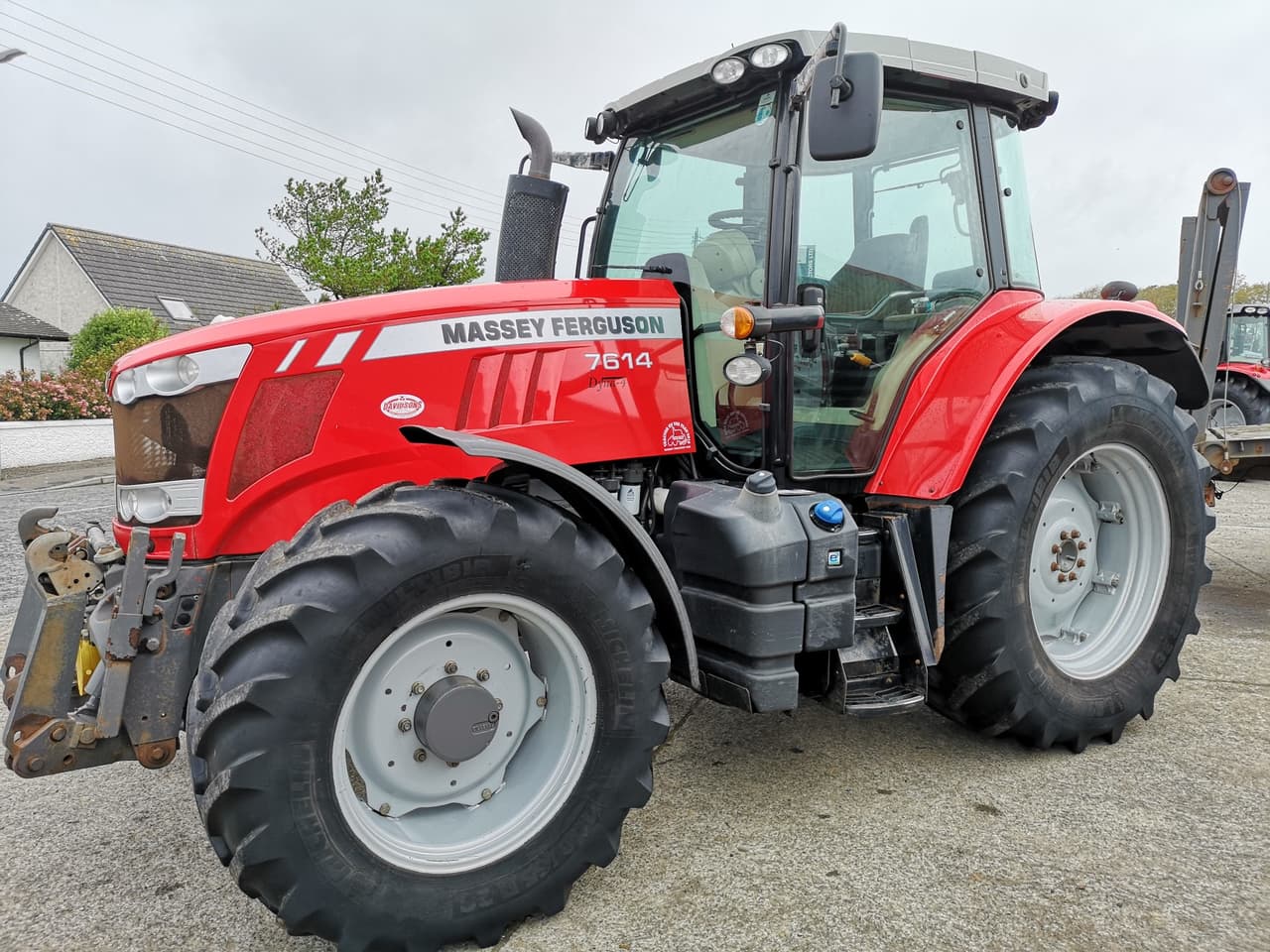

Massey Ferguson 7614

Last Updated: July 2024

Overview

The Massey Ferguson 7614 is a row-crop tractor manufactured by Massey Ferguson from 2013 to 2014. It features a 4-wheel drive chassis with mechanical front-wheel drive and hydrostatic power steering. The tractor is powered by a Sisu-produced 6-cylinder, 24-valve, liquid-cooled, turbocharged, and air-to-air aftercooled diesel engine with a displacement of 402 cubic inches. According to independent test results, the engine produces a maximum power output of 135.6 hp at 2002 rpm and a maximum torque of 438 lb-ft at 1200 rpm. The transmission is a selective gear fixed ratio with partial (4) range operator-controlled powershift, offering 16 forward and 16 reverse gears. Key dimensions include a length of 192.8 inches, a height of 117.4 inches, and a wheelbase of 113.2 inches. The operating weight is 14,085 lbs with front-wheel drive engaged. Additional features include multiple wet disc hydraulically operated brakes, rear tires (520/85R38), and front tires (420/85R28). Fuel consumption and DEF consumption rates, as well as detailed cooling, exhaust, lubrication, and air cleaner specifications, are available in the test results.
Show more...

Key Specifications

Category: Row Crop

Power Output: 135.6

Transmission: Selective gear fixed ratio with partial (4) range operator controlled powershift

Drive Type: MFWD (Mechanical Front Wheel Drive)

Operating Weight: 14085

Fuel Type: Diesel (No. 2 Diesel with Specific gravity converted to 60°/60°F (15°/15°C) 0.837)

Image Gallery

Massey Ferguson 7614 Tractor Massey Ferguson 7614 Tractor Massey Ferguson 7614 Tractor Massey Ferguson 7614 Tractor Massey Ferguson 7614 Tractor Massey Ferguson 7614 Tractor Massey Ferguson 7614 Tractor Massey Ferguson 7614 Tractor

Massey Ferguson 7614 vs. Similar Tractors

Power Output
Average
Greater than 42% of similar tractors.
Hitch Capacity
Above Average
Greater than 79% of similar tractors.
Operating Weight
Average
Greater than 60% of similar tractors.

Technical Specifications

Engine

Manufacturer
Sisu
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
24-valve
Fuel Type
Diesel (No. 2 Diesel with Specific gravity converted to 60°/60°F (15°/15°C) 0.837)
Induction Type
Turbocharged and Air-to-air aftercooled
Cylinders
6
Displacement (ci)
402.0
Bore (in)
4.252
Stroke (in)
4.724
Rated RPM
2100
Power Output (hp)
135.6

Transmission

Type
Selective gear fixed ratio with partial (4) range operator controlled powershift
Forward Gears
16
Reverse Gears
16
Total Gears
-

Dimensions

Length (in)
192.8
Width (in)
-
Height (in)
117.4
Operating Weight (lb)
14085

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
MFWD (Mechanical Front Wheel Drive)
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
2014
Hitch Type
Category III
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
9800
Operator Station Type
Cab
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Closed-center load sensing (CCLS)

Test Results

Nebraska Tractor Test Laboratory - Test Date: April to May, 2012

Maximum Power and Fuel Consumption

  • Maximum Power at Rated Engine Speed: 135.6 HP (101.1 kW) at 2002 rpm
  • Fuel Consumption at Maximum Power: 7.76 Gal/hr (29.38 l/h) with a fuel efficiency of 0.399 lb/hp.hr (0.243 kg/kW.h)
  • DEF Consumption: 0.36 Gal/hr (1.36 l/h)
  • Maximum Torque: 438 lb.-ft. (594 Nm) at 1200 rpm

Drawbar Performance

  • Maximum Power (9th Gear): 100.6 HP (75.0 kW) with a drawbar pull of 6320 lbs (28.1 kN) and a speed of 5.97 mph (9.60 km/h)
  • 75% of Pull at Maximum Power (9th Gear): 76.0 HP (56.7 kW) with a drawbar pull of 4725 lbs (21.0 kN) and a speed of 6.03 mph (9.71 km/h)
  • 50% of Pull at Maximum Power (9th Gear): 49.2 HP (36.7 kW) with a drawbar pull of 3050 lbs (13.6 kN) and a speed of 6.05 mph (9.74 km/h)

Hydraulic Performance

  • Maximum Force Exerted: 9305 lbs (41.4 kN) at hitch points
  • Pump Delivery Rate at Minimum Pressure (Two Outlet Sets Combined): 25.1 GPM (94.9 l/min)
  • Maximum Hydraulic Power: 29.6 HP (22.1 kW) at a delivery pressure of 2170 psi (149 bar)

Overall Efficiency

  • Fuel Efficiency at Standard PTO Speed (1000 rpm): 17.40 Hp.hr/gal (3.43 kW.h/l)
  • Fuel Consumption for Varying Power Output:
  • 121.2 HP at 2101 rpm: 7.32 Gal/hr (27.72 l/h)
  • 104.5 HP at 2121 rpm: 6.44 Gal/hr (24.39 l/h)
  • 78.7 HP at 2128 rpm: 5.32 Gal/hr (20.14 l/h)



Nebr aska T ractor Test Lab. (2012). Nebr aska Summary: S898 Masse y Ferguson 7614. Lincoln, NE: Nebraska Tractor Test Laboratory. Retrieved from https://digitalcommons.unl.edu/tractormuseumlit/3036
