Massey Ferguson 7499

Last Updated: July 2024

Overview

The Massey Ferguson 7499 is a tractor model produced by Massey Ferguson from 2009 to 2012, featuring an AGCO Sisu Power 74 CTA six-cylinder, 24-valve, turbocharged, air-to-air intercooled diesel engine with a liquid-cooling system. This engine has a displacement of 449 ci (7.4 L) and provides a rated power of 196.63 hp at 2200 rpm, with the capability to reach a maximum power output of 217.30 hp for 1 hour. It operates with an electric starter system and is equipped with a Dyna-VT continuously variable transmission (CVT) with infinite forward and reverse (two-range) gear options. The tractor has a wheelbase of 118 inches, with rear tread widths ranging from 60.6" to 119.9" and front tread widths from 60.9" to 88.8". The overall operating weight with an operator is 17860 lbs. The tractor features a closed-center hydraulic system with detailed delivery rates, pressures, and lift capacities provided in the test results. It has a Category 3 rear hitch with comprehensive hitch point dimensions. The tractor uses AGCO Power Fluid 821 XL fluid for transmission and hydraulics, and AGCO Gear Lube 715 SAE 80W90 for the front axle. It has an air cleaner with two paper elements and an aspirator, and an oil filter as one full flow cartridge. The steering is hydrostatic, and the brakes are wet multiple disc hydraulically actuated by two foot pedals. Detailed fuel consumption, efficiency figures, and various other operational parameters are provided in the test results.

Key Specifications

Power Output: 196.63

Transmission: Continuously Variable Transmission (CVT)

Operating Weight: 17860

Fuel Type: Diesel

Image Gallery

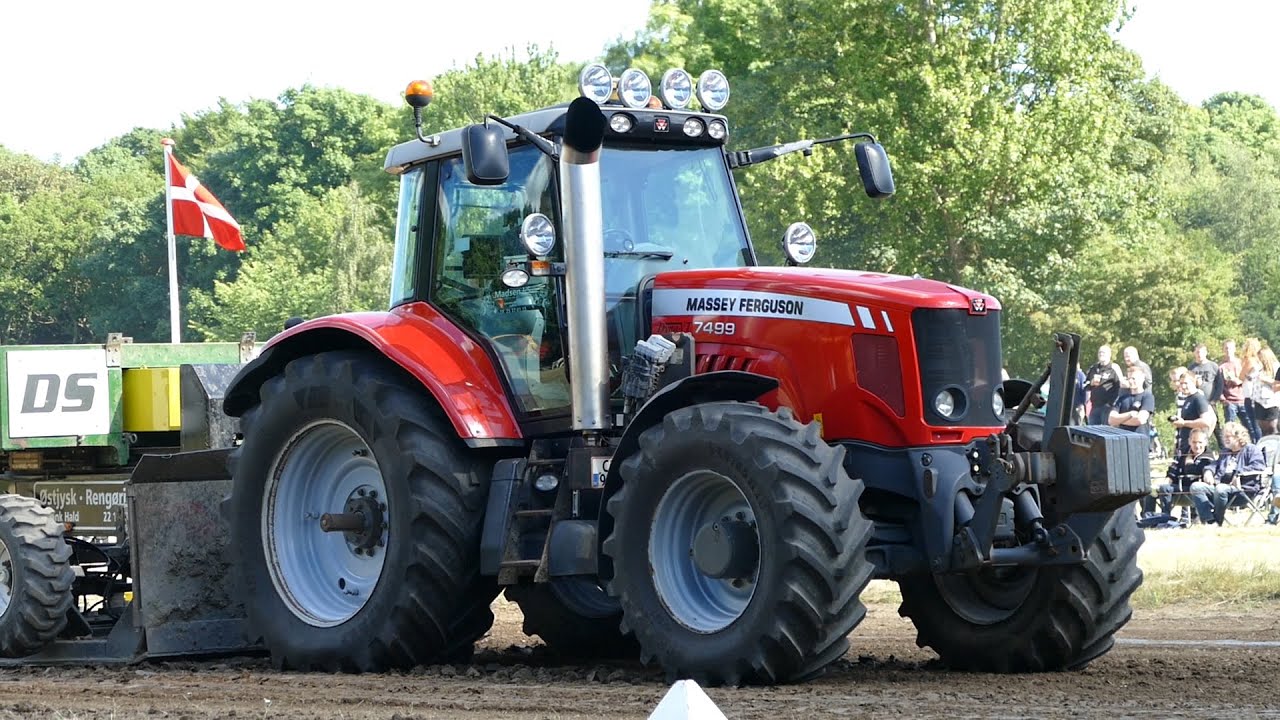

Massey Ferguson 7499 Tractor

Technical Specifications

Engine

Manufacturer: AGCO Sisu Power
Model: 74 CTA
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: 24-valve
Fuel Type: Diesel
Induction Type: Turbocharged air-to-air intercooled
Cylinders: 6
Displacement (ci): 449
Bore (in): 4.252
Stroke (in): 5.276
Rated RPM: 2200
Power Output (hp): 196.63

Transmission

Type: Continuously Variable Transmission (CVT)
Forward Gears: Infinite (two-range)
Reverse Gears: Infinite (two-range)
Total Gears: -

Dimensions

Length (in): 210
Width (in): 60.6 - 119.9 (Rear tread width), 60.9 - 88.8 (Front tread width)
Height (in): 120
Operating Weight (lb): 17860

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: -
Drive Type: -
Steering Type: -
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: -
Manufacture - End Year: 2012
Hitch Type: -
Hitch Category: Category 3
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: Cab
Starter Type: Electric
Brake Type: -
Hydraulic System Type: Closed center

Test Results

Nebraska Tractor Test Laboratory - Test Date: June 20 to 22, 2012

Maximum Power and Fuel Consumption

Rated Engine Speed (PTO speed—1082 rpm):
Power: 196.63 HP (146.63 kW) at 2201 rpm
Fuel Consumption: 12.02 Gal/hr (45.48 l/h) with a fuel efficiency of 0.431 lb/hp.hr (0.262 kg/kW.h)
Fuel Efficiency: 16.36 Hp.hr/gal (3.22 kW.h/l)
Standard Power Take-off Speed (1000 rpm):
Power: 215.27 HP (160.52 kW) at 2034 rpm
Fuel Consumption: 12.44 Gal/hr (47.07 l/h) with a fuel efficiency of 0.408 lb/hp.hr (0.248 kg/kW.h)
Fuel Efficiency: 17.31 Hp.hr/gal (3.41 kW.h/l)
Maximum Power (1 Hour):
Power: 217.30 HP (162.04 kW) at 2002 rpm
Fuel Consumption: 12.47 Gal/hr (47.22 l/h) with a fuel efficiency of 0.405 lb/hp.hr (0.246 kg/kW.h)
Fuel Efficiency: 17.42 Hp.hr/gal (3.43 kW.h/l)

Drawbar Performance

Maximum Power (4.7 mph)
Power: 162.36 HP (121.07 kW)
Drawbar Pull: 13560 lbs (60.32 kN)
Speed: 4.49 mph (7.23 km/h)
Fuel Consumption: 0.531 lb/hp.hr (0.323 kg/kW.h) with a fuel efficiency of 13.30 Hp.hr/gal (2.62 kW.h/l)
75% of Pull at Maximum Power (4.7 mph)
Power: 122.50 HP (91.35 kW)
Drawbar Pull: 10098 lbs (44.92 kN)
Speed: 4.55 mph (7.32 km/h)
Fuel Consumption: 0.582 lb/hp.hr (0.354 kg/kW.h) with a fuel efficiency of 12.13 Hp.hr/gal (2.39 kW.h/l)
50% of Pull at Maximum Power (4.7 mph)
Power: 83.17 HP (62.02 kW)
Drawbar Pull: 6774 lbs (30.13 kN)
Speed: 4.61 mph (7.41 km/h)
Fuel Consumption: 0.638 lb/hp.hr (0.388 kg/kW.h) with a fuel efficiency of 11.07 Hp.hr/gal (2.18 kW.h/l)

Torque and Engine Performance

Maximum Torque: 690 lb.-ft. (936 Nm) at 1400 rpm
Torque Rise: 47.3%
Torque Rise at 1800 rpm: 31%
Power Increase at 2002 rpm: 10.5%

Hydraulic Performance

Maximum Force Exerted: 14283 lbs (63.5 kN)
Pump Delivery Rate: 30.0 GPM (113.6 l/min) at minimum pressure and rated engine speed
Hydraulic Power: 47.0 HP (35.0 kW) at delivery pressure of 2730 psi (188 bar)

Overall Efficiency

Fuel Efficiency at Standard PTO Speed (1000 rpm): 17.31 Hp.hr/gal (3.41 kW.h/l)
Fuel Consumption at Rated Speed: 12.02 Gal/hr (45.48 l/h) at 2201 rpm

Nebraska Tractor Test Lab, "Test 2032: Massey Ferguson 7499" (2012). Nebraska Tractor Tests. 2437. Retrieved from https://digitalcommons.unl.edu/tractormuseumlit/2437.
