Massey Ferguson 699

Last Updated: June 2024

Overview

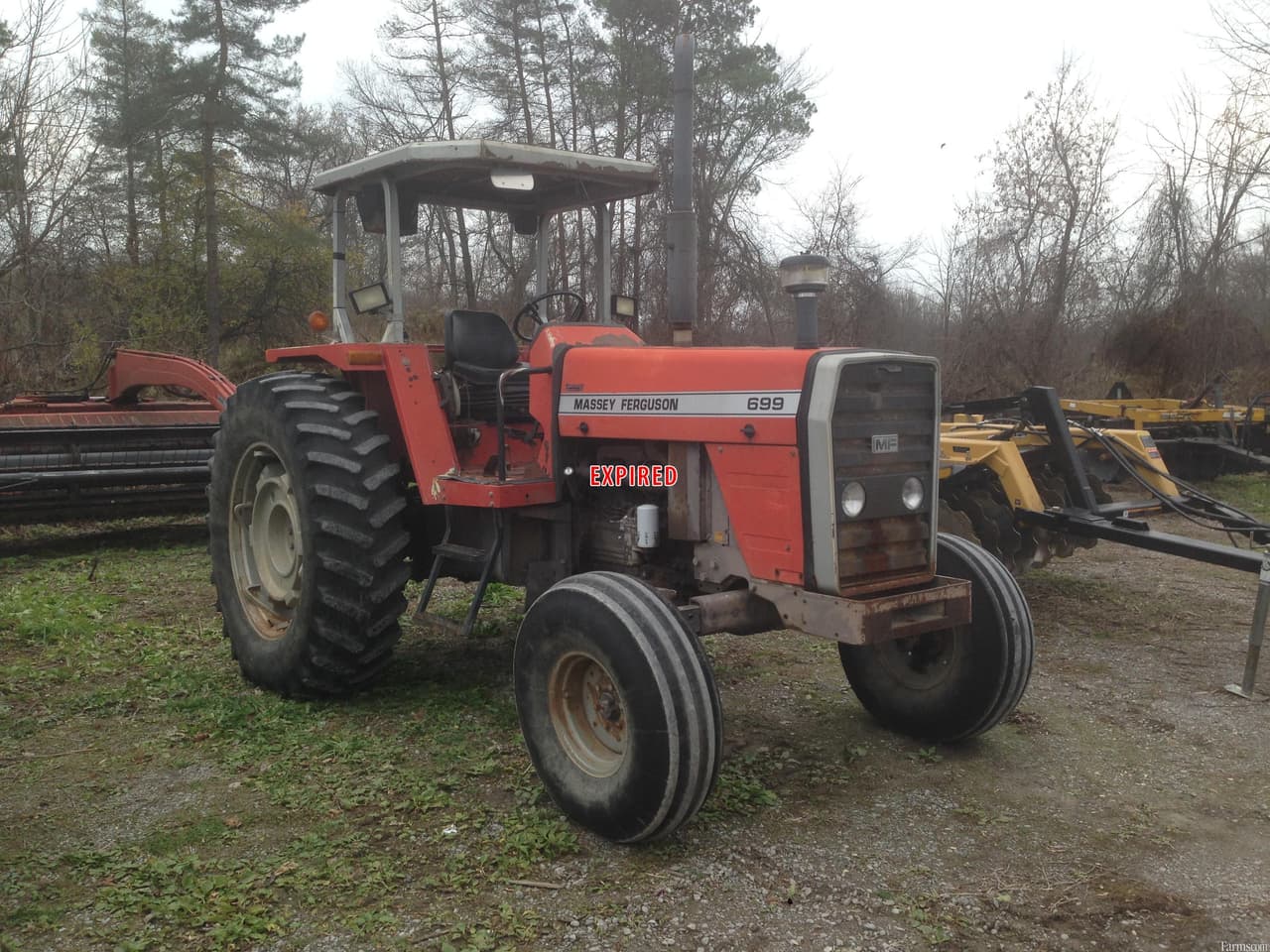

The Massey Ferguson 699, a utility tractor produced between 1984 and 1986, delivers a robust performance thanks to its 95 horsepower (71 kw) Perkins diesel engine. It boasts a 354 cubic inch, 6-cylinder liquid-cooled engine with a bore and stroke of 3.875x5.00 inches, running at a rated RPM of 2200. Notably, this tractor is set up with a 4x2 2WD chassis and power steering for easier operation. Its manual transmission facilitates 12 forward and 4 reverse gears with a dry disc clutch. The tractor was well-received in its time for its powerful capabilities in utility tasks and operated with a substantial weight of 10,325 lbs, ensuring stability during work. The tractor's tires are sized at 10.00-16 in the front and 18.4-34 in the rear, indicative of its agricultural application. While certain specifications such as the exact dimensions and tire details remain unknown, the Massey Ferguson 699's reputation is indicative of its firm standing in its category as a reliable utility vehicle.
Show more...

Key Specifications

Category: Utility

Power Output: 95

Transmission: manual

Drive Type: 2WD

Operating Weight: 10,325

Fuel Type: diesel

Massey Ferguson 699 vs. Similar Tractors

Power Output
Above Average
Greater than 80% of similar tractors.
Operating Weight
Poor
Greater than 5% of similar tractors.

Technical Specifications

Engine

Manufacturer
Perkins
Model
-
Cooling Type
liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
diesel
Induction Type
naturally aspirated
Cylinders
6
Displacement (ci)
354
Bore (in)
3.875
Stroke (in)
5
Rated RPM
2200
Power Output (hp)
95

Transmission

Type
manual
Forward Gears
12
Reverse Gears
4
Total Gears
-

Dimensions

Length (in)
-
Width (in)
-
Height (in)
-
Operating Weight (lb)
10,325

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag (Agricultural)
Manufacture - End Year
1986
Hitch Type
-
Hitch Category
II
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
electric
Brake Type
-
Hydraulic System Type
open center
