Massey Ferguson 6715S

Last Updated: July 2024

Overview

The Massey Ferguson 6715S is a robust tractor from the 6700S Series manufactured since 2017. It is equipped with a 299 cubic inch, 4-cylinder AGCO S.A.S engine that is both turbocharged and intercooled, with a bore of 4.252 inches and a stroke of 5.276 inches. This engine delivers a rated power of 144 hp at 2100 RPM, with a maximum torque of 456 lb-ft at 1400 RPM. The tractor features a Dyna-4 power shift transmission with 16 forward and 16 reverse gears. The 6715S model adheres to Tier IV emission standards using selective catalytic reduction (SCR) and a high-pressure common rail direct injection fuel system. This model has an unladen weight of 14,495 lbs and is liquid-cooled, ensuring efficiency and reliability. With its significant power and torque, it is suitable for a wide range of heavy-duty tasks in agricultural setups.

Key Specifications

Power Output: 144

Transmission: Dyna-4 Power Shift

Operating Weight: 14495

Fuel Type: Diesel

Image Gallery

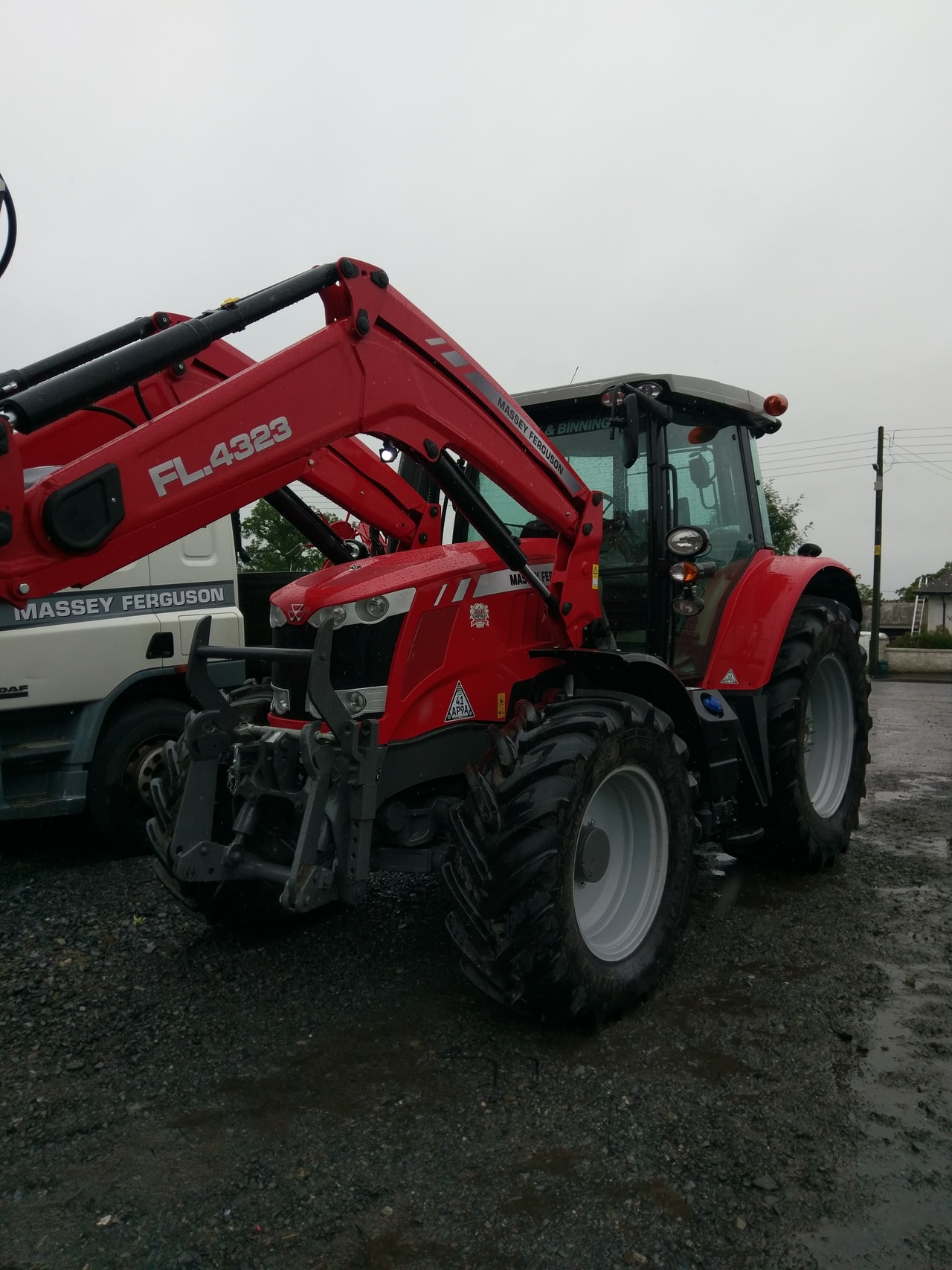

Massey Ferguson 6715S Tractor

Technical Specifications

Engine

Manufacturer: AGCO S.A.S
Model: -
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Turbocharged, Intercooled
Cylinders: 4
Displacement (ci): 299
Bore (in): -
Stroke (in): -
Rated RPM: 2100
Power Output (hp): 144

Transmission

Type: Dyna-4 Power Shift
Forward Gears: 16
Reverse Gears: 16
Total Gears: 16

Dimensions

Length (in): -
Width (in): 72
Height (in): 117 (With Cab)
Operating Weight (lb): 14495

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: -
Drive Type: -
Steering Type: -
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: -
Manufacture - End Year: -
Hitch Type: III/II
Hitch Category: Category 3
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: Electric
Brake Type: -
Hydraulic System Type: Open Center

Test Results

Nebraska Tractor Test Laboratory - Test Date: October 2016

Maximum Power and Fuel Consumption

Maximum Power: 144.0 HP (107.4 kW) at 1901 rpm
Fuel Consumption at Maximum Power: 8.50 Gal/hr (32.18 l/h) with a fuel efficiency of 0.416 lb/hp.hr (0.253 kg/kW.h)
DEF Consumption: Not specified

Drawbar Performance

Power at Rated Engine Speed (9th Gear): 111.7 HP (83.3 kW) with a drawbar pull of 7050 lbs (31.4 kN) and a speed of 5.80 mph (9.34 km/h)
Fuel Consumption at Rated Speed: 0.428 lb/hp.hr (0.260 kg/kW.h) with a fuel efficiency of 13.16 Hp.hr/gal (2.60 kW.h/l)

Torque and Engine Performance

Maximum Torque: 457 lb.-ft. (619 Nm) at 1503 rpm
Torque Rise: 57.8% with a power increase at 1901 rpm of 0.7%

Hydraulic Performance

Maximum Force Exerted: 9670 lbs (43.0 kN)
Pump Delivery Rate: 27.0 GPM (102.2 l/min) at minimum pressure and rated engine speed
Hydraulic Power: 42.9 HP (32.0 kW) at delivery pressure of 2720 psi (187 bar)

Overall Efficiency

Fuel Efficiency at Standard PTO Speed (1000 rpm): 16.28 Hp.hr/gal (3.64 kW.h/l)
Fuel Consumption: 8.17 Gal/hr (30.92 l/h) at 2029 rpm

NTTL.(2017). OECD tractor test 3031 for Massey Ferguson 6715 Dyna 4 Diesel. Lincoln, NE: Nebraska Tractor Test Laboratory. Retrieved from http://tractortestlab.unl.edu
