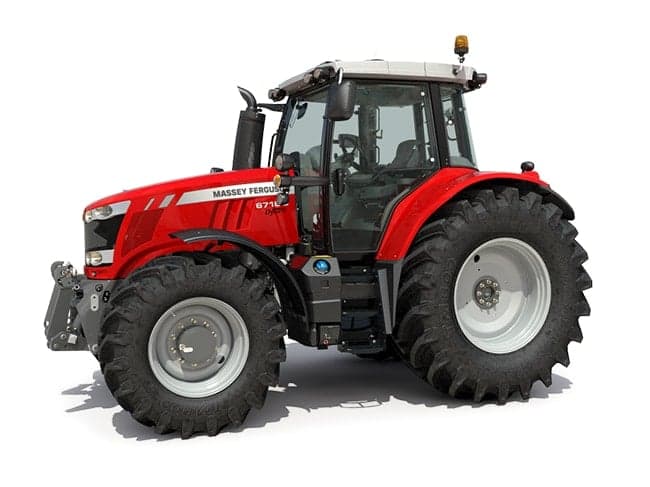

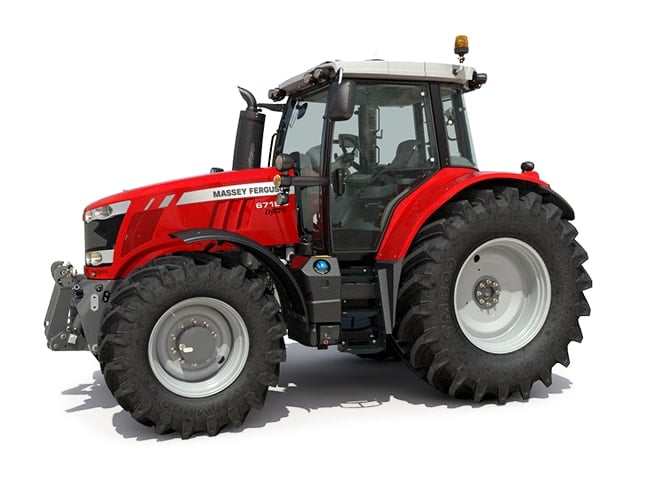

Massey Ferguson 6712

Last Updated: June 2024

Overview

The Massey Ferguson 6712 is part of AGCO's 6700 series, notable for its robust build and suitable for a variety of tasks ranging from small farm operations to professional agricultural work. It utilizes an AGCO Power 4-cylinder intercooled turbocharged diesel engine with a displacement of 268.5 cubic inches. The engine produces a horsepower range from 115 hp to a maximum of 120 hp and an impressive torque of 510 lb-ft, which is accessible at just 1500 RPM due to its high-pressure common rail direct fuel injection system. It meets Tier IV emissions standards through the use of a selective catalytic reduction (SCR) system. The power shuttle transmission with wet disc clutch provides 12 forward and reverse gears suitably designed for a range of tasks, complemented by an open center hydraulic system. Production began in 2017, and the specific end year of manufacture is not listed. The tractor's weight varies slightly depending on whether it's equipped with ROPS or a cab, sounding off at 8840 lbs and 9017 lbs respectively. With a width of approximately 70.7 inches and a wheelbase of 98.4 inches, this tractor provides stability and maneuverability for different farming requirements.
Show more...

Key Specifications

Power Output: 115

Transmission: Power shuttle

Operating Weight: 8840 to 9017

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
AGCO Power
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Intercooled turbocharged
Cylinders
4
Displacement (ci)
268.5
Bore (in)
4.25
Stroke (in)
4.72
Rated RPM
2200
Power Output (hp)
115

Transmission

Type
Power shuttle
Forward Gears
12
Reverse Gears
12
Total Gears
-

Dimensions

Length (in)
-
Width (in)
70.7*
Height (in)
-
Operating Weight (lb)
8840 to 9017

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open center
