Massey Ferguson 6614

Last Updated: July 2024

Overview

The Massey Ferguson 6614 specifications have been updated based on independent test results from the Nebraska Tractor Test Laboratory. Key changes include accurate operating weight, weight distribution, engine displacement in ml, maximum torque, torque rise, compression ratio, transmission gear ranges, hydraulic system performance details, fuel and DEF consumption rates, drawbar and PTO performance data, and other missing details like drawbar height and starting system voltage.

Key Specifications

Power Output: 130

Transmission: Continuously Variable Transmission (CVT)

Drive Type: 4WD

Operating Weight: 15930

Fuel Type: Diesel

Image Gallery

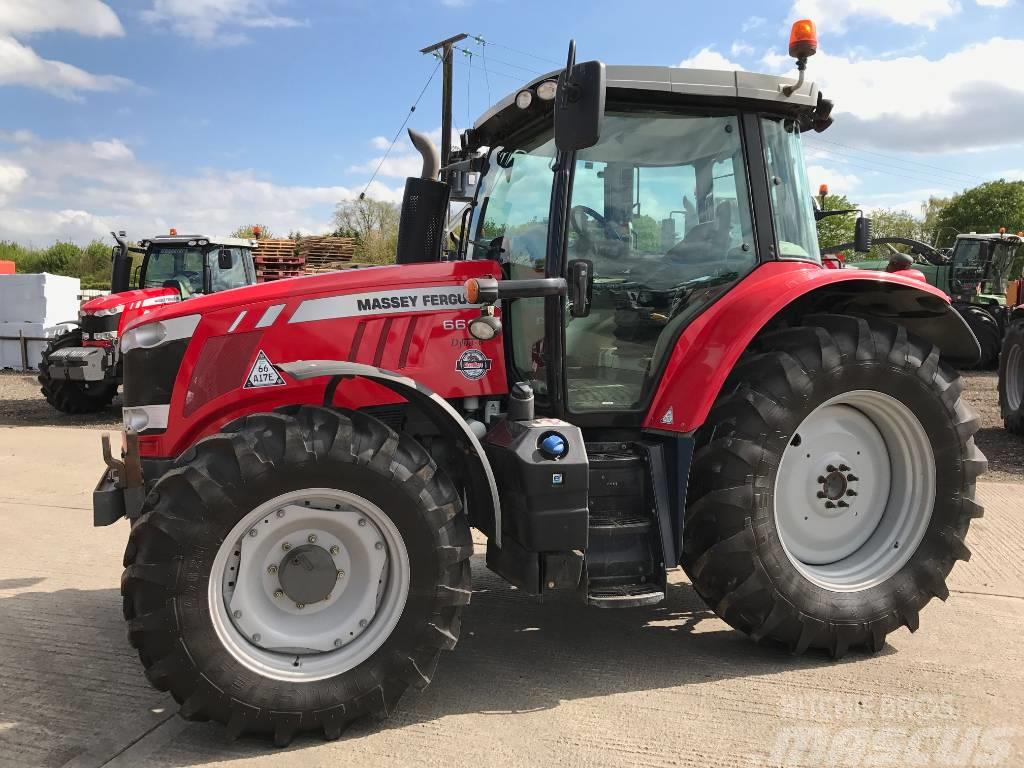

Massey Ferguson 6614 Tractor

Technical Specifications

Engine

Manufacturer: AGCO Power
Model: -
Cooling Type: Liquid-Cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Turbocharged and Intercooled
Cylinders: 4
Displacement (ci): 299
Bore (in): 4.252
Stroke (in): 5.276
Rated RPM: 2200
Power Output (hp): 130

Transmission

Type: Continuously Variable Transmission (CVT)
Forward Gears: Two mechanical ranges with specified speeds
Reverse Gears: Two mechanical ranges with specified speeds
Total Gears: -

Dimensions

Length (in): 184.7
Width (in): -
Height (in): 115.5 (with cab)
Operating Weight (lb): 15930

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4WD
Drive Type: 4WD
Steering Type: Hydraulic Power
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: -
Manufacture - End Year: -
Hitch Type: Category 3
Hitch Category: III
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: Electric
Brake Type: -
Hydraulic System Type: Open Center

Test Results

Nebraska Tractor Test Laboratory - Test Date: August to September, 2013

Maximum Power and Fuel Consumption

Rated Engine Speed (1079 PTO rpm): 110.0 HP (82.0 kW) at 2198 rpm
Maximum Power (1 hour): 123.0 HP (91.7 kW) at 2002 rpm
Fuel Consumption at Maximum Power: 7.08 Gal/hr (26.79 l/h) with a fuel efficiency of 0.402 lb/hp.hr (0.244 kg/kW.h)
DEF Consumption at Maximum Power: 0.30 Gal/hr (1.14 l/h)

Drawbar Performance

Maximum Drawbar Power in Turtle 8 Gear: 96.6 HP (72.0 kW) with a drawbar pull of 7600 lbs (33.8 kN) at 4.77 mph (7.67 km/h)
Fuel Consumption in Turtle 8 Gear: 0.501 lb/hp.hr (0.305 kg/kW.h) with a fuel efficiency of 13.81 Hp.hr/gal (2.72 kW.h/l)

Torque and Engine Performance

Maximum Torque: 409 lb.-ft. (555 Nm) at 1300 rpm
Torque Rise: 55.7%
Power Increase at 2002 rpm: 11%

Hydraulic Performance

Maximum Force Exerted: 11755 lbs (52.3 kN) at hitch points
Pump Delivery Rate: 31.3 GPM (118.5 l/min) at minimum pressure and rated engine speed
Hydraulic Power: 39.4 HP (29.4 kW) at delivery pressure of 2320 psi (160 bar)

Overall Efficiency

Fuel Efficiency at Standard PTO Speed (1000 rpm): 17.05 Hp.hr/gal (3.36 kW.h/l)
Fuel Consumption at Standard PTO Speed: 6.98 Gal/hr (26.41 l/h) at 2035 rpm

Nebraska Tractor Test Lab.(2013).Nebraska Summary: S916 Massey Ferguson 6614. Lincoln, NE:Nebraska Tractor Test Laboratory. Retrieved from https://digitalcommons.unl.edu/tractormuseumlit/2990
