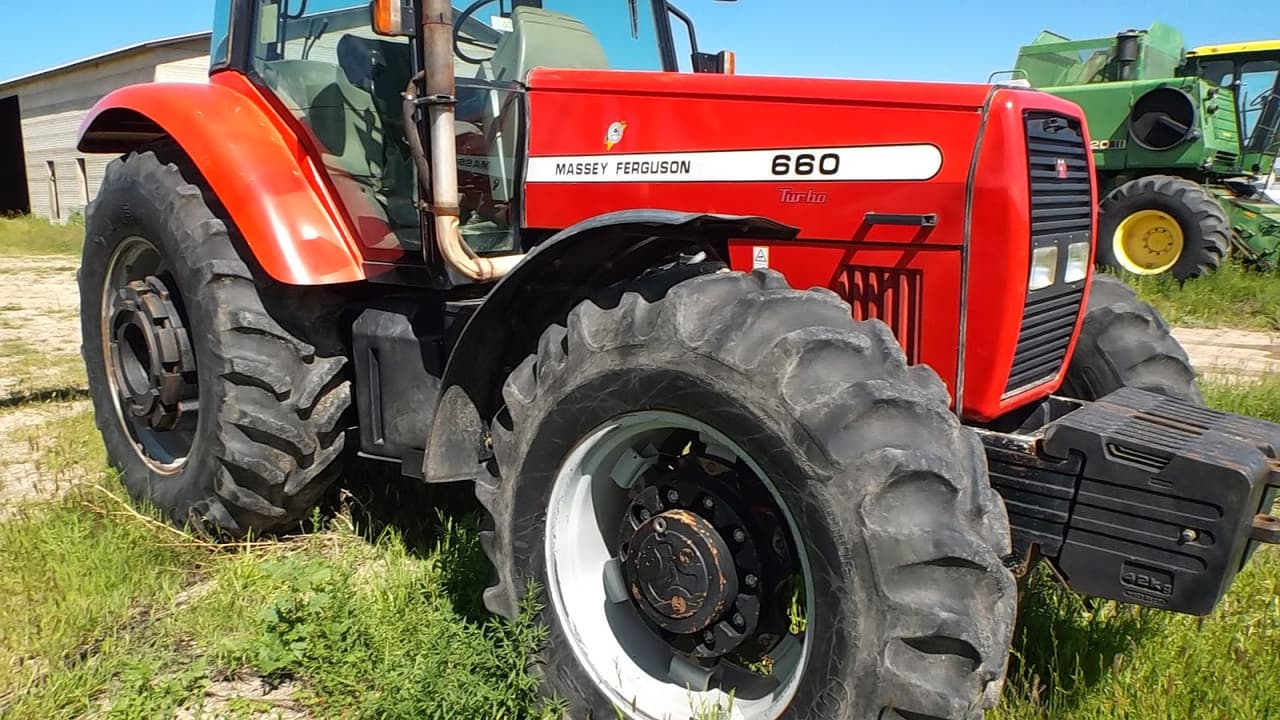

Massey Ferguson 660

Last Updated: June 2024

Overview

The Massey Ferguson 660 row-crop tractor is a robust machine designed for a variety of farming duties. It is powered by a 150 hp (111.9 kW) Perkins 1006.6T turbocharged diesel engine, which provides ample power for demanding tasks. This tractor features a synchronized transmission with 12 forward and 5 reverse gears, allowing for efficient operation across different soil conditions. With a liquid-cooled engine, the MF 660 ensures reliability even under prolonged work periods. The wheelbase of 115.8 inches contributes to stability, and the tractor's weight varies from 13,228 lbs with ROPS to 14,054 lbs with a cab. The tractor is outfitted with standard agricultural tires, front size 14.9-28 and rear size 18.4-38, contributing to its adaptability in various terrains. The tractor's length is 191 inches, and its maximum height with cab is 117.3 inches. Despite being a tier 0 emissions rating, it serves well where stringent environmental controls are not in place. The operator can enjoy the benefit of a choice between open station or cab setups, ensuring comfort in varied working environments.
Show more...

Key Specifications

Category: Row Crop

Power Output: 150

Transmission: Synchronized

Drive Type: 2WD

Operating Weight: 14054 (cab weight)

Fuel Type: Diesel

Massey Ferguson 660 vs. Similar Tractors

Power Output
Average
Greater than 54% of similar tractors.
Operating Weight
Average
Greater than 57% of similar tractors.

Technical Specifications

Engine

Manufacturer
Perkins
Model
1006.6T
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
6
Displacement (ci)
365.3
Bore (in)
3.937
Stroke (in)
5
Rated RPM
2200
Power Output (hp)
150

Transmission

Type
Synchronized
Forward Gears
12
Reverse Gears
5
Total Gears
-

Dimensions

Length (in)
191
Width (in)
-
Height (in)
117.3 (cab height)
Operating Weight (lb)
14054 (cab weight)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Standard (agricultural)
Manufacture - End Year
-
Hitch Type
-
Hitch Category
II
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
ROPS/Cab
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
