Massey Ferguson 6485

Last Updated: July 2024

Overview

The Massey Ferguson 6485 is a row-crop tractor manufactured by AGCO S.A. in Beauvais, France. It features a Sisu 6.6 L, 6-cylinder turbocharged and intercooled diesel engine, delivering up to 175.4 horsepower at 2000 RPM. The tractor has a selective gear fixed ratio transmission with partial (6) range operator-controlled powershift, offering 24 forward and reverse gears. With a 2WD chassis, hydrostatic steering, and an operating weight of 16305 pounds, it's designed for versatile farm operations. The hydraulic system boasts a maximum force of 14905 lbs and a pump delivery rate of 30.5 GPM at minimum pressure. The tractor demonstrates excellent fuel efficiency, particularly at standard PTO speed (1000 rpm) with 18.00 Hp.hr/gal. Notable features include multiple wet disc hydraulically operated brakes and a cab sound level of 69.0 dB(A).
Show more...

Key Specifications

Category: Row Crop

Power Output: 175.4

Transmission: Selective gear fixed ratio with partial (6) range operator-controlled powershift

Drive Type: 2WD

Operating Weight: 16305

Fuel Type: Diesel

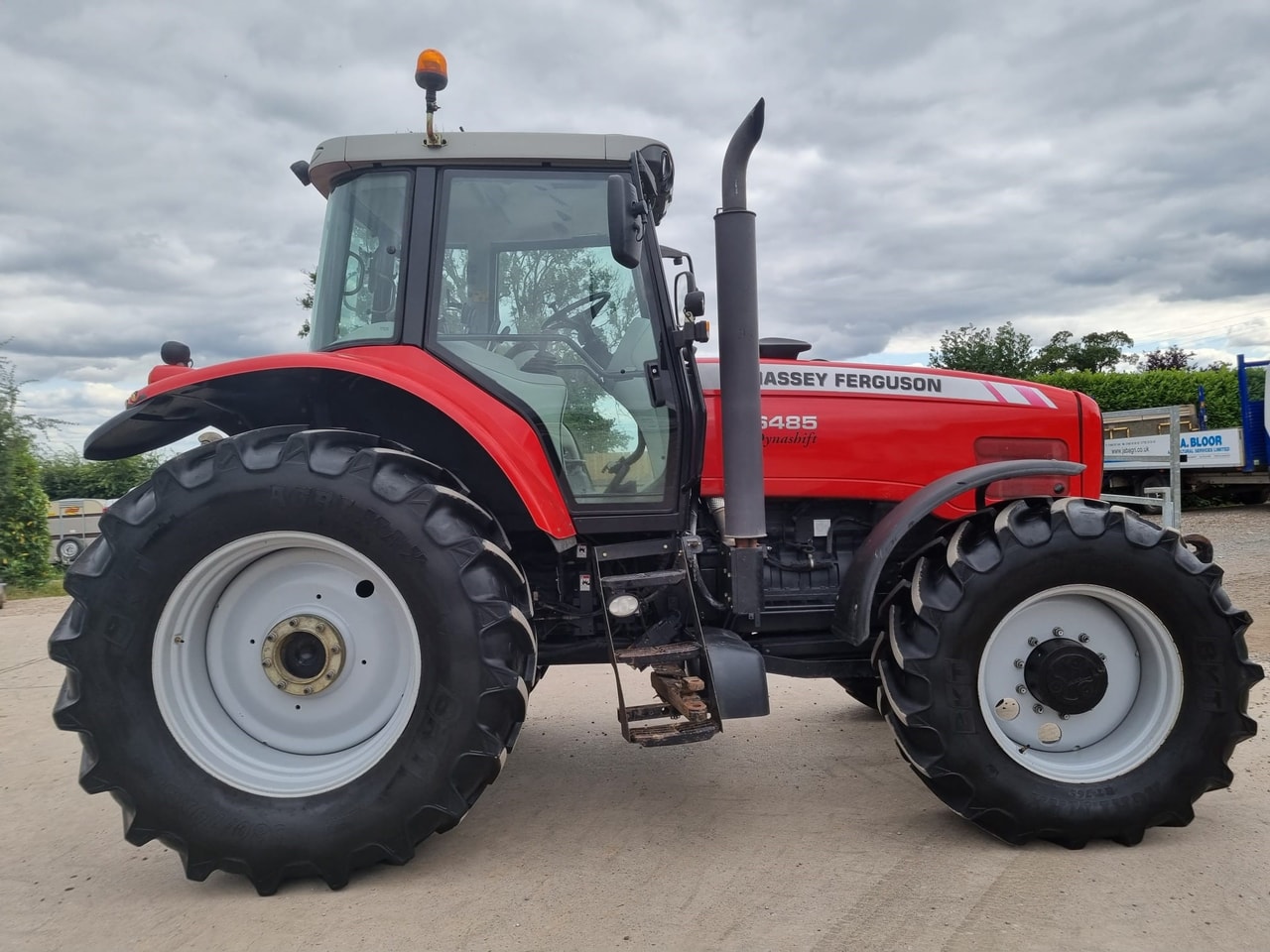

Image Gallery

Massey Ferguson 6485 Tractor Massey Ferguson 6485 Tractor Massey Ferguson 6485 Tractor Massey Ferguson 6485 Tractor Massey Ferguson 6485 Tractor Massey Ferguson 6485 Tractor Massey Ferguson 6485 Tractor Massey Ferguson 6485 Tractor Massey Ferguson 6485 Tractor Massey Ferguson 6485 Tractor Massey Ferguson 6485 Tractor Massey Ferguson 6485 Tractor

Massey Ferguson 6485 vs. Similar Tractors

Power Output
Average
Greater than 55% of similar tractors.
Operating Weight
Average
Greater than 61% of similar tractors.

Technical Specifications

Engine

Manufacturer
Sisu
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged intercooled
Cylinders
6
Displacement (ci)
402.5
Bore (in)
4.252
Stroke (in)
4.724
Rated RPM
2199
Power Output (hp)
175.4

Transmission

Type
Selective gear fixed ratio with partial (6) range operator-controlled powershift
Forward Gears
24
Reverse Gears
24
Total Gears
-

Dimensions

Length (in)
198
Width (in)
120
Height (in)
98.2
Operating Weight (lb)
16305

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Hydrostatic
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
2012
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric (12-volt system)
Brake Type
-
Hydraulic System Type
Closed center PFC

Test Results

Nebraska Tractor Test Laboratory - Test Date: August to October, 2007

Maximum Power and Fuel Consumption

  • Maximum Power at Rated Engine Speed (PTO speed—1099 rpm): 145.8 HP (108.7 kW) at 2199 rpm
  • Fuel Consumption at Maximum Power: 9.01 Gal/hr (34.09 l/h) with a fuel efficiency of 0.439 lb/hp.hr (0.267 kg/kWh)
  • Maximum Power (1 hour) at 2000 rpm: 175.4 HP (130.8 kW) with a fuel consumption of 9.75 Gal/hr (36.90 l/h)

Drawbar Performance

  • Maximum Drawbar Power (13th gear): 126.7 HP (94.5 kW) with a drawbar pull of 7280 lbs (32.4 kN) at a speed of 6.53 mph (10.51 km/h)
  • Fuel Consumption at Maximum Power: 0.500 lb/hp.hr (0.304 kg/kWh) with a fuel efficiency of 14.21 Hp.hr/gal (2.80 kWh/l)
  • 75% of Pull at Maximum Power (13th gear): 97.2 HP (72.5 kW) with a drawbar pull of 5490 lbs (24.4 kN) at a speed of 6.64 mph (10.69 km/h)

Torque and Engine Performance

  • Maximum Torque: 574.1 lb.-ft. (769.9 Nm) at 1400 rpm
  • Torque Rise: 63.0%

Hydraulic Performance

  • Maximum Force Exerted: 14905 lbs (66.3 kN)
  • Pump Delivery Rate at Minimum Pressure: 30.5 GPM (115.6 l/min)
  • Pump Delivery Rate at Maximum Hydraulic Power: 26.5 GPM (100.2 l/min) at a delivery pressure of 2290 psi (158 bar)

Overall Efficiency

  • Fuel Efficiency at Standard PTO Speed (1000 rpm): 18.00 Hp.hr/gal (3.55 kWh/l)
  • Fuel Consumption at Standard PTO Speed: 9.75 Gal/hr (36.90 l/h) at 2000 rpm
