Massey Ferguson 590

Last Updated: June 2024

Overview

The Massey Ferguson 590 is a versatile row-crop tractor available in both 2WD and 4WD variants, manufactured by Massey Ferguson between 1977 and 1982. Powered by a 4-cylinder, 247.8 cubic inch Perkins A4.248 diesel engine, it delivers 75 horsepower at a maximum RPM of 2200. The tractor's transmission comes in two types: a basic gear transmission with 8 forward and 2 reverse gears, and a more advanced two-speed power shift transmission offering 12 forward and 4 reverse gears. It is equipped with hydrostatic power steering and wet disc brakes, enhancing its operation's ease and safety. The 590 could be fitted with a cab that includes a heater or provided with an optional ROPS for protection. It also supports various Power Take-Off (PTO) configurations, providing flexibility for attachments.
Show more...

Key Specifications

Category: Row Crop

Power Output: 75

Transmission: Gear, Two-speed power shift

Drive Type: 2WD/4WD

Operating Weight: 6660 (2WD), 7830 (4WD)

Fuel Type: Diesel

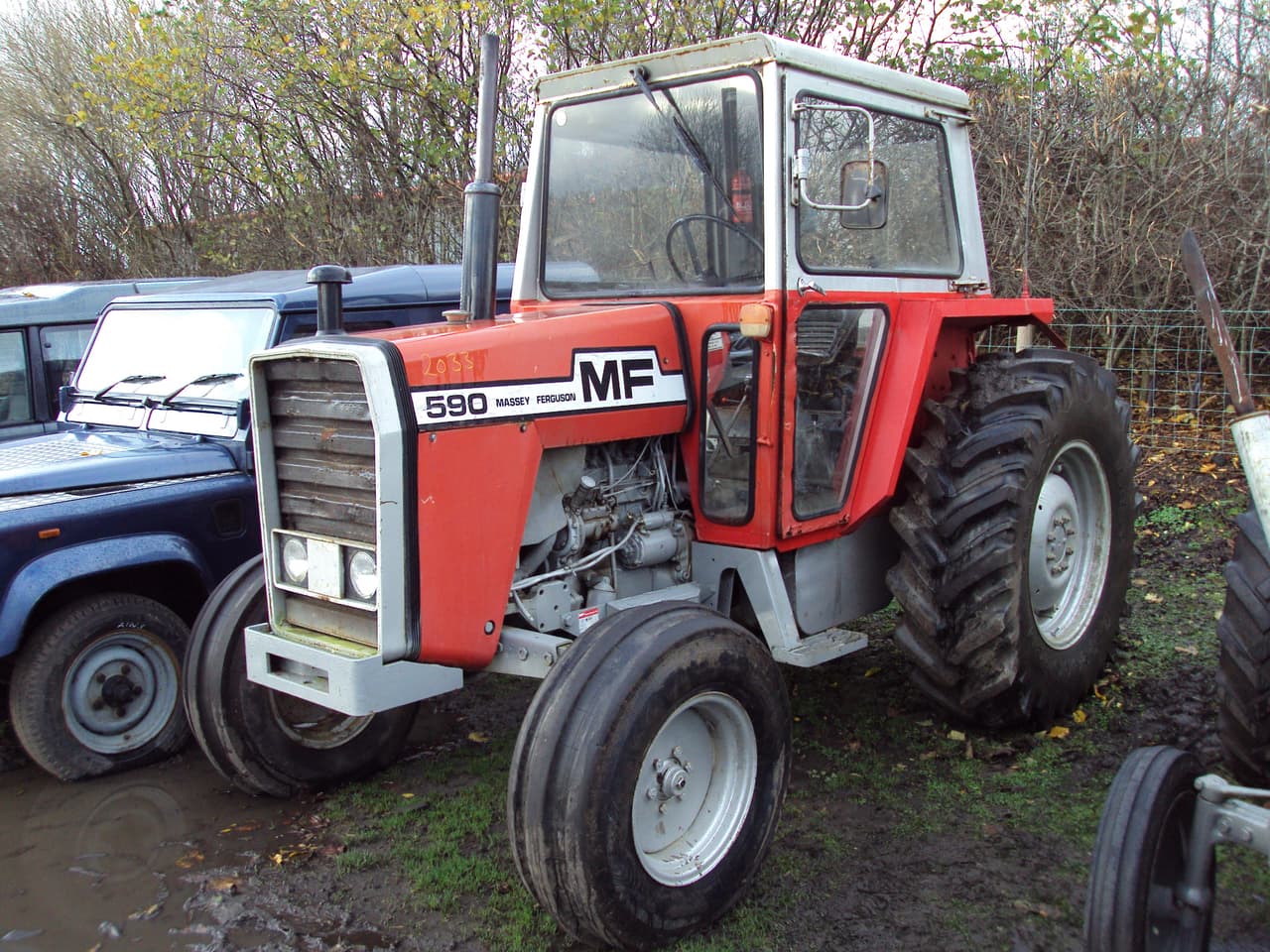

Image Gallery

Massey Ferguson 590 Tractor Massey Ferguson 590 Tractor Massey Ferguson 590 Tractor Massey Ferguson 590 Tractor

Massey Ferguson 590 vs. Similar Tractors

Power Output
Poor
Greater than 10% of similar tractors.
Hitch Capacity
Excellent
Greater than 92% of similar tractors.
Operating Weight
Above Average
Greater than 82% of similar tractors.

Technical Specifications

Engine

Manufacturer
Perkins
Model
A4.248
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Natural aspiration
Cylinders
4
Displacement (ci)
247.8
Bore (in)
3.86
Stroke (in)
5
Rated RPM
2200
Power Output (hp)
75

Transmission

Type
Gear, Two-speed power shift
Forward Gears
8 (Gear), 12 (Two-speed power shift)
Reverse Gears
2 (Gear), 4 (Two-speed power shift)
Total Gears
-

Dimensions

Length (in)
152.8
Width (in)
79.9
Height (in)
100
Operating Weight (lb)
6660 (2WD), 7830 (4WD)

Power Take-Off (PTO)

PTO Type
Live, Independent (optional)
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
1000
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD or 4x4 MFWD 4WD
Drive Type
2WD/4WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
18 (2WD), 24 (4WD)
Front Tire Width (in)
7.50 (2WD), 10.00 (4WD)
Rear Tire Diameter (in)
34
Rear Tire Width (in)
16.9
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
1982
Hitch Type
-
Hitch Category
II
Hitch Position
-
Hitch Capacity (lb)
4895 - 5820
Operator Station Type
Cab with heater or ROPS (option)
Starter Type
Electric
Brake Type
Wet disc
Hydraulic System Type
-
