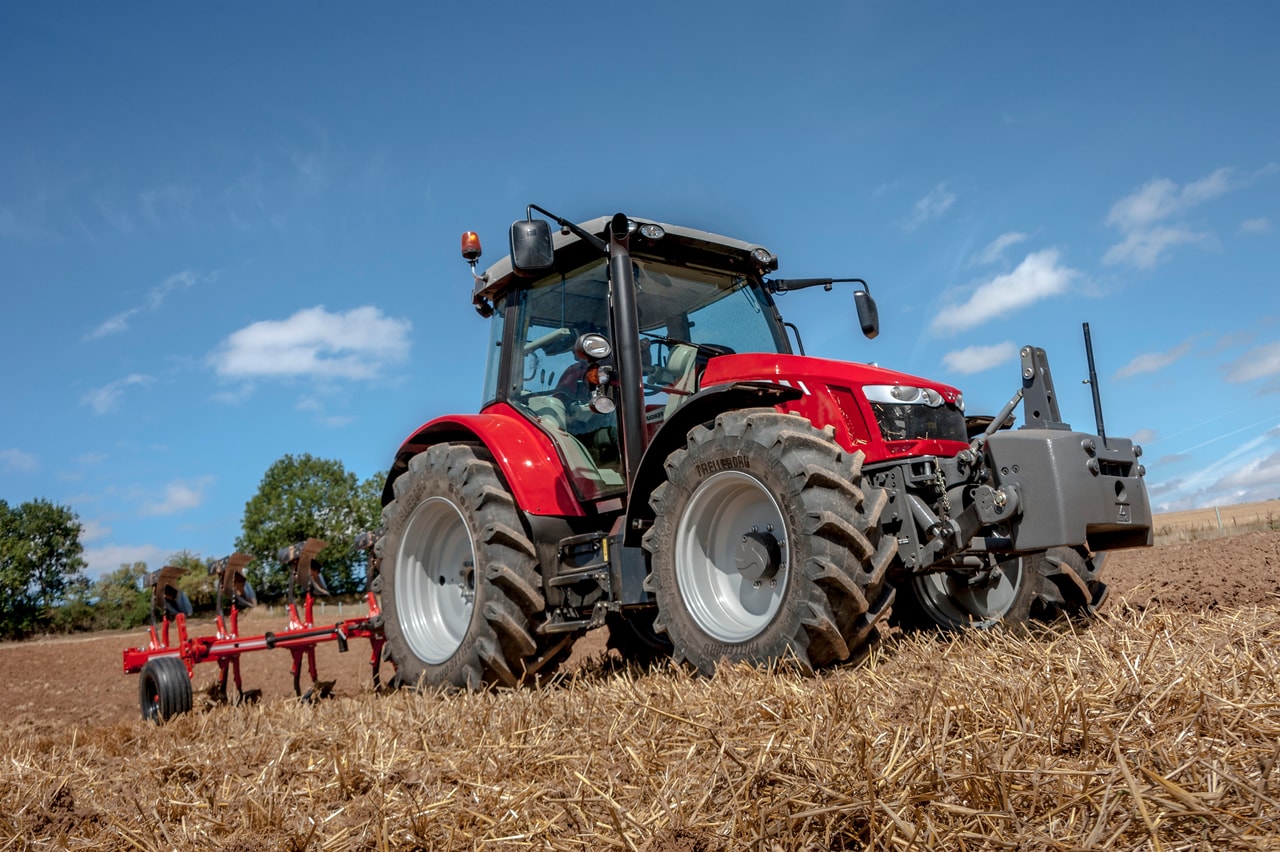

Massey Ferguson 5713SL

Last Updated: June 2024

Overview

The Massey Ferguson 5713SL is a versatile tractor designed to handle a variety of tasks on modern farms. It is part of the 5700SL Series and began manufacture in 2016. The tractor is powered by a reliable AGCO Power 4-cylinder, 16-valve turbocharged aftercooled diesel engine with a displacement of 268.5 cubic inches and a rated power output of 125 horsepower at 2200 RPM. Additional engine features include a high-pressure common rail fuel system, electronic viscous fan cooling system, block heater pre-heating, and complies with Tier IV emissions standards through selective catalytic reduction. Transmission offerings include the option of a Dyna-4 four-speed power shift transmission or a Dyna-6 six-speed power shift transmission, both featuring 24 forward and reverse speeds with a wet disc clutch. The tractor's hydraulic system operates on an open center design. Its weight varies depending on the drive type, ranging from 8929 lbs in 2WD configurations to 10582 lbs in 4WD configurations. With a wheelbase of 100.4 inches and standard agricultural tires, the 5713SL provides good stability and traction for a myriad of agricultural tasks.
Show more...

Key Specifications

Power Output: 125

Transmission: Power Shift

Operating Weight: 10582

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
AGCO Power
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
4-cylinder 16-valve
Fuel Type
Diesel
Induction Type
Turbocharged aftercooled
Cylinders
4
Displacement (ci)
268.5
Bore (in)
4.25
Stroke (in)
4.72
Rated RPM
2200
Power Output (hp)
125

Transmission

Type
Power Shift
Forward Gears
24
Reverse Gears
24
Total Gears
-

Dimensions

Length (in)
171.5
Width (in)
90.6*
Height (in)
111.3
Operating Weight (lb)
10582

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
III/II
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open Center
