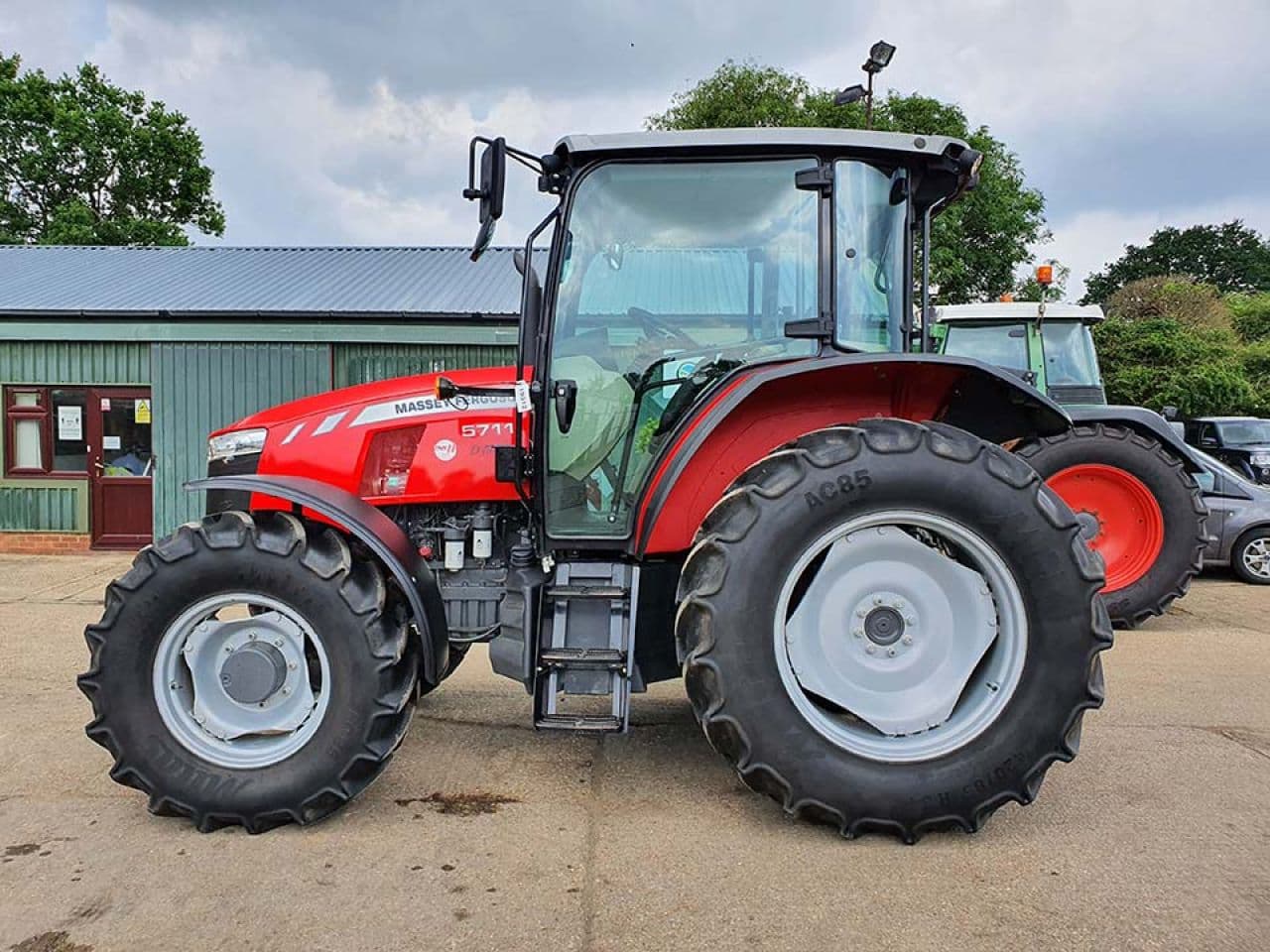

Massey Ferguson 5711

Last Updated: June 2024

Overview

The Massey Ferguson 5711 is a versatile tractor engineered to meet various agricultural demands. Equipped with a robust AGCO Power 4-cylinder liquid-cooled diesel engine, the 5711 provides exceptional power and efficiency. Its engine displacement of 268.5 cubic inches and rated 2200 RPM, along with an intercooled turbocharger, produces a solid 105 horsepower with the ability to reach a maximum of 110 horsepower. The tractor features various transmission options, including mechanical and power shuttle variations, as well as a four-speed power shift option, offering 12 or 16 gears in both forward and reverse directions. The chassis and wheelbase designs contribute to its stable performance and maneuverability, with a wheelbase of 95.7 inches and a width of 70.7 inches. Designed to accommodate front and rear tire sizes and widths that provide traction and comfort across different terrains, the specific dimensions remain unspecified. With an operating weight ranging from 9195 lbs for the ROPS model to 10011 lbs for the cab model, it is built to handle substantial tasks efficiently. Further details on dimensions like length and height, rim diameter, and tire type are unspecified in the provided data.
Show more...

Key Specifications

Power Output: 105

Transmission: Mechanical shuttle / Power shuttle / Four-speed power shift

Operating Weight: 9195 (ROPS) / 10011 (Cab)

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
AGCO Power
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Intercooled turbocharged
Cylinders
4
Displacement (ci)
268.5
Bore (in)
4.25
Stroke (in)
4.72
Rated RPM
2200
Power Output (hp)
105

Transmission

Type
Mechanical shuttle / Power shuttle / Four-speed power shift
Forward Gears
16-Dec
Reverse Gears
16-Dec
Total Gears
16-Dec

Dimensions

Length (in)
-
Width (in)
70.7
Height (in)
-
Operating Weight (lb)
9195 (ROPS) / 10011 (Cab)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
Category II
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open center
