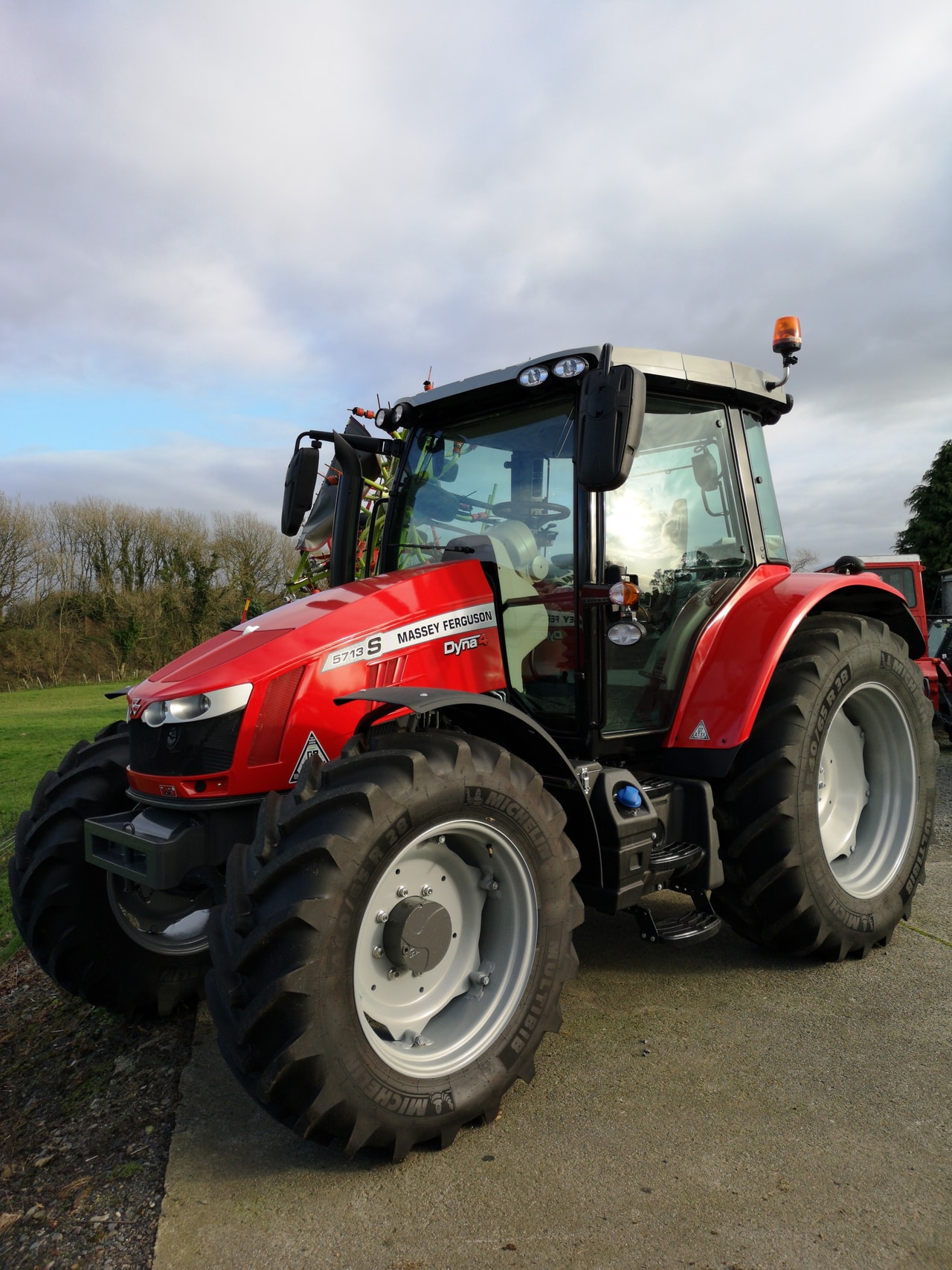

Massey Ferguson 5710SL

Last Updated: June 2024

Overview

The Massey Ferguson 5710SL is a utility tractor equipped with a 4WD chassis and a power shift transmission that offers 24 forward and reverse gears, suggesting a high level of control and maneuverability for a variety of tasks. It's powered by an AGCO Power 4-cylinder, 16-valve, turbocharged aftercooled diesel engine with a liquid cooling system, delivering up to 100 horsepower at a rated RPM of 2200. The engine boasts a displacement of 268.5 cubic inches, with bore and stroke measurements of 4.25 inches and 4.72 inches respectively. The tractor's operating weight stands at 10582 pounds when equipped with 4WD, and features a standard three-point hitch (Category 3) at the rear. The cab operator station ensures comfort during operation, and the tractor is started by an electric starter. Though specific details of the PTO and hydraulic system are not provided, it comes with an open center hydraulic system. The tractor's overall length, width, and height are 171.5 inches, 90.6 inches, and 111.3 inches, respectively, indicating a robust and sizeable machine for demanding agricultural tasks.
Show more...

Key Specifications

Category: Utility

Power Output: 100 (Maximum Power)

Transmission: Power shift

Drive Type: 4WD

Operating Weight: 10582 (4WD)

Fuel Type: Diesel

Massey Ferguson 5710SL vs. Similar Tractors

Power Output
Above Average
Greater than 82% of similar tractors.
Operating Weight
Above Average
Greater than 80% of similar tractors.

Technical Specifications

Engine

Manufacturer
AGCO Power
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
16-valve
Fuel Type
Diesel
Induction Type
Turbocharged aftercooled
Cylinders
4
Displacement (ci)
268.5
Bore (in)
4.25
Stroke (in)
4.72
Rated RPM
2200
Power Output (hp)
100 (Maximum Power)

Transmission

Type
Power shift
Forward Gears
24
Reverse Gears
24
Total Gears
-

Dimensions

Length (in)
171.5
Width (in)
90.6
Height (in)
111.3
Operating Weight (lb)
10582 (4WD)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4WD
Drive Type
4WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Standard (ag)
Manufacture - End Year
-
Hitch Type
Three-Point Hitch
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Cab
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open Center
