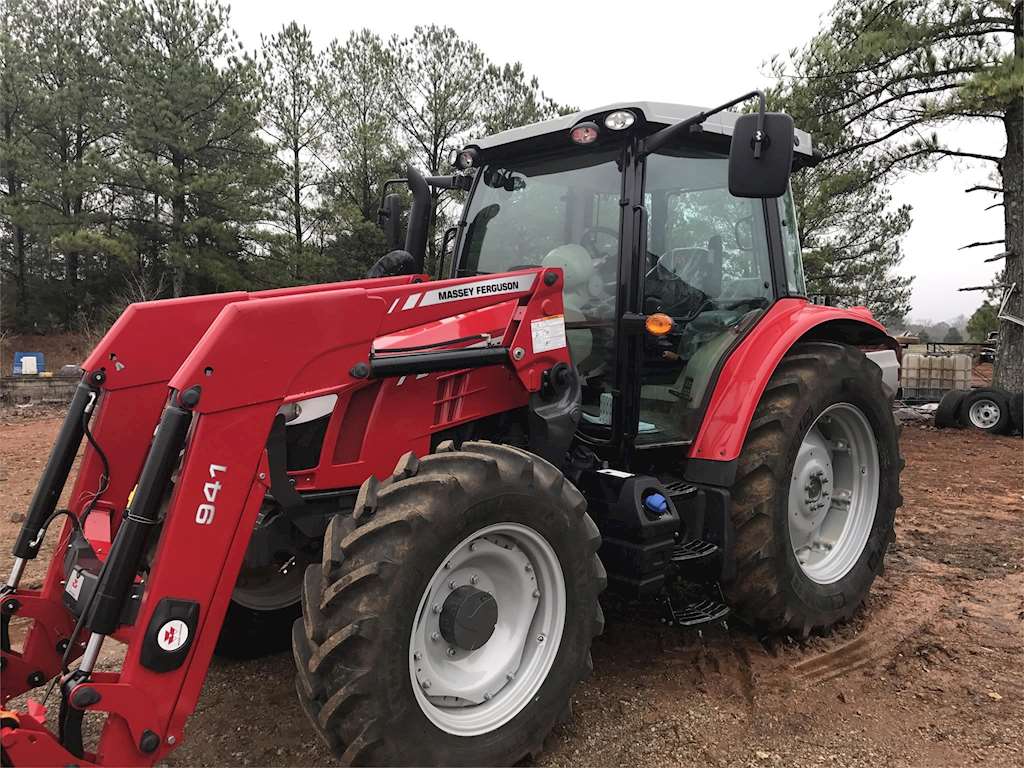

Massey Ferguson 5612

Last Updated: June 2024

Overview

The Massey Ferguson 5612 is a utility tractor designed to offer a blend of power and versatility for a variety of tasks. It features an AGCO Power 44AWI turbocharged and intercooled four-cylinder engine, which delivers 115 horsepower and up to 502 lb-ft of torque at 1500 RPM, while operating on a wet disc clutch system. A notable feature of the engine includes a high pressure common rail direct injection and selective catalytic reduction for emission control, meeting the Interim Tier IV standards. The tractor is equipped with a complex transmission system, the Dyna-4, offering 16 forward and reverse speeds with the ability to add creeper gears for 32 total speeds. Operating at a wheelbase of 100.4 inches, the tractor is durable with an approximate weight of 8929 pounds in its 2WD configuration. It comes standard with a cab height of approximately 111.5 inches. Introduced in 2013, this series continues to be a part of Massey Ferguson's offering, showcasing the balance between efficiency and function.
Show more...

Key Specifications

Category: Utility

Power Output: 115

Transmission: Four-speed power shift with power shuttle

Drive Type: 2WD

Operating Weight: 8929 (2WD)

Fuel Type: Diesel

Massey Ferguson 5612 vs. Similar Tractors

Power Output
Above Average
Greater than 87% of similar tractors.
Operating Weight
Above Average
Greater than 80% of similar tractors.

Technical Specifications

Engine

Manufacturer
AGCO Power
Model
44AWI
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
16-valve
Fuel Type
Diesel
Induction Type
Turbocharged and intercooled
Cylinders
4
Displacement (ci)
269
Bore (in)
4.25
Stroke (in)
4.72
Rated RPM
2200
Power Output (hp)
115

Transmission

Type
Four-speed power shift with power shuttle
Forward Gears
-
Reverse Gears
-
Total Gears
16 forward and reverse

Dimensions

Length (in)
-
Width (in)
-
Height (in)
111.5 (to the top of the cab)
Operating Weight (lb)
8929 (2WD)

Power Take-Off (PTO)

PTO Type
Electro-hydraulic engagement and speed selection
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Hydrostatic Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
Rear: 38
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
II
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Cab
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open center
