Massey Ferguson 5470SA

Last Updated: June 2024

Overview

The Massey Ferguson 5470SA is a utility tractor that was manufactured between 2004 and 2010. It features a 4x2 (2WD) chassis and is powered by a 115 hp Sisu 44CTA engine with a liquid-cooled, turbocharged diesel system. The tractor has a Speedshift transmission with 16 forward and reverse gears and hydrostatic power steering, providing smooth handling capabilities for a variety of tasks. The engine’s displacement is 268.5 cubic inches and operates at a rated 2200 RPM. It has a rear hitch with a lifting capacity of 6600 lbs and a Category II hitch type. The hydraulic system is of an open center type, and the tractor has three remote control valves, showcasing its capability for various attachments and implements. The tractor’s operating weight is 8478 pounds with a 79.1-inch width and a 97-inch height.
Show more...

Key Specifications

Category: Utility

Power Output: 115

Transmission: Speedshift

Drive Type: 2WD

Operating Weight: 8478

Fuel Type: Diesel

Image Gallery

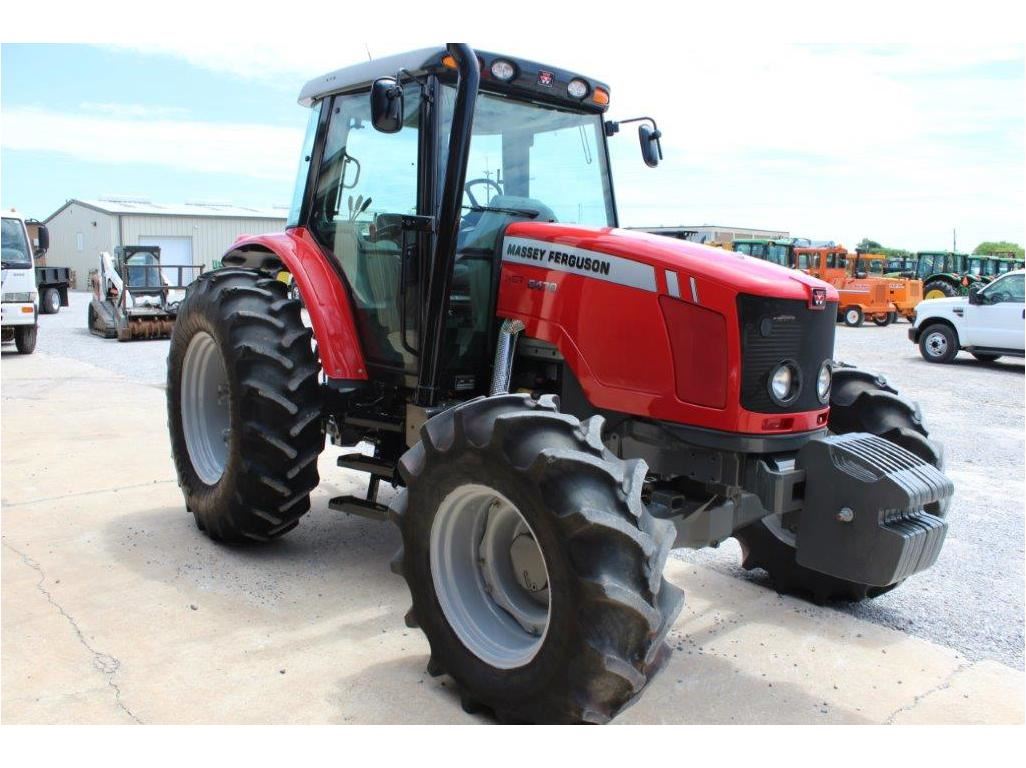

Massey Ferguson 5470SA Tractor Massey Ferguson 5470SA Tractor Massey Ferguson 5470SA Tractor Massey Ferguson 5470SA Tractor Massey Ferguson 5470SA Tractor Massey Ferguson 5470SA Tractor Massey Ferguson 5470SA Tractor Massey Ferguson 5470SA Tractor Massey Ferguson 5470SA Tractor Massey Ferguson 5470SA Tractor Massey Ferguson 5470SA Tractor Massey Ferguson 5470SA Tractor

Massey Ferguson 5470SA vs. Similar Tractors

Power Output
Above Average
Greater than 87% of similar tractors.
Hitch Capacity
Above Average
Greater than 81% of similar tractors.
Operating Weight
Average
Greater than 58% of similar tractors.

Technical Specifications

Engine

Manufacturer
Sisu
Model
44CTA
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged/Air-to-air
Cylinders
4
Displacement (ci)
268.5
Bore (in)
4.25
Stroke (in)
4.72
Rated RPM
2200
Power Output (hp)
115

Transmission

Type
Speedshift
Forward Gears
16
Reverse Gears
16
Total Gears
-

Dimensions

Length (in)
172.8 (14.4 feet converted to inches)
Width (in)
79.1
Height (in)
97
Operating Weight (lb)
8478

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2
Drive Type
2WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
2010
Hitch Type
Category II
Hitch Category
Category II
Hitch Position
Rear
Hitch Capacity (lb)
6600
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
Open center
