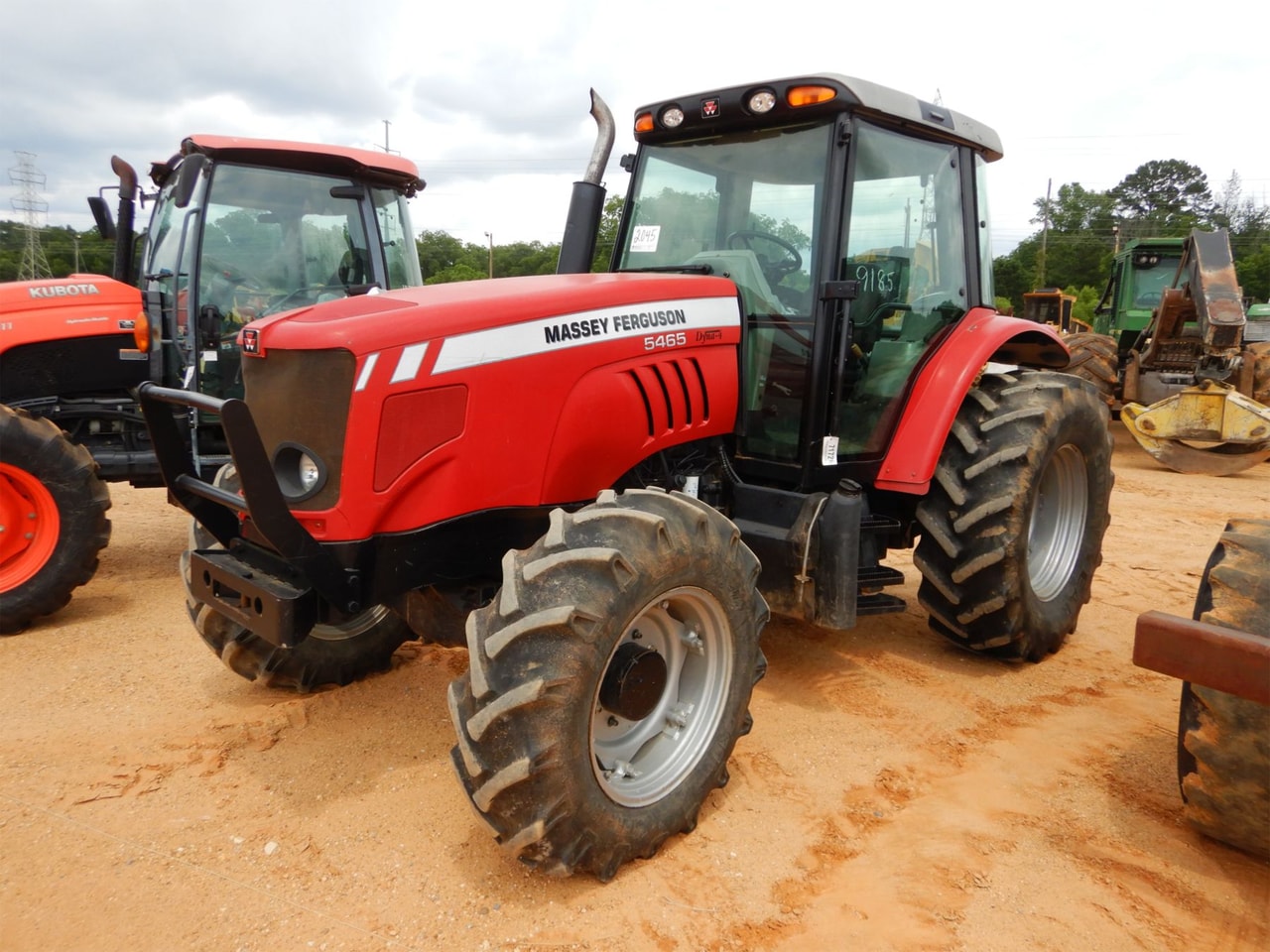

Massey Ferguson 5465 Tier III

Last Updated: June 2024

Overview

The Massey Ferguson 5465 Tier III is a utility tractor that features a robust construction and is designed to handle a variety of tasks efficiently. Powered by an engine model 1106 with six cylinders, it boasts a displacement of 402.8 cubic inches and offers a power output of 100 horsepower at 2200 RPM. The tractor includes a power shuttle transmission with an equal number of 16 forward and reverse gears, complementing its versatile capabilities. A notable characteristic includes its induction type, which is turbo/air to air, likely allowing for better performance under different working conditions. The tractor's three-point hitch capacity stands at 7817.6 pounds at 24 inches, making it well-suited for heavy-duty work with attachments. While dimensions such as length and width are specified, the overall operating weight and tire information are not provided. This tractor models attention to hydraulic performance with a pump flow capacity of 15.1 gallons per minute, which enhances its functionality with various implements.
Show more...

Key Specifications

Category: Utility

Power Output: 100

Transmission: Power shuttle

Lift Capacity: 7817.6

Massey Ferguson 5465 Tier III vs. Similar Tractors

Power Output
Above Average
Greater than 82% of similar tractors.
Hitch Capacity
Above Average
Greater than 83% of similar tractors.

Technical Specifications

Engine

Manufacturer
Unknown
Model
1106
Cooling Type
-
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
-
Induction Type
Turbo/air to air
Cylinders
6
Displacement (ci)
402.8
Bore (in)
-
Stroke (in)
-
Rated RPM
2200
Power Output (hp)
100

Transmission

Type
Power shuttle
Forward Gears
16
Reverse Gears
16
Total Gears
-

Dimensions

Length (in)
15.9
Width (in)
80.8
Height (in)
110.4
Operating Weight (lb)
-

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
Cat II
Hitch Category
-
Hitch Position
Rear
Hitch Capacity (lb)
7817.6
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
