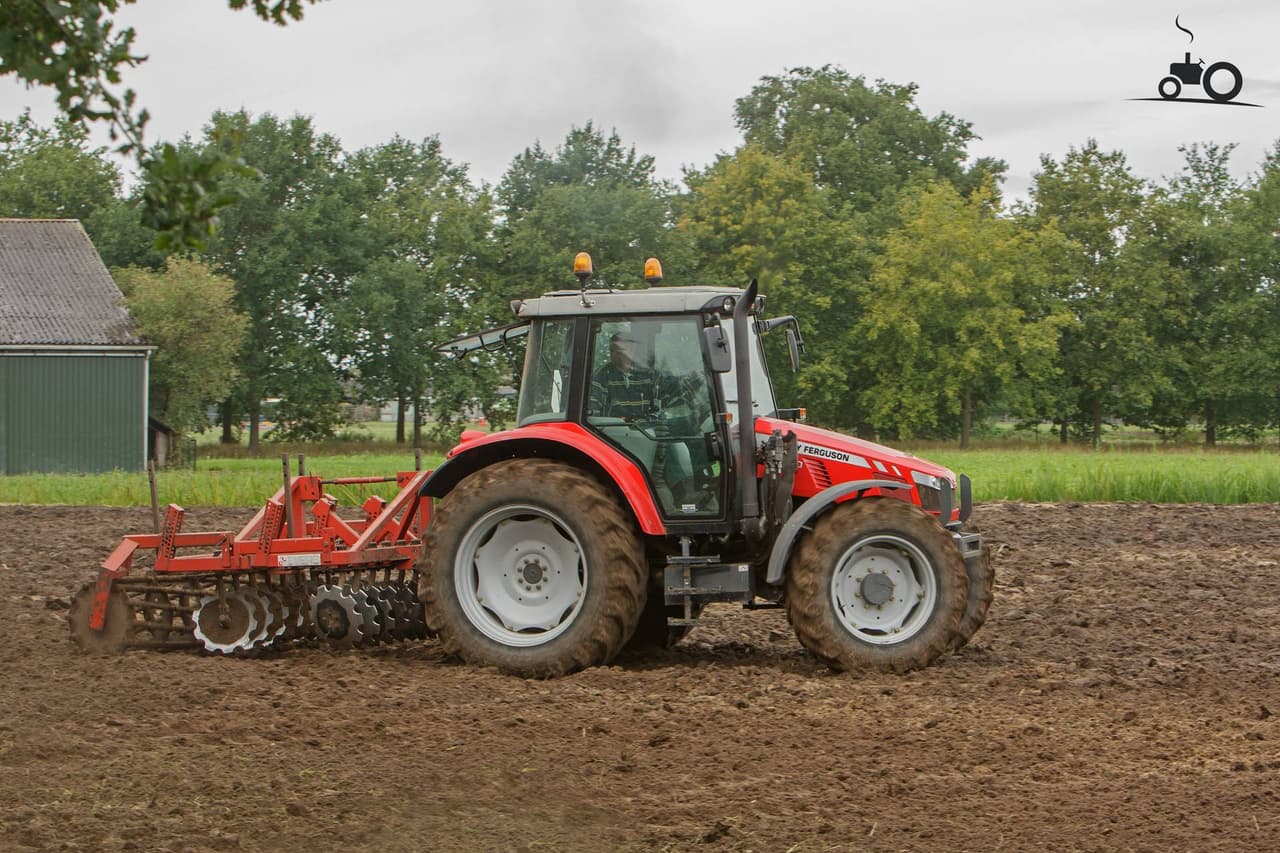

Massey Ferguson 5440

Last Updated: June 2024

Overview

The Massey Ferguson 5440 is a utility tractor that was part of the 5400 Series manufactured by Massey Ferguson from 2011 to 2013. It features a robust chassis likely to be equipped with a 4WD configuration, based on the standard tire specification and common practice for tractors of this utility category. The tractor is powered by a Perkins 1104D-44TA engine, which is a liquid-cooled, turbocharged, and intercooled diesel engine with a displacement of 268.5 cubic inches. It provides a power output of 98.7 hp with a notable torque of 296.5 lb-ft at 1400 RPM. Transmission is provided via a Dyna-4, four-speed power shift with 16 forward and reverse gears, which enhances the tractor's versatility on the field. The tractor dimensions include a length of 166.2 inches and, equipped with a cab, has a height of 108.3 inches. It operates at a weight of 8378 lbs and features a rear Category 2 hitch, enabling it to work with a variety of implements.
Show more...

Key Specifications

Category: Utility

Power Output: 98.7

Transmission: Power shift

Drive Type: 4WD (assuming based on tire specification and common manufacturer practice)

Operating Weight: 8378

Fuel Type: Diesel

Massey Ferguson 5440 vs. Similar Tractors

Power Output
Above Average
Greater than 80% of similar tractors.
Operating Weight
Average
Greater than 58% of similar tractors.

Technical Specifications

Engine

Manufacturer
Perkins
Model
1104D-44TA
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged intercooled
Cylinders
4
Displacement (ci)
268.5
Bore (in)
4.13
Stroke (in)
5
Rated RPM
-
Power Output (hp)
98.7

Transmission

Type
Power shift
Forward Gears
16
Reverse Gears
16
Total Gears
-

Dimensions

Length (in)
166.2
Width (in)
-
Height (in)
108.3 (assuming this is the height of the cab, standard configuration)
Operating Weight (lb)
8378

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 (assuming based on tire specification and common manufacturer practice)
Drive Type
4WD (assuming based on tire specification and common manufacturer practice)
Steering Type
Power (assumed based on steering flow information)
Coolant Capacity (qts)
-
Front Tire Diameter (in)
24 (assuming based on tire specification "11.2R24")
Front Tire Width (in)
11.2 (assuming based on tire specification "11.2R24")
Rear Tire Diameter (in)
30 (assuming based on tire specification "16.9R30")
Rear Tire Width (in)
16.9 (assuming based on tire specification "16.9R30")
Front/Rear Rim Diameter (in)
-
Tire Type
Radial (assuming based on tire specification standard nomenclature "R")
Manufacture - End Year
2013
Hitch Type
Three-Point Hitch (assuming based on "Rear Type: II")
Hitch Category
Category 2 (assuming based on "Rear Type: II")
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Cab
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
