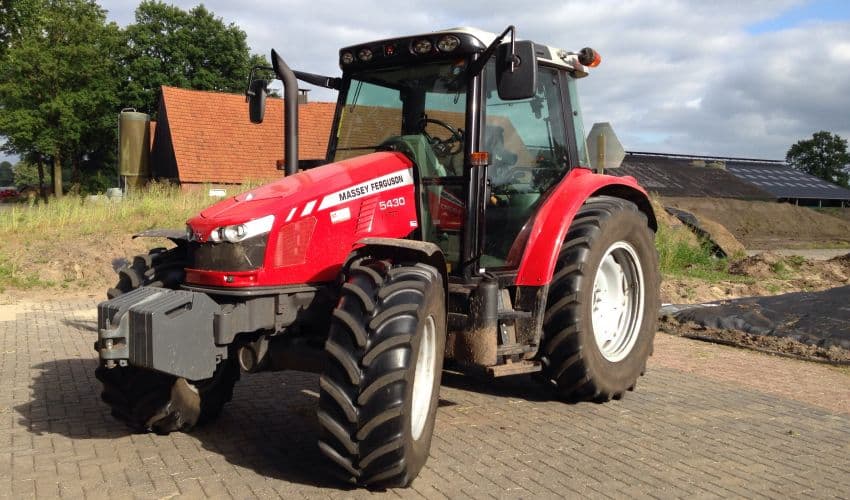

Massey Ferguson 5430

Last Updated: June 2024

Overview

The Massey Ferguson 5430 is designed with a 4x4 MFWD 4WD chassis and powered with a turbocharged intercooled Perkins 1104D-44TA engine, which provides a commendable power output of 88.8 horsepower and a peak torque of 279.5 lb-ft at 1400 rpm. It utilizes a four-speed power shift transmission, enabling 16 forward and reverse gears. The quality of power is further supported by hydraulic steering that requires 8.5 gpm, translating to adequate maneuverability for a variety of agricultural tasks. Standard agricultural tires are fitted measuring 11.2R24 in the front and 16.9R30 in the rear, which pair with a wheelbase of 96.9 inches ensuring stability and traction on diverse terrains. The tractor has a weight of 8378 lbs and offers a protected operator station with a cab standing 108.3 inches tall. Production of the Massey Ferguson 5430 spanned from 2011 to 2013, making it a fairly contemporary addition to the brand's 5400 series.
Show more...

Key Specifications

Power Output: 88.8

Transmission: Four-speed power shift

Drive Type: 4WD

Operating Weight: 8378

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
Perkins
Model
1104D-44TA
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged intercooled
Cylinders
4
Displacement (ci)
268.5
Bore (in)
4.13
Stroke (in)
5
Rated RPM
-
Power Output (hp)
88.8

Transmission

Type
Four-speed power shift
Forward Gears
16
Reverse Gears
16
Total Gears
-

Dimensions

Length (in)
166.2
Width (in)
-
Height (in)
108.3 (cab height)
Operating Weight (lb)
8378

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
24
Front Tire Width (in)
11.2
Rear Tire Diameter (in)
30
Rear Tire Width (in)
16.9
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
2013
Hitch Type
II
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Cab
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
