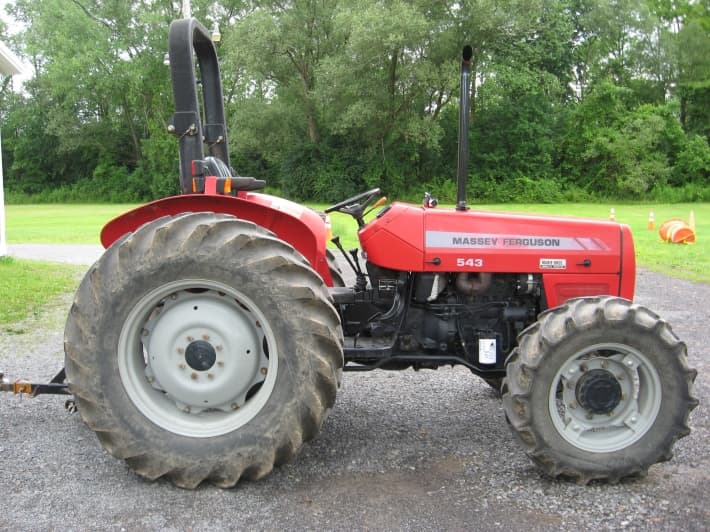

Massey Ferguson 543

Last Updated: June 2024

Overview

The Massey Ferguson 543 is a utility tractor predominantly designed for various agricultural tasks. It features a 2WD (4x2) chassis and is powered by a Perkins 1103C-33 diesel engine which offers a power output of 52 horsepower and operates at a rated speed of 2200 RPM. The tractor employs an 8-speed gear transmission with a shuttle feature, allowing for 8 forward and 2 reverse gears—facilitating a range of operations from plowing to towing. The steering is eased by a hydrostatic power system which, alongside its 76.4-inch wheelbase, provides a stable and maneuverable ride. The model comes with a rear hitch insert that is a Category 3, supporting up to 2711 pounds in lift capacity. With an operational weight of 5456 pounds, the 543 maintains good ground clearance and stability. Manufactured between 2006 and 2008, this model catered to a variety of agricultural and utility needs while ensuring operator comfort and efficiency during its use.
Show more...

Key Specifications

Category: Utility

Power Output: 52

Transmission: Gear with shuttle

Drive Type: 2WD

Operating Weight: 5456

Fuel Type: Diesel

Massey Ferguson 543 vs. Similar Tractors

Power Output
Average
Greater than 50% of similar tractors.
Hitch Capacity
Average
Greater than 47% of similar tractors.
Operating Weight
Average
Greater than 45% of similar tractors.

Technical Specifications

Engine

Manufacturer
Perkins
Model
1103C-33
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Natural
Cylinders
3
Displacement (ci)
201.4
Bore (in)
4.134
Stroke (in)
5
Rated RPM
2200
Power Output (hp)
52

Transmission

Type
Gear with shuttle
Forward Gears
8
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
126.8
Width (in)
66.9
Height (in)
92.5
Operating Weight (lb)
5456

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
2008
Hitch Type
Cat I & II
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
2711 lbs
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open Center
