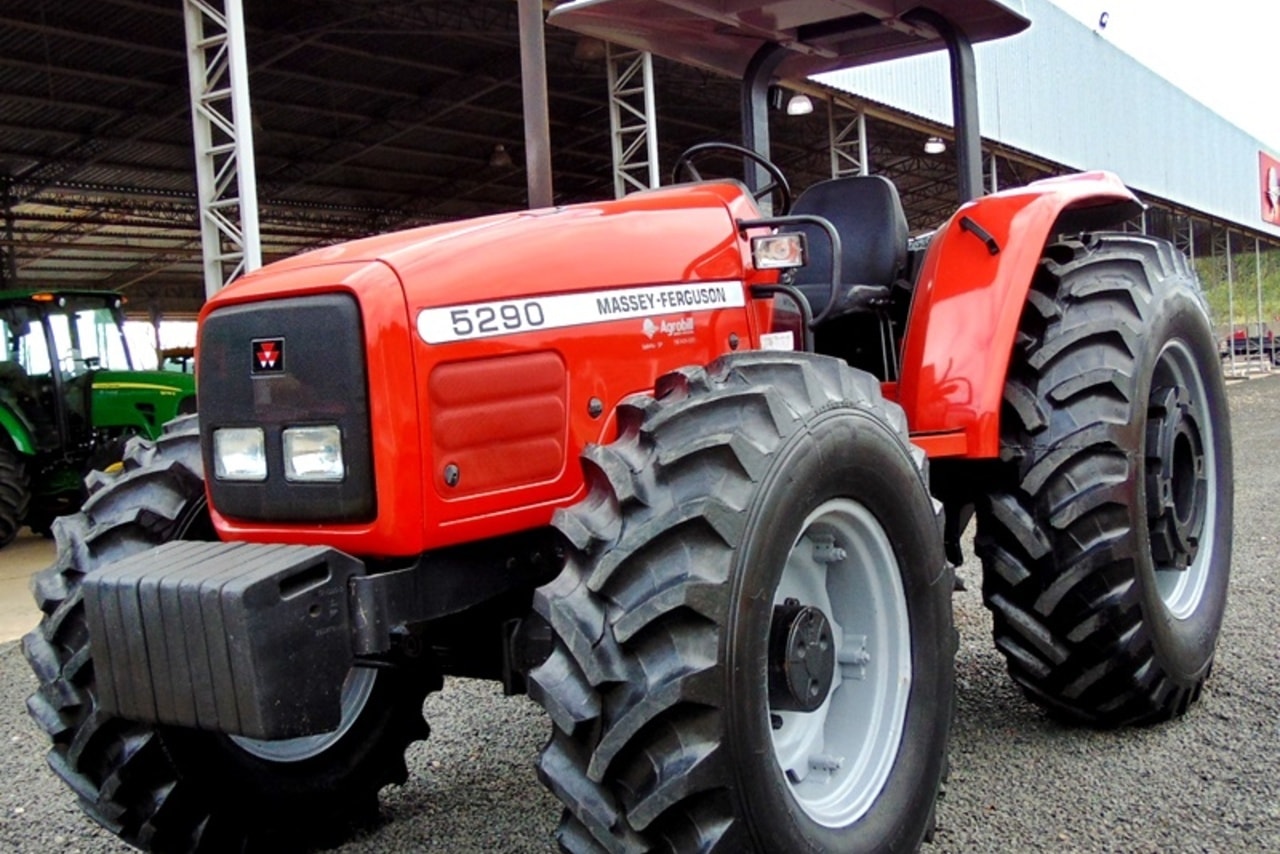

Massey Ferguson 5290

Last Updated: June 2024

Overview

The Massey Ferguson 5290 is categorized as a utility tractor and has been in production from 2002 to 2009. It is equipped with a 4x2 2WD chassis and is powered by an electric starter. This tractor is designed for various tasks with a power rating of 88 hp from its Perkins 4.41 diesel engine. It's cooled by a liquid system with a displacement of 250.2 cubic inches and a bore and stroke measuring 3.98 and 5.00 inches, respectively. The engine operates at a rated RPM of 2200 and has a torque rating of 214.6 lb-ft at 1200 RPM. For transmission, it offers a manual gearbox with 18 forward and 6 reverse gears, providing versatility in operational speeds. The tire configuration differs based on the specific standard tires, which supports the 2WD and 4WD options and their respective ground clearances and wheelbases. This tractor's design is suitable for use with Category 3 hitches and has an open center hydraulic system for various implements. The Massey Ferguson 5290 is also known for its relatively heavy operational weight, signifying a solid and durable build for heavy-duty operations.
Show more...

Key Specifications

Category: Utility

Power Output: 88

Transmission: Manual

Drive Type: 2WD

Operating Weight: 10362 (2WD) / 11244 (4WD)

Fuel Type: Diesel

Massey Ferguson 5290 vs. Similar Tractors

Power Output
Above Average
Greater than 75% of similar tractors.
Operating Weight
Excellent
Greater than 99% of similar tractors.

Technical Specifications

Engine

Manufacturer
Perkins
Model
4.41
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
4
Displacement (ci)
250.2
Bore (in)
3.98
Stroke (in)
5
Rated RPM
2200
Power Output (hp)
88

Transmission

Type
Manual
Forward Gears
18
Reverse Gears
6
Total Gears
-

Dimensions

Length (in)
157.1
Width (in)
-
Height (in)
104
Operating Weight (lb)
10362 (2WD) / 11244 (4WD)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
2009
Hitch Type
-
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open center
