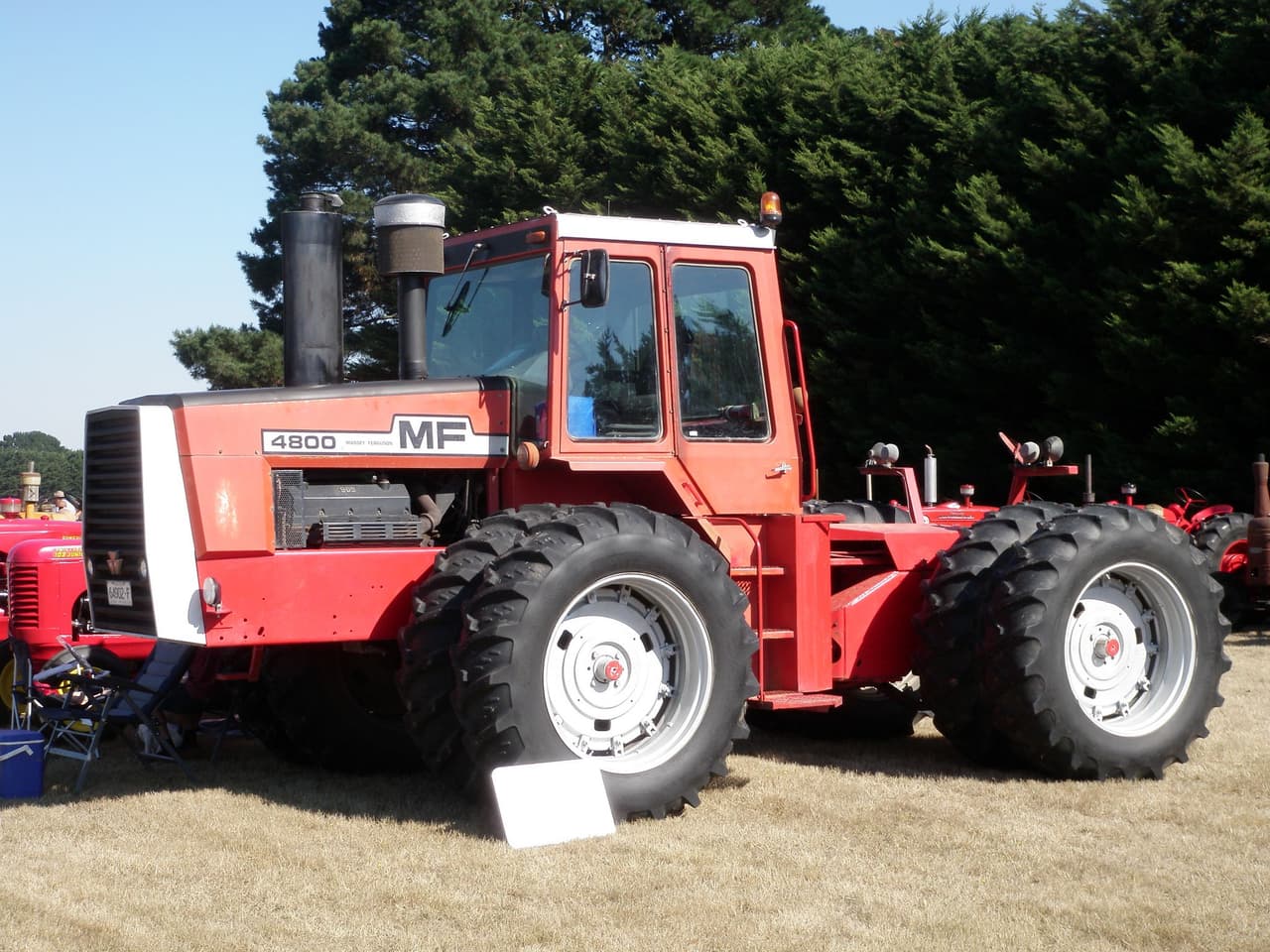

Massey Ferguson 4800

Last Updated: July 2024

Overview

The Massey Ferguson 4800 is a robust utility tractor powered by a Cummins V-903 8-cylinder diesel engine producing 187.69 hp at 2200 rpm and a maximum torque of 618 lb-ft at 1475 rpm. It features a partial power shift transmission with either 12 or 18 forward gears and 6 reverse gears. The 4x4 articulated chassis with 4WD and articulated power steering provides excellent traction and maneuverability. Key specifications include a 60-quart coolant capacity, 23.1-inch agricultural tires, 252-inch length, 108-inch width, and 30,200 lb operating weight. Additional notable features are a 31% torque rise, 10.2% power increase at 1800 rpm, and a fuel efficiency of 13.59 Hp.hr/gal at 1000 rpm PTO speed.
Show more...

Key Specifications

Category: Utility

Power Output: 187.69

Transmission: Partial power shift

Drive Type: 4WD

Operating Weight: 30200

Fuel Type: Diesel

Image Gallery

Massey Ferguson 4800 Tractor Massey Ferguson 4800 Tractor Massey Ferguson 4800 Tractor Massey Ferguson 4800 Tractor Massey Ferguson 4800 Tractor Massey Ferguson 4800 Tractor Massey Ferguson 4800 Tractor Massey Ferguson 4800 Tractor

Massey Ferguson 4800 vs. Similar Tractors

Power Output
Excellent
Greater than 93% of similar tractors.
Hitch Capacity
Above Average
Greater than 86% of similar tractors.
Operating Weight
Above Average
Greater than 73% of similar tractors.

Technical Specifications

Engine

Manufacturer
Cummins
Model
V-903
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
8
Displacement (ci)
903
Bore (in)
5.5
Stroke (in)
4.75
Rated RPM
-
Power Output (hp)
187.69

Transmission

Type
Partial power shift
Forward Gears
12 or 18
Reverse Gears
6
Total Gears
-

Dimensions

Length (in)
252
Width (in)
108
Height (in)
130
Operating Weight (lb)
30200

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 articulated 4WD
Drive Type
4WD
Steering Type
Articulated power
Coolant Capacity (qts)
60
Front Tire Diameter (in)
23.1
Front Tire Width (in)
-
Rear Tire Diameter (in)
23.1
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
1983
Hitch Type
IV
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
11000
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open center

Test Results

Nebraska Tractor Test Laboratory - Test Date: April 17, 1980

Maximum Power and Fuel Consumption

  • Maximum Power: 187.69 HP (140.00 kW) at 2200 rpm
  • Fuel Consumption at Maximum Power: 11.41 Gal/hr (43.19 l/h) with a fuel efficiency of 0.566 lb/hp.hr (0.344 kg/kW.h)

Drawbar Performance

  • Power at Rated Engine Speed (6th Gear): 161.89 HP (120.79 kW) with a drawbar pull of 19,350 lbs (86.10 kN) and a speed of 4.71 mph (7.58 km/h)
  • Fuel Consumption at Rated Speed: 0.582 lb/hp.hr (0.354 kg/kW.h) with a fuel efficiency of 12.35 Hp.hr/gal (2.44 kW.h/l)

Torque and Engine Performance

  • Maximum Torque: 618 lb.-ft. (838 Nm) at 1475 rpm
  • Torque Rise: 31.0% with a power increase at 1800 rpm of 10.2%

Hydraulic Performance

  • Maximum Force Exerted: Could not be determined from the available information
  • Pump Delivery Rate: Could not be determined from the available information

Overall Efficiency

  • Fuel Efficiency at Standard PTO Speed (1000 rpm): 13.59 Hp.hr/gal (2.68 kW.h/l)
  • Fuel Consumption: 11.20 Gal/hr (42.41 l/h) at 2200 rpm



NTTL.(1980).Test 1342: Massey-Ferguson 4800 Diesel 12 and 18-Speed. Lincoln, NE: Nebraska Tractor Test Laboratory. Retrieved from https://digitalcommons.unl.edu/tractormuseumlit/1661
