Massey Ferguson 4610M

Last Updated: June 2024

Overview

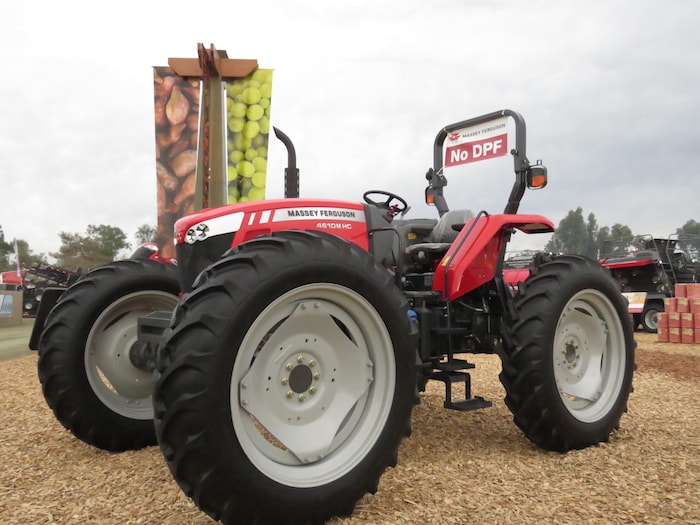

The Massey Ferguson 4610M is a utility tractor that is well-suited for a variety of tasks on the farm. Equipped with a 99 hp AGCO Power engine, this tractor relies on diesel fuel and is liquid-cooled with an intercooled turbocharged induction system. It operates with a partially synchronized transmission, providing 12 forward and reverse gears. Featuring a Category II three-point hitch at the rear, this tractor has a lift capacity of 3307 lbs, making it capable of handling sizeable implements. The 4610M comes with either an open station with ROPS or a cab and has been in production since 2016. Weighing between 6845 and 7253 pounds, depending on the configuration, and with a wheelbase of 89.9 inches, this tractor has the stability for a variety of tasks. The electro-hydraulic power take-off (PTO) with speeds of 540 and 1000 rpm adds to this tractor's versatility, supporting a wide range of PTO-driven tools and machinery. An open center hydraulic system and the option for one or two standard remote control valves complete this tractor's functional setup.
Show more...

Key Specifications

Category: Utility

Power Output: 99

Transmission: Partially synchronized

Drive Type: 2WD

Operating Weight: 6845 (ROPS 4WD), 7253 (cab 4WD)

Fuel Type: Diesel

Massey Ferguson 4610M vs. Similar Tractors

Power Output
Above Average
Greater than 81% of similar tractors.
Hitch Capacity
Average
Greater than 60% of similar tractors.
Operating Weight
Above Average
Greater than 79% of similar tractors.

Technical Specifications

Engine

Manufacturer
AGCO Power
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Intercooled turbocharged
Cylinders
3
Displacement (ci)
201
Bore (in)
4.252
Stroke (in)
4.724
Rated RPM
2200
Power Output (hp)
99

Transmission

Type
Partially synchronized
Forward Gears
12
Reverse Gears
12
Total Gears
-

Dimensions

Length (in)
153.5
Width (in)
80.7
Height (in)
106.6 (ROPS), 102.3 (cab)
Operating Weight (lb)
6845 (ROPS 4WD), 7253 (cab 4WD)

Power Take-Off (PTO)

PTO Type
Electro-hydraulic engagement
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
1000
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
Three-Point Hitch
Hitch Category
Category II
Hitch Position
Rear
Hitch Capacity (lb)
3307 lbs
Operator Station Type
Open (ROPS), Cab
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open Center
