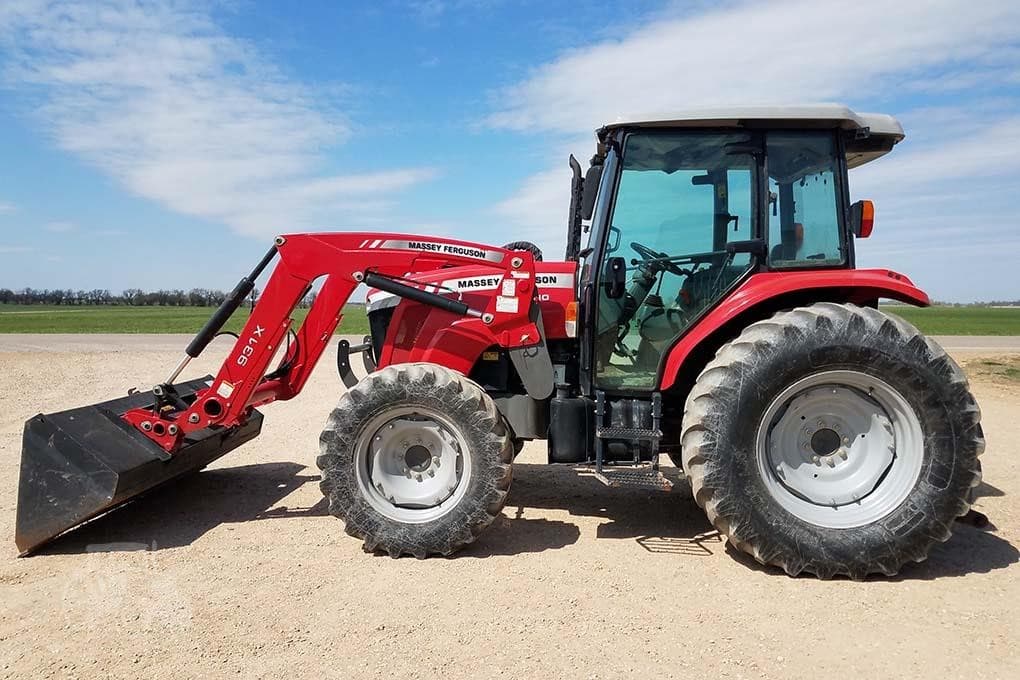

Massey Ferguson 4610

Last Updated: June 2024

Overview

The Massey Ferguson 4610 is a versatile utility tractor known for its reliability and robustness, manufactured between 2013 and 2015. It features a powerful AGCO Power 33 AWIC engine with a displacement of 201 cubic inches and a rated power output of 100 hp at 2200 rpm. The tractor is available in 2WD and is equipped with a power shuttle transmission that offers 12 forward and 12 reverse gears. It has power steering for easy maneuverability, and wet disc brakes ensure effective stopping power. Designed to handle a variety of tasks, the MF 4610 has a Category II three-point hitch with a lift capacity of 3417.2 pounds and the convenience of an independent PTO with electric clutch operating at speeds of 540 and 1000 rpm. Operators can enjoy the comfort of a two-post folding ROPS or an optional cab with air-conditioning. Its durable chassis and various tire configurations make it suitable for different agricultural needs. The additional features such as extendable lower links and a mechanical differential lock controlled by a foot pedal provide versatility for a wide range of tasks, making it a useful asset for any farm.
Show more...

Key Specifications

Category: Utility

Power Output: 100

Transmission: Power shuttle

Operating Weight: 6503 - 6945

Fuel Type: Diesel

Lift Capacity: 3417.2 lbs

Massey Ferguson 4610 vs. Similar Tractors

Power Output
Above Average
Greater than 82% of similar tractors.
Hitch Capacity
Average
Greater than 63% of similar tractors.
Operating Weight
Above Average
Greater than 90% of similar tractors.

Technical Specifications

Engine

Manufacturer
AGCO Power
Model
33 AWIC
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged intercooled
Cylinders
3
Displacement (ci)
201
Bore (in)
4.252
Stroke (in)
4.724
Rated RPM
2200
Power Output (hp)
100

Transmission

Type
Power shuttle
Forward Gears
12
Reverse Gears
12
Total Gears
-

Dimensions

Length (in)
152.4
Width (in)
78.3
Height (in)
102.4 (with cab)
Operating Weight (lb)
6503 - 6945

Power Take-Off (PTO)

PTO Type
Independent with electric clutch
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
1000
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
-
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag: Standard
Manufacture - End Year
2015
Hitch Type
Three-point
Hitch Category
Category II
Hitch Position
Rear
Hitch Capacity (lb)
3417.2 lbs
Operator Station Type
Two-post folding ROPS or Cab with air-conditioning (optional)
Starter Type
Electric
Brake Type
Wet disc
Hydraulic System Type
Open center tandem pump
