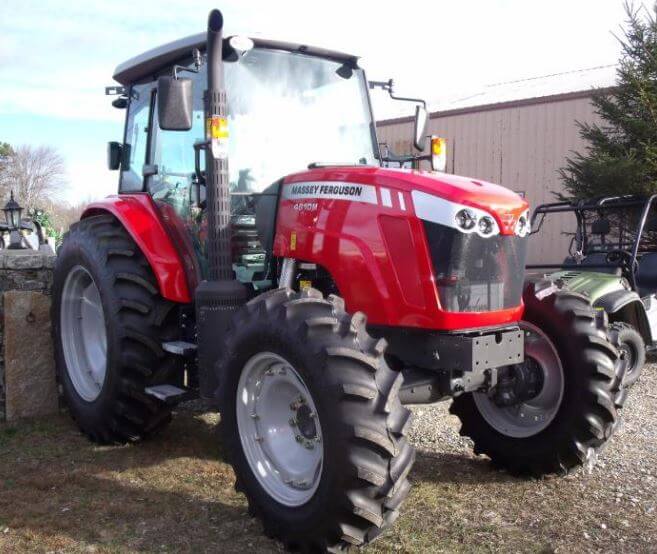

Massey Ferguson 4607M

Last Updated: June 2024

Overview

The Massey Ferguson 4607M is a utility tractor that belongs to the 4600M Series and has been in production since 2016. Designed with a 4x2 2WD chassis, it features a power steering system and a partially synchronized transmission with 12 forward and reverse gears. The heart of this tractor is a 3-cylinder AGCO Power intercooled turbocharged diesel engine with a 201.4 cubic inch displacement and an engine rated RPM of 2200, delivering a power output of 70.1 hp and a maximum power of 74 hp. The cooling system is liquid-based, ensuring optimal temperature control during operation. This model comes with a Category 2 hitch and has a lifting capacity of 3307 lbs at 24 inches behind the lift points. It provides an open center hydraulic system, gear-type single pump with a flow capacity of 17.5 gal/min, and PTO options with electro-hydraulic engagement, featuring speeds of 540 rpm and 1000 rpm. The physical dimensions place the tractor at a length of 150.1 inches, a width of 80.5 inches and a height that varies depending on the presence of ROPS (104.3 in) or a cab (100.3 in). Depending on the configuration, the weight of the tractor ranges from 6680 to 7087 lbs. The versatility and power of the 4607M make it suitable for a wide range of agricultural tasks.
Show more...

Key Specifications

Category: Utility

Power Output: 70.1

Transmission: Partially synchronized

Operating Weight: 4WD ROPS Weight: 6680 | 4WD Cab Weight: 7087

Lift Capacity: 3307 lbs @ 24 inches

Massey Ferguson 4607M vs. Similar Tractors

Power Output
Average
Greater than 64% of similar tractors.
Hitch Capacity
Excellent
Greater than 95% of similar tractors.
Operating Weight
Excellent
Greater than 96% of similar tractors.

Technical Specifications

Engine

Manufacturer
AGCO Power
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
-
Induction Type
Intercooled turbocharged
Cylinders
3
Displacement (ci)
201.4
Bore (in)
4.252
Stroke (in)
4.724
Rated RPM
2200
Power Output (hp)
70.1

Transmission

Type
Partially synchronized
Forward Gears
12
Reverse Gears
12
Total Gears
-

Dimensions

Length (in)
150.1
Width (in)
80.5
Height (in)
Height (ROPS): 104.3 | Height (cab): 100.3
Operating Weight (lb)
4WD ROPS Weight: 6680 | 4WD Cab Weight: 7087

Power Take-Off (PTO)

PTO Type
Electro-hydraulic engagement
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
1000
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
-
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 2
Hitch Position
-
Hitch Capacity (lb)
3307 lbs @ 24 inches
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open Center
