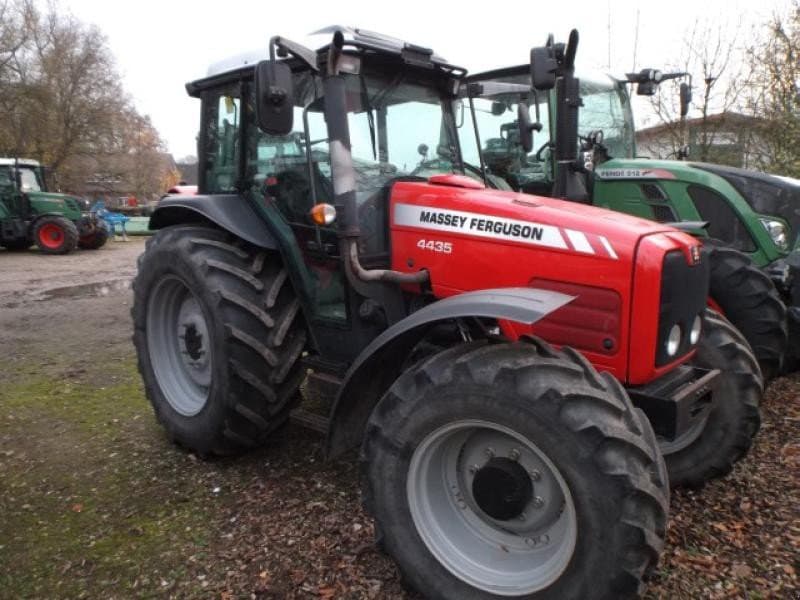

Massey Ferguson 4435

Last Updated: June 2024

Overview

The Massey Ferguson 4435 is a utility tractor that was manufactured by Massey Ferguson, a part of AGCO, from 2004 to 2011. It comes in both 2WD and 4WD models, with a corresponding variation in wheelbase — 88.2 inches for the 2WD version and 94.1 inches for the 4WD version. This tractor is powered by a 73.1 hp SISU 33DTA 3-cylinder turbocharged intercooled diesel engine, which has a displacement of 201.4 cubic inches and operates at a rated RPM of 2270. With a 12-speed mechanical shuttle transmission, dry disc clutch, and power steering, this tractor is designed to handle a variety of tasks. The standard ag tires are sized 10.00-16 for the front of the 2WD model and 13.6R24 for the front of the 4WD model, with 16.9R34 rear tires on both models. It has an electric starter and a cab operator station. The tractor’s physical dimensions include a length of up to 159.8 inches, width of 84.3 inches, and a cab height of 104.7 inches.
Show more...

Key Specifications

Category: Utility

Power Output: 73.1

Transmission: Mechanical Shuttle

Drive Type: 2WD / 4WD

Fuel Type: Diesel

Massey Ferguson 4435 vs. Similar Tractors

Power Output
Average
Greater than 66% of similar tractors.

Technical Specifications

Engine

Manufacturer
SISU
Model
33DTA
Cooling Type
Liquid
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged Intercooled
Cylinders
3
Displacement (ci)
201.4
Bore (in)
4.25
Stroke (in)
4.72
Rated RPM
2270
Power Output (hp)
73.1

Transmission

Type
Mechanical Shuttle
Forward Gears
12
Reverse Gears
12
Total Gears
-

Dimensions

Length (in)
155.9 for 2WD / 159.8 for 4WD
Width (in)
84.3
Height (in)
104.7 for standard 2WD / Unknown for 4WD
Operating Weight (lb)
-

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD / 4x4 MFWD 4WD
Drive Type
2WD / 4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
Unknown for 2WD / 24 for 4WD
Front Tire Width (in)
-
Rear Tire Diameter (in)
34
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
2011
Hitch Type
Category II
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
Cab
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
