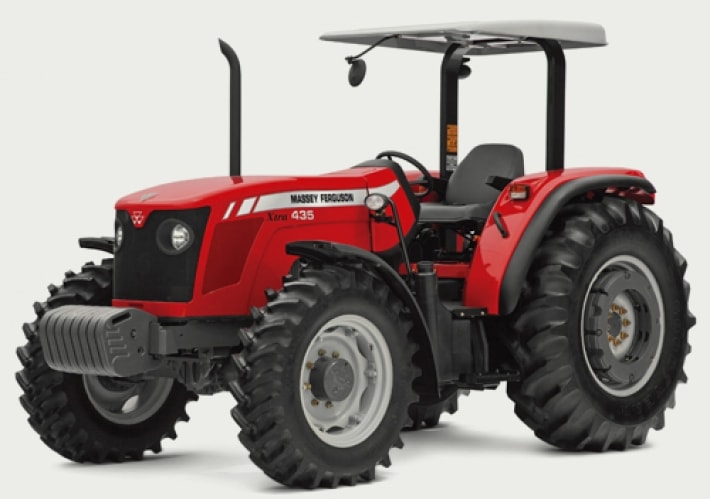

Massey Ferguson 435

Last Updated: June 2024

Overview

The Massey Ferguson 435 is a utility tractor that was manufactured between 2001 and 2010. It comes equipped with a 72 hp (53.7 kW) Perkins P4000 engine with a displacement of 244.1 ci. The tractor has a hydrostatic power steering system and a choice between sliding spur gear and synchromesh transmissions, the latter providing 12 forward and 4 reverse gears. It features a 4x2 2WD chassis and standard agricultural tires with front measures of 7.50-16 and rear measures of 18.4-30 for the 2WD option. With an operating weight range between 5710 to 6327 pounds and a wheelbase of 84.3 inches for the 2WD variant, the tractor is substantial in size and weight for various farming tasks. The tractor's height is either 101.6 inches with ROPS or 96.1 inches to the top of the exhaust, and the lengths are 156.7 inches for the 2WD model and 162.6 inches for the 4WD model. This model is known for its reliability and versatility in a range of agricultural tasks.
Show more...

Key Specifications

Category: Utility

Power Output: 72

Transmission: Sliding spur gear / Synchromesh

Drive Type: 2WD

Operating Weight: 5710 (2WD) / 6327 (4WD)

Fuel Type: Diesel

Massey Ferguson 435 vs. Similar Tractors

Power Output
Average
Greater than 65% of similar tractors.
Operating Weight
Excellent
Greater than 97% of similar tractors.

Technical Specifications

Engine

Manufacturer
Perkins
Model
P4000
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Direct injection
Cylinders
4
Displacement (ci)
244.1
Bore (in)
3.937
Stroke (in)
5
Rated RPM
2200
Power Output (hp)
72

Transmission

Type
Sliding spur gear / Synchromesh
Forward Gears
12
Reverse Gears
4
Total Gears
-

Dimensions

Length (in)
156.7 (2WD) / 162.6 (4WD)
Width (in)
-
Height (in)
101.6 (ROPS) / 96.1 (exhaust)
Operating Weight (lb)
5710 (2WD) / 6327 (4WD)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Standard (ag)
Manufacture - End Year
2010
Hitch Type
-
Hitch Category
Category 2
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
