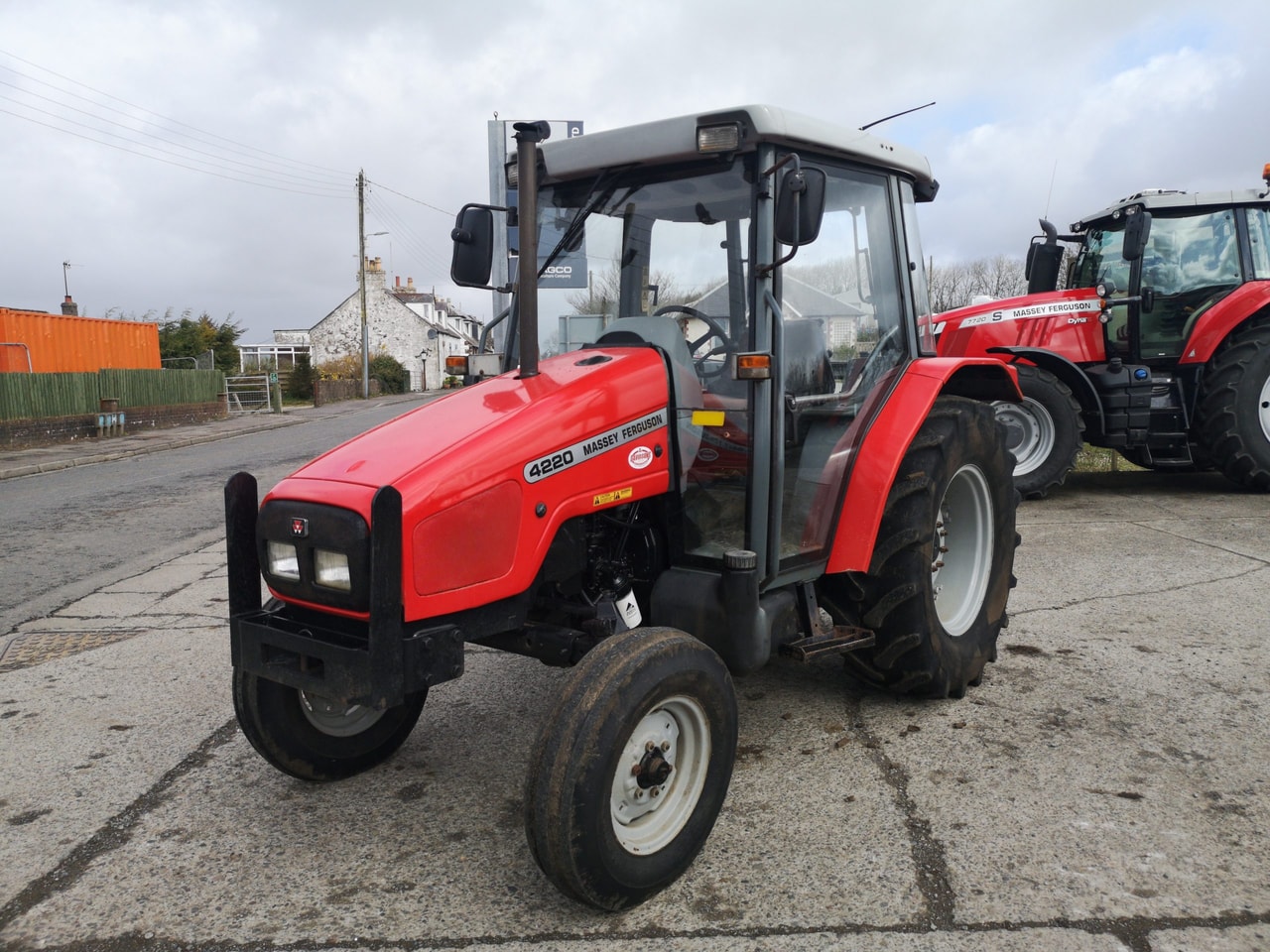

Massey Ferguson 4220

Last Updated: June 2024

Overview

The Massey Ferguson 4220 is a versatile utility tractor that was manufactured between 1997 and 2001. Equipped with a robust Perkins 903T turbocharged diesel engine, it delivers 60 horsepower which is adequate for various mid-size farming tasks. The tractor utilizes a synchromesh transmission with a mechanical shuttle, providing 12 forward and 4 reverse gears, enabling operators to match speeds efficiently to the job at hand. The 2WD model has a wheelbase of 83.9 inches, while the 4WD version extends to 87.8 inches, allowing for better stability and maneuverability. In terms of dimensions, the tractor measures 147.2 inches in length, has a width of 74.8 inches, and a height, to the top of the cab, of 94.1 inches. Appropriate tire choices for agricultural purposes are fitted standard, with different sizes for 2WD and 4WD configurations. Coupled with a comfortable cab and an electrical starting system, the MF 4220 is designed to meet the needs of medium-duty applications on the farm.
Show more...

Key Specifications

Category: Utility

Power Output: 60

Transmission: Synchromesh with mechanical shuttle

Drive Type: 2WD

Operating Weight: 5258 (2WD), 5809 (4WD)

Fuel Type: Diesel

Massey Ferguson 4220 vs. Similar Tractors

Power Output
Average
Greater than 58% of similar tractors.
Operating Weight
Above Average
Greater than 77% of similar tractors.

Technical Specifications

Engine

Manufacturer
Perkins
Model
903T
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
3
Displacement (ci)
164.8
Bore (in)
3.74
Stroke (in)
5
Rated RPM
2250
Power Output (hp)
60

Transmission

Type
Synchromesh with mechanical shuttle
Forward Gears
12
Reverse Gears
4
Total Gears
-

Dimensions

Length (in)
147.2
Width (in)
74.8
Height (in)
94.1 (cab)
Operating Weight (lb)
5258 (2WD), 5809 (4WD)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Power
Coolant Capacity (qts)
10.8
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
2001
Hitch Type
Three-Point Hitch
Hitch Category
II/I
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
Cab
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
